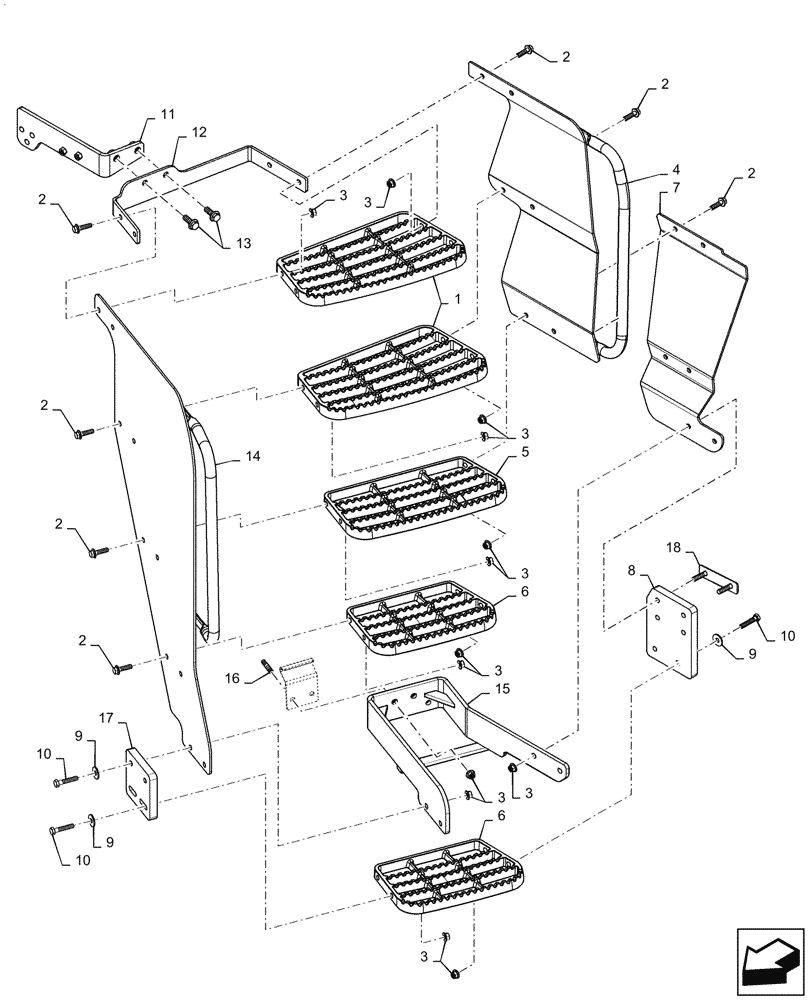

Запчасти Case IH MAGNUM 310 (90.118.AE[02]) - LEFT SIDE CAB STEPS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87310397

STEP

Top Two

2шт.

2

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

16шт.

3

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

24шт.

4

47633874

SUPPORT

Riser Step Handle RH

1шт.

5

47589577

STEP

Cast Aluminum W/ Finish Middle

1шт.

6

47589584

STEP

Cast Aluminum W/ Finish Lower

2шт.

7

47609681

RISER

Front Steps, Bottom RH

1шт.

8

87486039

RISER

Riser, Flexible Step

1шт.

9

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

6шт.

10

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

6шт.

11

47663968

BRACKET

Rear Upper Support

1шт.

12

47381380

BRACKET

Front Upper Support

1шт.

13

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

Bolt, Hex Flg Hd M12X35 8.8 Znd Nh9670288

2шт.

14

47675043

RISER

Riser Step Handle Front

1шт.

15

47726075

BRACKET

Lower Step Support

1шт.

16

86533693

STUD,M10 x 47, Cl 8.8

2шт.

17

47422639

RISER

Flexible Step

1шт.

18

47713715

PLATE

1шт.
