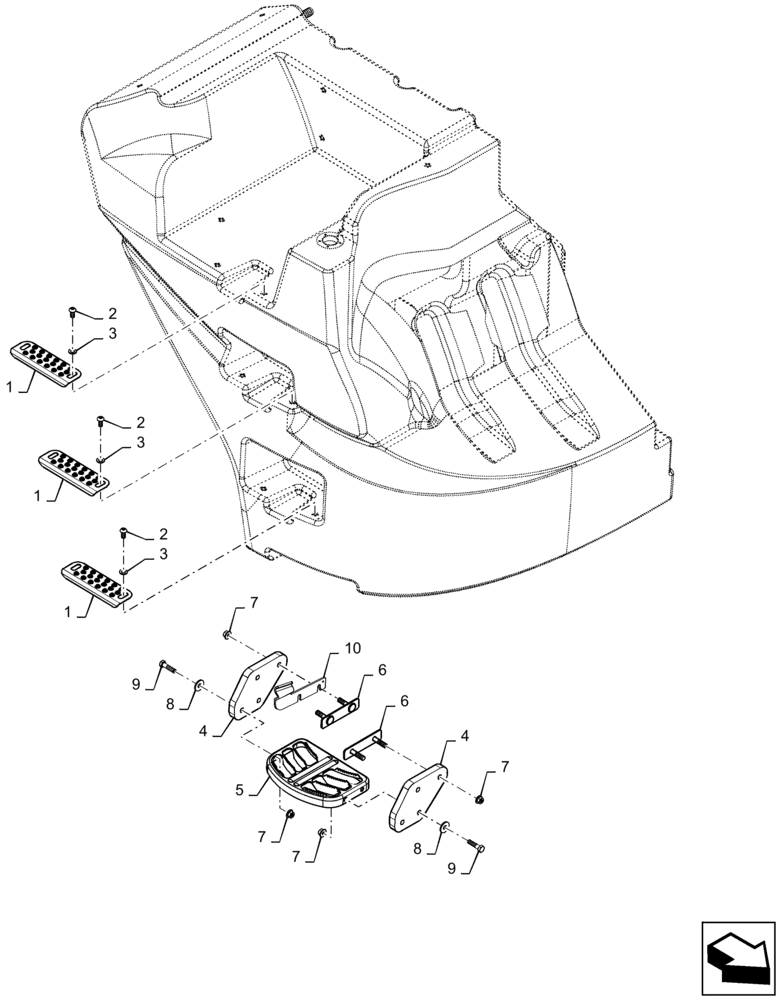

Запчасти Case IH MAGNUM 310 (90.118.AE[01]) - RIGHT SIDE CAB STEPS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47488875

STEP

Non - Slip Step

3шт.

2

84405128

HEX SOC SCREW,M10 x 1.5 x 20mm, Cl 10.9

6шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

4

47436634

RISER

Flexible Step

2шт.

5

84179556

STEP

Tread

1шт.

6

47379261

PLATE

Step

2шт.

7

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

8шт.

8

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

4шт.

9

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

4шт.

10

47809746

BRACKET

Fuel Tank Hold Down

1шт.
