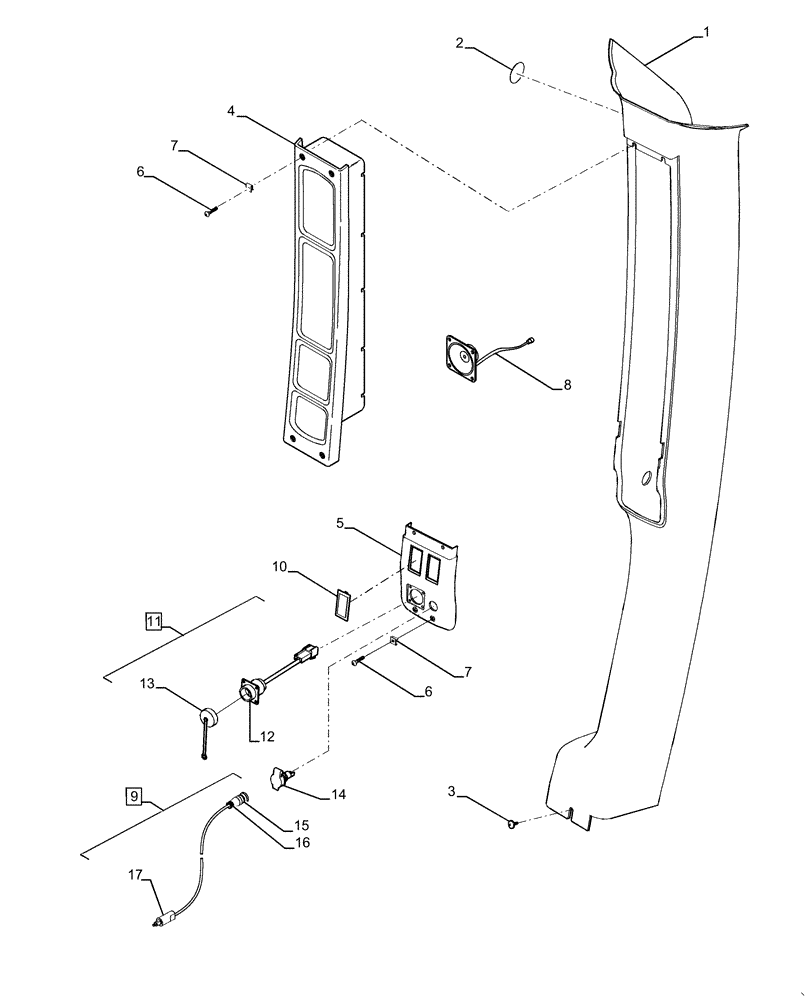

Запчасти Case IH MAGNUM 310 (55.408.CA[01]) - A-POST COVER, INSTRUMENT CLUSTER (55) - ELECTRICAL SYSTEMS

1

444547A1

TRIM PANEL

RH A Post

1шт.

2

376597A2

DECAL

Hole Cover

2шт.

3

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

1шт.

4

84529975

MODULE

Without Software

1шт.

5

358804A1

BEZEL

RH Lower A Post

1шт.

6

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

6шт.

7

177269A1

SPRING NUT,M4.2

6шт.

8

87335023

SPEAKER

1шт.

9

324847A2

HARNESS

Monitor Incl 15 - 17

1шт.

10

245918C1

LENS

Blanking

2шт.

11

227739A2

POWER SOCKET

Auxiliary Power, Incl 12 - 14

1шт.

12

225164C1

ELEC CONNECTOR

Outlet, Socket, 3 Pole

1шт.

13

225162C1

PLUG

Dust

1шт.

14

300655A1

POWER SOCKET

Outlet, Single Pole

1шт.

15

247723A1

ELEC CONNECTOR,Male, 4 Pin

Implement Monitor

1шт.

16

247725A1

ELEC CONNECTOR

1шт.

17

300656A1

POWER SOCKET,1 Pole

Radar

1шт.
