Запчасти Case IH MAGNUM 310 (55.100.BZ[01]) - WIRE HARNESS, REAR (55) - ELECTRICAL SYSTEMS

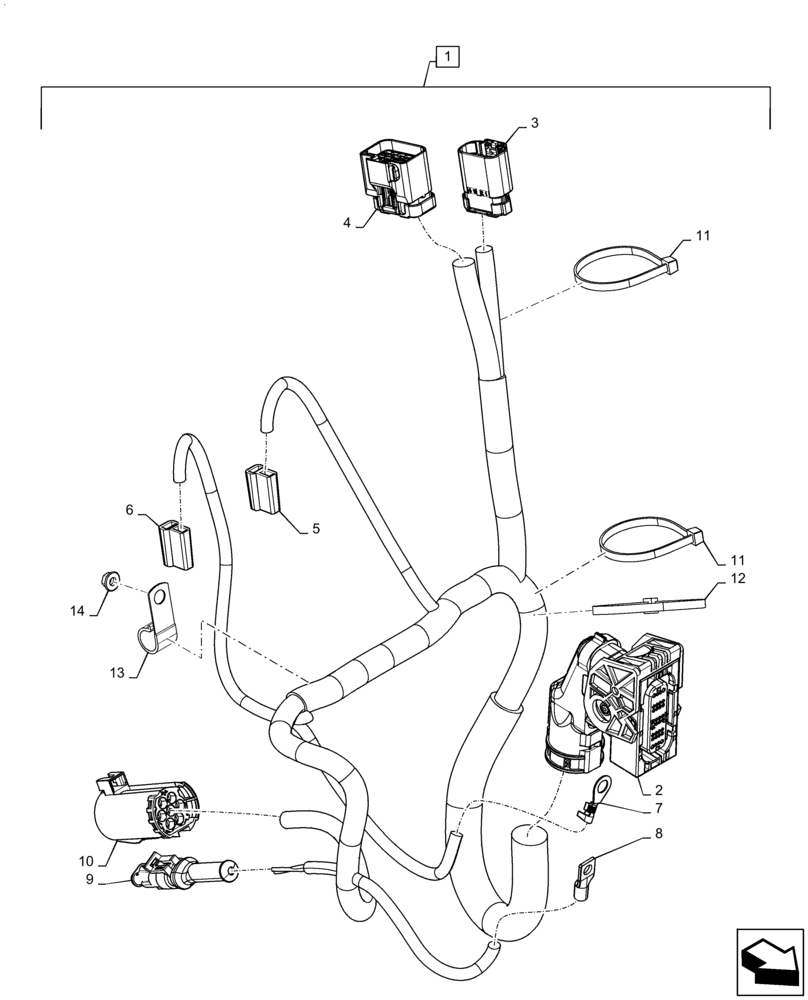

Схема запчастей Case IH MAGNUM 310 - (55.100.BZ[01]) - WIRE HARNESS, REAR (55) - ELECTRICAL SYSTEMS
8
14
4
11
10
13
1
5
2
9
12
6
7
3
11

Артикул

Название

Примечание

Количество

1

47722046

WIRE HARNESS

Rear Frame, Incl 2 - 10

1шт.

2

84254836

ELEC CONNECTOR

X-025 To Cab Harness

1шт.

2

84555419

WIRE CONNECTOR

Backshell, NW22, Medium

1шт.

2

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Size 20

16шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Size 16

1шт.

2

87694143

TERMINAL CONNECTOR,Female, 0.75 - 2 mm2

Size 16

1шт.

2

84807680

PLUG

Sealing, Size 20

12шт.

2

47519770

PLUG

Sealing, Size 16

2шт.

3

87382916

ELEC CONNECTOR

X-1021 To Fender

1шт.

3

84395356

TERMINAL,Female, 2.8mm, 18-20

2.8mm Female

4шт.

4

87382924

ELEC CONNECTOR,Female, 10 Cavities

X-1020 To Fender Harness

1шт.

4

84395356

TERMINAL,Female, 2.8mm, 18-20

2.8mm Female

8шт.

4

84395358

TERMINAL

2.8mm Female

2шт.

5

87693325

ELEC CONNECTOR,Female, 2 Cavities

X-212 Front Washer Pump

1шт.

5

87709400

ELEC. TERMINAL PIN

56 Series Female

2шт.

6

87693325

ELEC CONNECTOR,Female, 2 Cavities

X-213 Rear Washer Pump

1шт.

6

87709400

ELEC. TERMINAL PIN

56 Series Female

2шт.

7

NSS

NOT SOLD SEPARAT

TERMINAL, X-677 Ground LH Side Rear Cab Outside, Incl in 1

1шт.

8

47643702

TERMINAL

X-006C Sw B+ Pwr Stud

1шт.

9

82012083

WIRE CONNECTOR,Female

X-1862 Air Brake Dryer

1шт.

9

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Mini Mic

2шт.

9

82012084

SEAL,1.4mm ID

1.5 Single Wire

2шт.

9

82035827

ELEC CONNECTOR,Female, 2-3 Cavities

2 Way

1шт.

9

84364895

BOOT

Rubber, 2-Way

1шт.

10

87698223

MULTIPOLE CONNECTOR,Male, 7 Pole

X-147 Trailer Connector

1шт.

10

87687620

TERMINAL

Male Metri-Pack .280

4шт.

10

87697688

ELEC CONNECTOR

Male Metri-Pack .280

3шт.

10

84286327

SEAL

Green, 1-Way

5шт.

10

87680710

SEAL

Gray, 1-Way

2шт.

10

87704925

ELEC CONNECTOR

Secondary Lock, Light Gray

1шт.

11

86566989

CABLE TIE,208mm L

2шт.

12

A169433

CABLE TIE,304.8mm L

1шт.

13

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

1шт.

14

825-2405

FLANGE NUT,M5 x .8, Flg, Cl 8

1шт.

Выбрано товаров: 34
