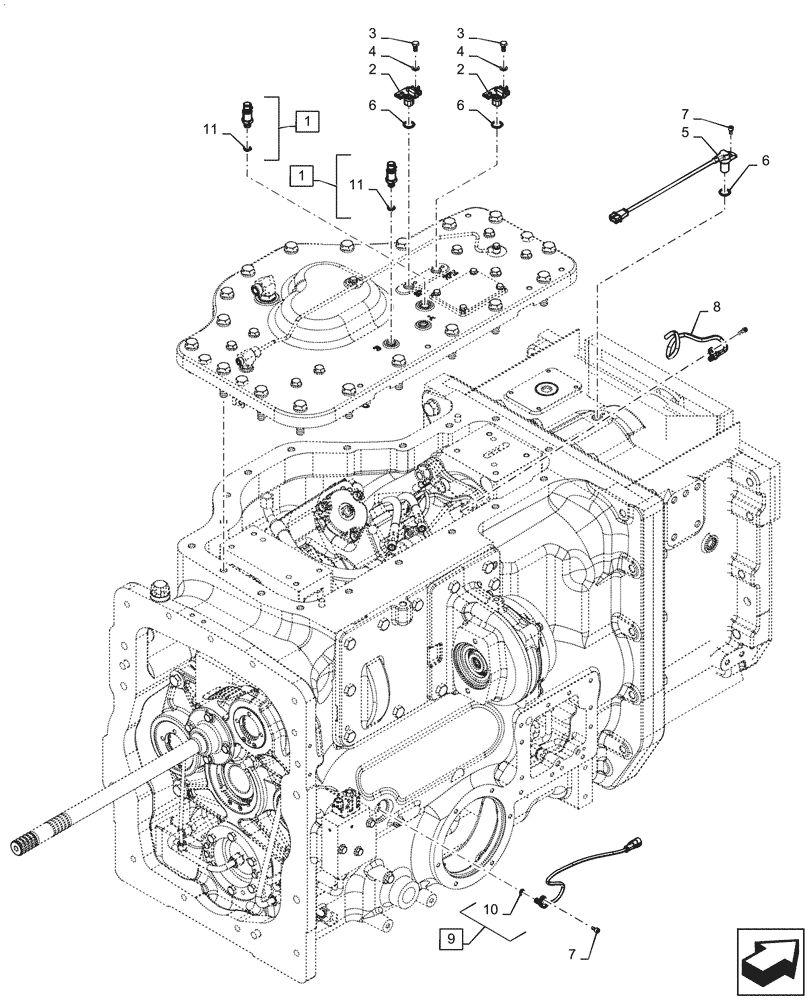

Запчасти Case IH MAGNUM 310 (55.020.AB[01]) - VAR- 429334, 429335 - SENSORS, TRANSMISSION, CVT (55) - ELECTRICAL SYSTEMS

1

84423987

SENSOR

Pressure, Incl 11

2шт.

2

87673374

ELEC CONNECTOR,2 Receptacle, 90 Degree Module, 2 Pin

2шт.

3

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

5

47766973

SENSOR

Speed, Transmission Input

1шт.

6

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

3шт.

7

63582

HEX SOC SCREW,M6 x 12mm, Cl 8.8

2шт.

8

47539773

SENSOR

Speed, Hydrostatic Pump

1шт.

9

84243033

SENSOR

Speed, Transmission Output, Incl 10

1шт.

10

87492478

O-RING,8.56mm ID x 1.07mm Width

1шт.

11

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.
