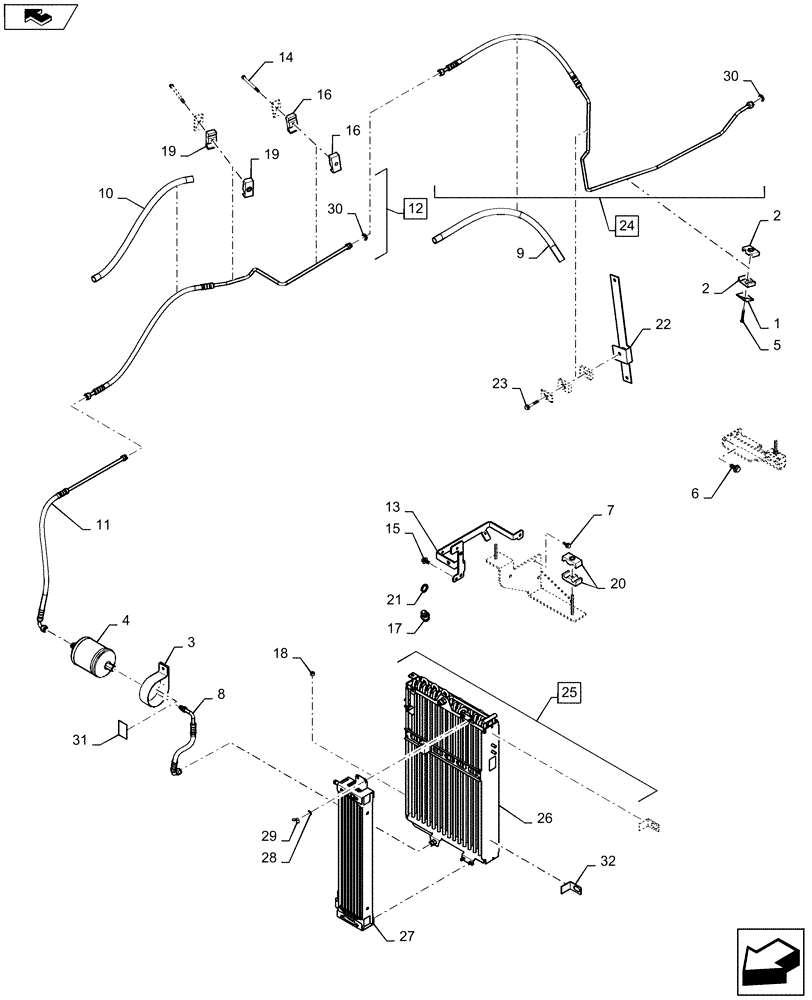

Запчасти Case IH MAGNUM 310 (50.200.AB[02]) - AIR CONDITIONING, CONDENSER - CVT (50) - CAB CLIMATE CONTROL

1

384870A1

PLATE

Hose Clamp Cover

2шт.

2

428385A1

SPECIAL CLAMP

Hyd Tube

2шт.

3

87361944

CLAMP

Reciever/Dryer

1шт.

4

295006A1

RECEIVER-DRYER

1шт.

5

47612525

SELF-TAP SCREW,Hex, M6.3 x 1.8 x 50mm

M6.3x50

1шт.

6

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

7

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

8

47464786

TUBE

Condenser to Drier

1шт.

9

87442593

CONDUIT

Pump to Cooler

1шт.

10

84292621

CONDUIT

Pump to Cooler

1шт.

11

47460967

A/C HOSE

Liquid, Front

1шт.

12

84351339

A/C HOSE

Liquid Chassis, Incl 30

1шт.

13

84332247

BRACKET

Engine Harness Support

1шт.

14

814-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

1шт.

15

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

16

410573A1

CLAMP

Tube .5 x .38 OD

1шт.

17

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

1шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

19

255212A1

CLAMP

3/4 X 3/8

1шт.

20

1546026C1

CLAMP

Twin 5 - 8"

2шт.

21

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

22

84278924

BRACKET

Tube Support

1шт.

23

844-8050

BOLT,M8 x 1.25 x 50mm, Cl 8.8

1шт.

24

84351344

A/C HOSE

Liquid Chassis, Incl 30

1шт.

25

47459807

COOLER ASSY.

Condenser and Fuel; Incl 26 - 29

1шт.

26

47459808

CONDENSER

1шт.

27

84384558

FUEL COOLER

1шт.

28

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

29

10102001

WING NUT,Wing Nut, M8 x 1.25

Wing M8

4шт.

30

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

2шт.

31

321663A1

SLIDING PAD

Velcro Glide Tubes

1шт.

32

47403800

BRACKET

Tether

1шт.
