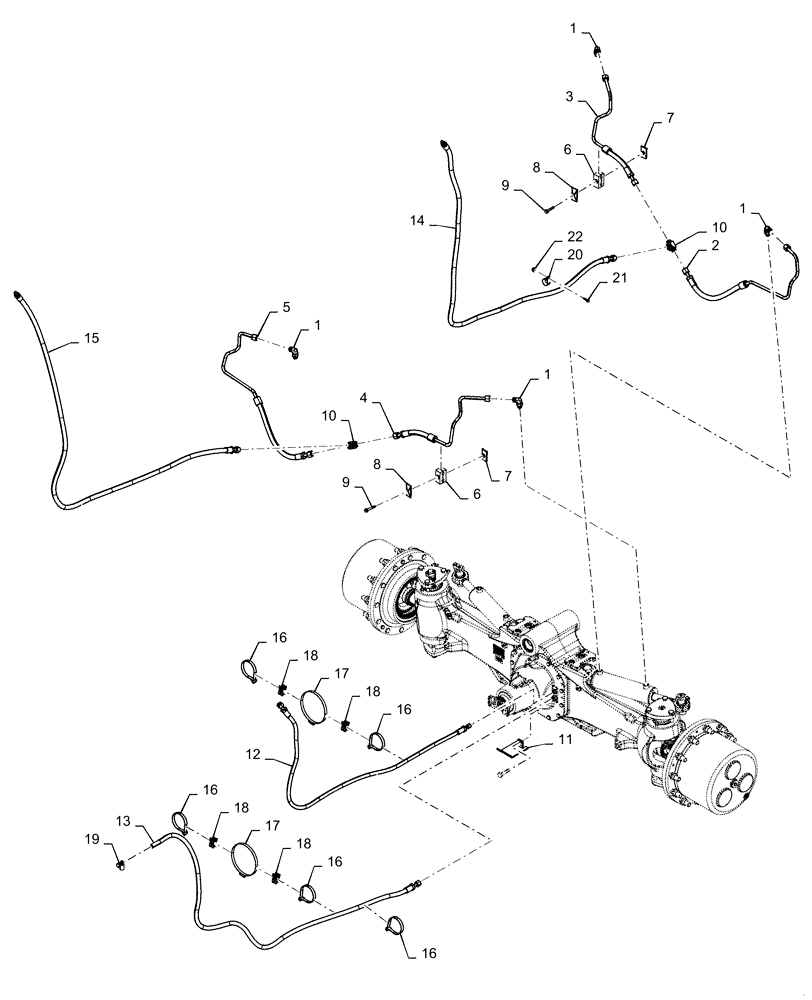

Запчасти Case IH MAGNUM 310 (41.200.AT[06]) - VAR - 429380 PLUS 429334 OR 429335 - HYDRAULIC STEERING SYSTEM CL 5 HD (41) - STEERING

1

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

4шт.

2

47618140

TUBE

RH Cylinder Base Steering

1шт.

3

47618146

HYD TUBE

LH Cylinder Rod Steering

1шт.

4

47618141

TUBE

RH Cylinder Rod Steering

1шт.

5

47618145

HYD TUBE

LH Cylinder Base Steering

1шт.

6

87000149

CLAMP

2 Hole 12.7-12.7 Mm Dia Ribbed

2шт.

7

384871A1

PLATE

Hose Clamp Weld

2шт.

8

1347127C1

PLATE

Tube Clamp

2шт.

9

844-8050

BOLT,M8 x 1.25 x 50mm, Cl 8.8

2шт.

10

701-409

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

2шт.

11

47468806

SHIELD

CL5 HYD Steering

1шт.

12

47398724

HOSE,9.53mm ID x 1800mm L

Front Axle Diff Lock Supply CVT

1шт.

13

47577610

HOSE

Front Diff Lock Return CVT

1шт.

14

47727139

HYDRAULIC HOSE

Steering LH/RH STC

1шт.

15

84362821

HOSE,12.7mm ID x 2452mm L, SAE 100R17

Steering RH STC

1шт.

16

86991007

CABLE TIE,509mm L

20 X .28 IN

6шт.

17

214-14104

HOSE CLAMP,155.45mm - 177.8mm

2шт.

18

86991001

SPACER

Dual Swivel Saddle

4шт.

19

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.

20

515-22317

CLAMP,1 1/4", Insul, 5/16" Bolt

2шт.

21

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

22

825-5146

SERRATED NUT,M6, Flg Ser

2шт.
