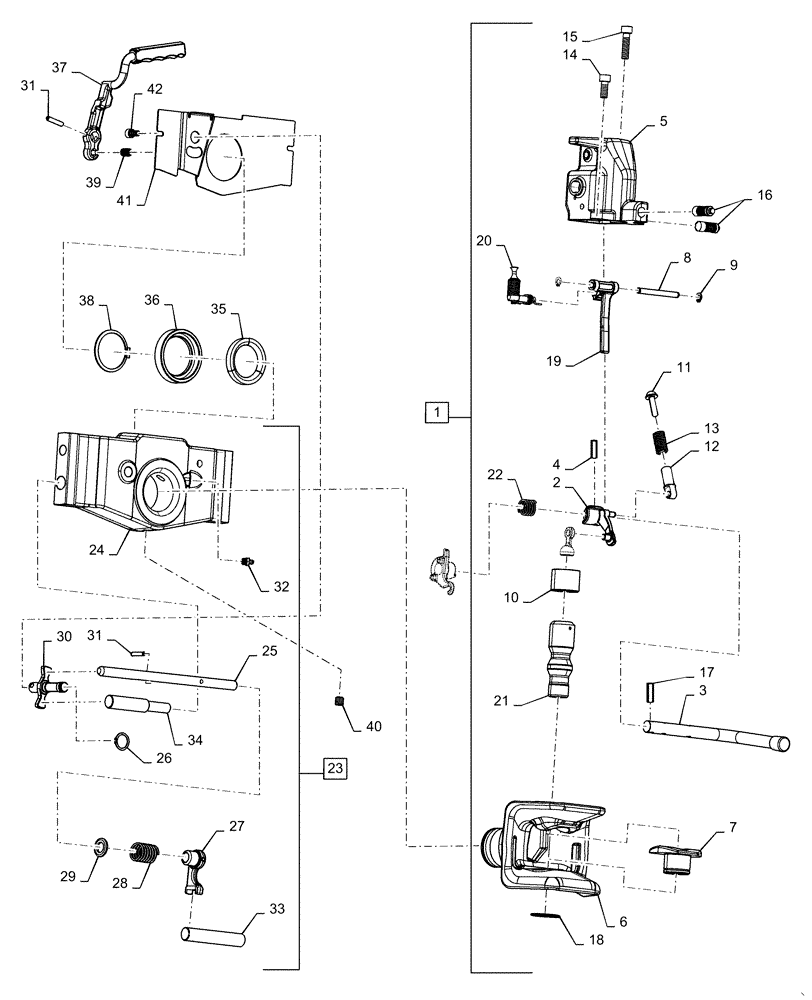

Запчасти Case IH MAGNUM 310 (37.100.AF[03]) - VAR - 429394 - TRAILER HITCH, AUTO CLEVIS, 38 MM, GERMANY ONLY (CBM) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87687130

CLEVIS

Clevis Assembly 38mm Incl 2 - 22

1шт.

2

87576932

PIN

Internal Upper Level

1шт.

3

87576927

LEVER

Opening External Lever

1шт.

4

86639256

PIN,8mm OD x 26mm L, Coiled

2шт.

5

87576926

TRAILER HITCH CAT. D

Cover

1шт.

6

87576911

HOOK

EEC Automatic Clevis

1шт.

7

87431179

BUSHING

Bushing, Clevis Pin

1шт.

8

87576924

SHAFT

Shaft

1шт.

9

9990741

SNAP RING,M8, Ext

2шт.

10

87576935

BUSHING

Bushing

1шт.

11

87576921

PIN

Spheripal Head Pin

1шт.

12

87576912

PIN

Spring Bracket Pin

1шт.

13

87576920

SPRING

Head Pin Spring

1шт.

14

120052

HEX SOC SCREW,M10 x 25mm, Cl 8.8

1шт.

15

14420421

HEX SOC SCREW,M10 x 40mm, Cl 8.8, Full Thd

1шт.

16

87431645

PIN ASSY.

Safety Pin Assembly

2шт.

17

738-3422

PIN,M4 x 22, Coiled

2шт.

18

800-1140

SNAP RING,M40, Ext

1шт.

19

87576922

SENSOR

Automatic CEE Hook

1шт.

20

87576923

ROD-TIP

Runner Assembly

1шт.

21

87431177

PIN ASSY.,38mm OD x 116mm L

German Automatic 38mm

1шт.

22

87576936

SPRING

External Spring

1шт.

23

450612A1

FRAME ASSY

Incl 24 - 34

1шт.

24

450613A1

FRAME

Cat 3 Slider

1шт.

25

86984635

PIN

Long Upper

1шт.

26

86990332

SNAP RING,M60, Ext

1шт.

27

86984638

PLATE

Spring Guide

1шт.

28

86984626

COMPRESSION SPRING

Latch Compression

1шт.

29

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

30

451837A1

PIN

Latch Pivot

1шт.

31

838-3630

PIN,M6 x 30, Coiled

2шт.

32

1974039C1

FITTING

Lube

1шт.

33

86984640

PIN

RH Latch Lower

1шт.

34

86984632

PIN

LH Latch Lower

1шт.

35

86985916

COLLAR

Split Assembly

1шт.

36

86988005

BUSHING

T-Hitch Retaining

1шт.

37

86984629

LEVER

Unlocking Slider

1шт.

38

800-1160

SNAP RING,M60, External

1шт.

39

86988211

SPRING

Slider Lever

1шт.

40

877-31212

SET SCREW,Hex Skt M12 x 12mm, Flat Pt

1шт.

41

86988189

PLATE

Slider Cover

1шт.

42

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

2шт.
