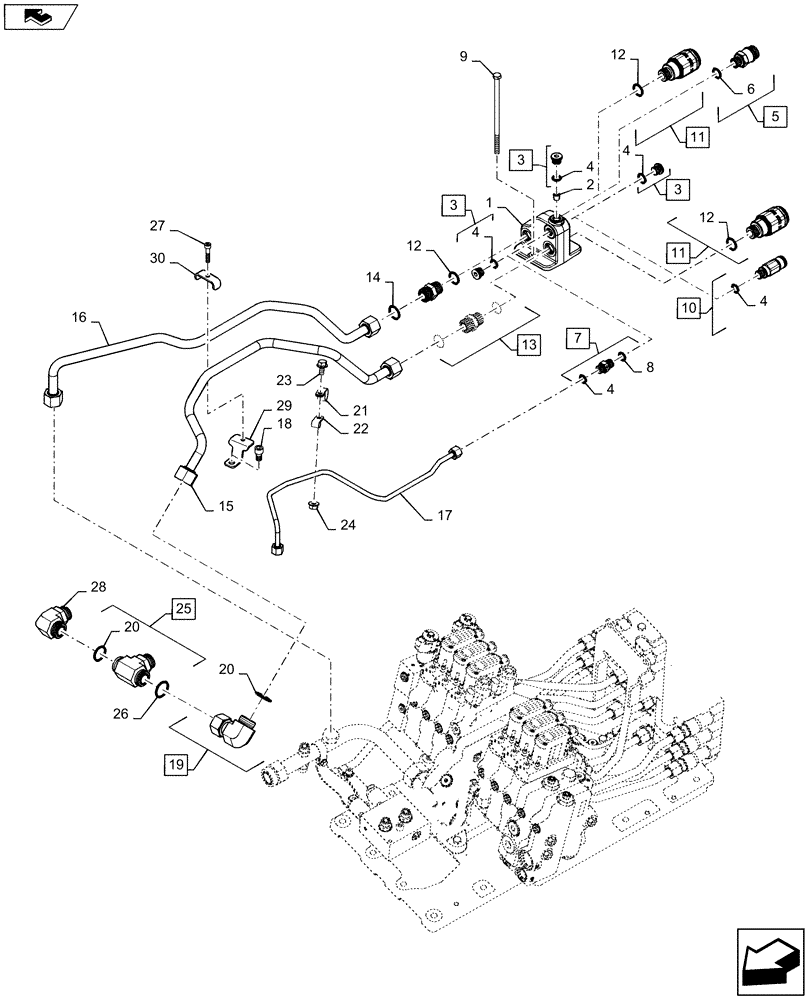

Запчасти Case IH MAGNUM 310 (35.204.AX[01]) - HYDRAULIC POWER BEYOND, MOTOR RETURN VALVE (35) - HYDRAULIC SYSTEMS

1

387929A1

VALVE

Mount Coupler Power Beyond

1шт.

2

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

3

221578A1

PLUG,M18 x 1.5 ORB

Incl 4

3шт.

4

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

5шт.

5

84576610

COUPLING

Female, Incl 6

1шт.

6

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

7

411712A1

VALVE, CHECK

Load Sense Isolation, Incl 4, 8

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

814-10205

BOLT,Hex, M10 x 1.5 x 205mm, Cl 8.8

2шт.

10

294603A1

BODY

1/4 Coupler, Incl 4

1шт.

11

298291A1

COUPLING, QUICK, FEM,Assembly, 3/4"

3/4 Coupler, Incl 12

2шт.

12

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

4шт.

13

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 12, 14

2шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

15

84532779

TUBE

Power Beyond Supply, W/O Front Hitch

1шт.

15

47435198

HYD TUBE

Power Beyond Supply, W/ Front Hitch

1шт.

16

84532778

TUBE

Hydraulic Motor Return; Standard

1шт.

16

84565899

TUBE

Hydraulic Motor Return; HD

1шт.

17

47488326

HYD TUBE

Power Beyond Load Sense

1шт.

18

9837786

HEX SOC SCREW,M12 x 20mm, Cl 8.8, Full Thd

2шт.

19

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Incl 20

1шт.

20

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

3шт.

21

515-21190

CLAMP,3/4", Insul, 1/4" Bolt

1шт.

22

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

1шт.

23

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

24

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

25

700-404

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

W/ Trailer Brake Incl 20, 26

1шт.

26

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

27

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

1шт.

28

413993A1

90 ELBOW

90 ADJ 25MM ORFS-ORB M33 W/O Trailer Brake Incl 20, 26

1шт.

29

84376969

BRACKET

Power Beyond

1шт.

30

84395100

CLAMP

Power Beyond Tube

1шт.
