Запчасти Case IH MAGNUM 310 (35.124.AE[03]) - TOP LINK, HYDRAULIC, CAT 4, CLAW, HD REAR AXLE (35) - HYDRAULIC SYSTEMS

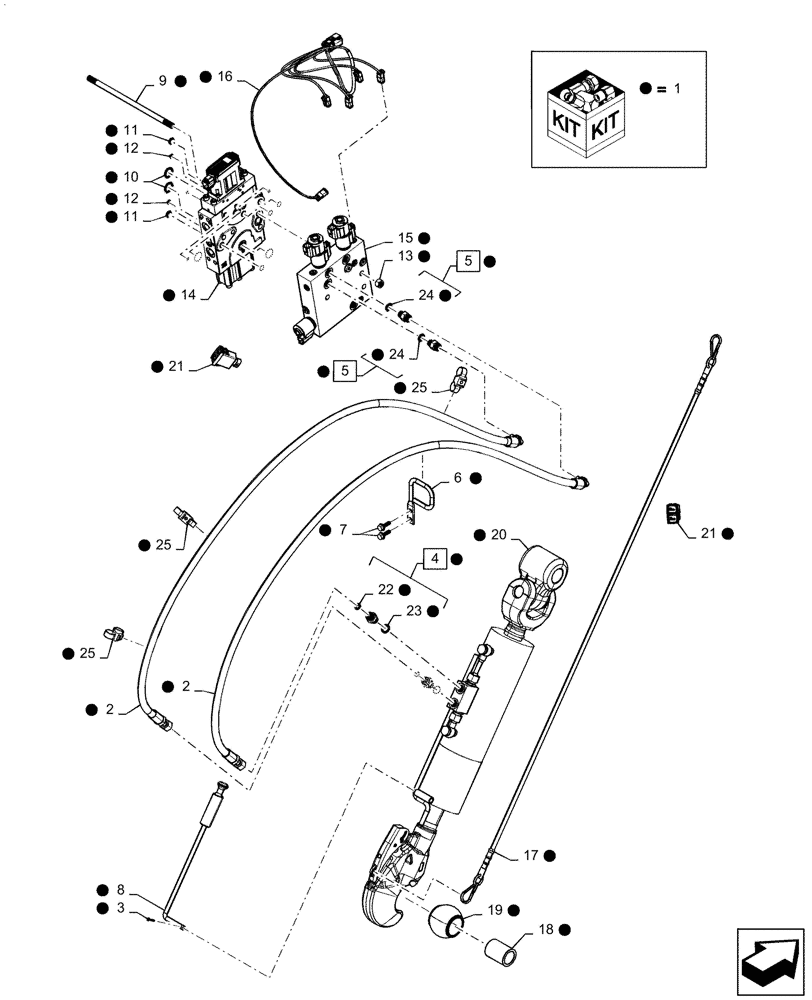

Схема запчастей Case IH MAGNUM 310 - (35.124.AE[03]) - TOP LINK, HYDRAULIC, CAT 4, CLAW, HD REAR AXLE (35) - HYDRAULIC SYSTEMS
11
18
1
1
12
2
1
1
4
1
7
1
5
12
1
21
2
25
3
25
1
1
1
24
1
10
1
21
15
1
8
1
16
24
1
25
1
6
22
1
1
13
1
1
23
5
1
1
1
1
9
20
17
1
1
14
1
11
1
1
1
1
1
1
19
1

Артикул

Название

Примечание

Количество

1

47480579

KIT

Hydraulic Top Link, Category 4, Claw, HD Rear Axle; Incl 2 - 25

1шт.

2

84362661

HOSE

Hyd Top Link

2шт.

3

130003

COTTER PIN,3mm OD x 30mm OAL

1шт.

4

87434646

UNION,M16 x 11/16" ORFS

Incl 22, 23

2шт.

5

87331073

HYD CONNECTOR,M14 x 1.5 Male ORB x -06 Fem STC

Incl 24

2шт.

6

84362663

GUIDE

Hyd Top Link Hoses

1шт.

7

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

8

87686002

LATCH

Hyd Top Link, Claw

1шт.

9

87604618

STUD,M12 x 1.75 x 185mm

4 Stack Remote Valve

3шт.

9

87664023

STUD,M12 x 1.75 x 230mm

5 Stack Remote Valve

3шт.

9

84129024

STUD,M12 x 1.75 x 280mm

6 Stack Remote Valve

3шт.

10

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

6шт.

11

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

8шт.

12

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

6шт.

13

829-1312

NUT,M12 x 1.75, Cl 10

3шт.

14

47595556

VALVE

Aux Main

1шт.

14

47595556R

REMAN-HYD VALVE

Reman Aux Main

1шт.

14

47595556C

CORE-VALVE HYD

Return Number

1шт.

15

47786964

HYDRAULIC VALVE

Top Link

1шт.

16

84427048

HARNESS

EDC Link

1шт.

17

1348080C1

CABLE,1500mm L

Upper Link Release

1шт.

18

87708029

BUSHING,32.7mm ID x 44.34mm OD x 60mm L

Cat 4 to Cat 3 Adapter

1шт.

19

47393854

BALL

Cat 4 Top Link, Claw

1шт.

20

47418635

UPPER LINK

Hydraulic, Cat 4 Claw, EU

1шт.

21

87454596

SWITCH

Remote, Top Link

2шт.

22

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

23

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

24

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

25

86991000

CLAMP

3шт.

Выбрано товаров: 29
