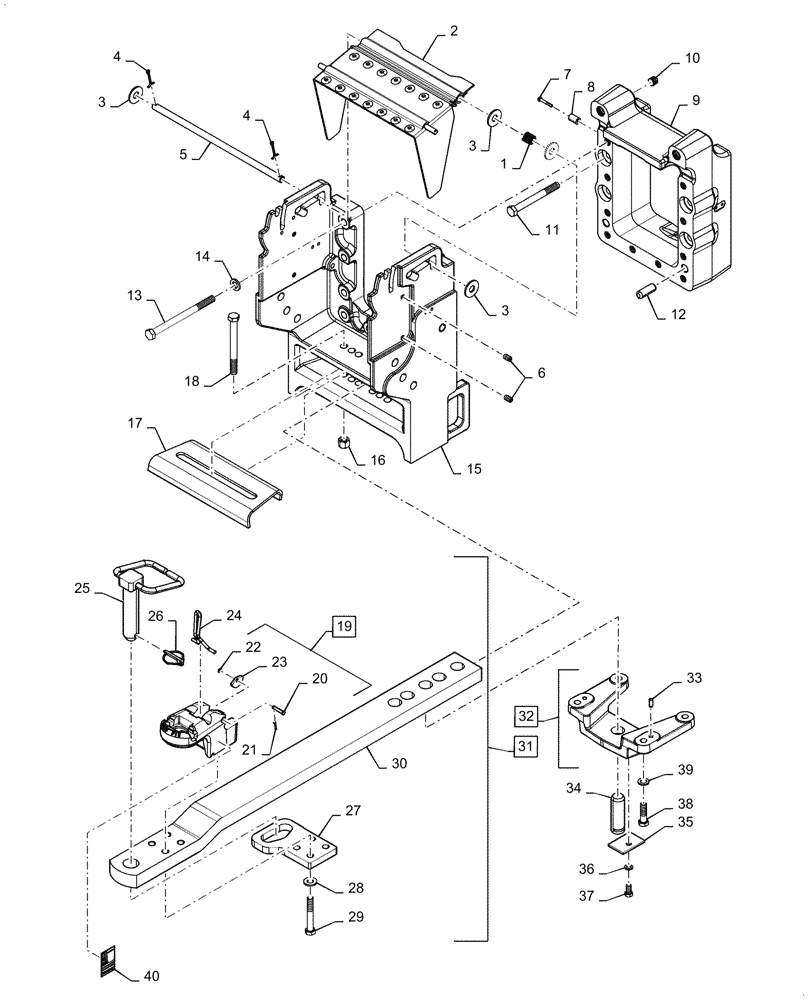

Запчасти Case IH MAGNUM 310 (37.100.AA[01]) - VAR - 429391 - DRAWBAR & HAMMERSTRAP, HIGH CAPACITY, CAT IV Invalid section

1

179657A2

SPRING

PTO Shield Pivot

1шт.

2

379252A2

SHIELD

PTO Top

1шт.

3

495-21069

WASHER,5/8"

4шт.

4

733-5040

COTTER PIN,M5 x 40

2шт.

5

225672A2

ROD

PTO Shield Pivot

1шт.

6

87681203

SET SCREW,Hex Skt, M12 x 20mm, Cl 8.8, Full Thd, Cup Pt

4шт.

7

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

4шт.

8

87352470

TUBE SPACER

Coupling Spillage Bottle Mounting

4шт.

9

47411636

BRACKET

Hitch Spacer

4шт.

10

305138A1

PLUG

Plastic

2шт.

11

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

4шт.

12

37-11232

DOWEL,3/4" x 2"

2шт.

13

84518951

BOLT,Hex, M16 x 210mm, Cl 10.9

10шт.

14

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

15

87712383

FRAME,Hitch

Drawbar Rear Support

1шт.

16

832-10416

NUT,M16 x 2, Cl 8

2шт.

17

238495A3

PLATE

Drawbar Wear

1шт.

18

827-16160

BOLT,Hex, M16 x 2 x 160mm, Cl 10.9

2шт.

19

87615031

STRAP

Hammerstrap, Incl 20 - 23

1шт.

20

87016625

CLEVIS PIN,3/8" x 2"

1шт.

21

280251

COTTER PIN,3/32" OD x 1" OAL

1шт.

22

87617590

STOP LOCK

1шт.

23

86625241

WASHER,0.41" ID x 0.81" OD x 0.09" Thk

1шт.

24

375721A1

PIN

Trigger Drawpin

1шт.

25

87615032

PIN,50.93mm OD x 243.3mm L

1шт.

26

87522067

LOCK PIN,11.5mm OD

1шт.

27

87574391

STEEL PLATE

1шт.

28

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

4шт.

29

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

4шт.

30

47357657

DRAWBAR

1шт.

31

47357660

DRAWBAR

Drawbar Assembly, Incl 19 - 30

1шт.

32

84467705

BRACKET

Incl 33

1шт.

33

86978768

DOWEL,M12 x 30mm L

2шт.

34

87722027

PIN,44.4mm OD x 140mm L

1шт.

35

87720346

RETAINER

1шт.

36

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

37

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

1шт.

38

828-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

4шт.

39

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

40

47893361

DECAL

European Models Only

1шт.
