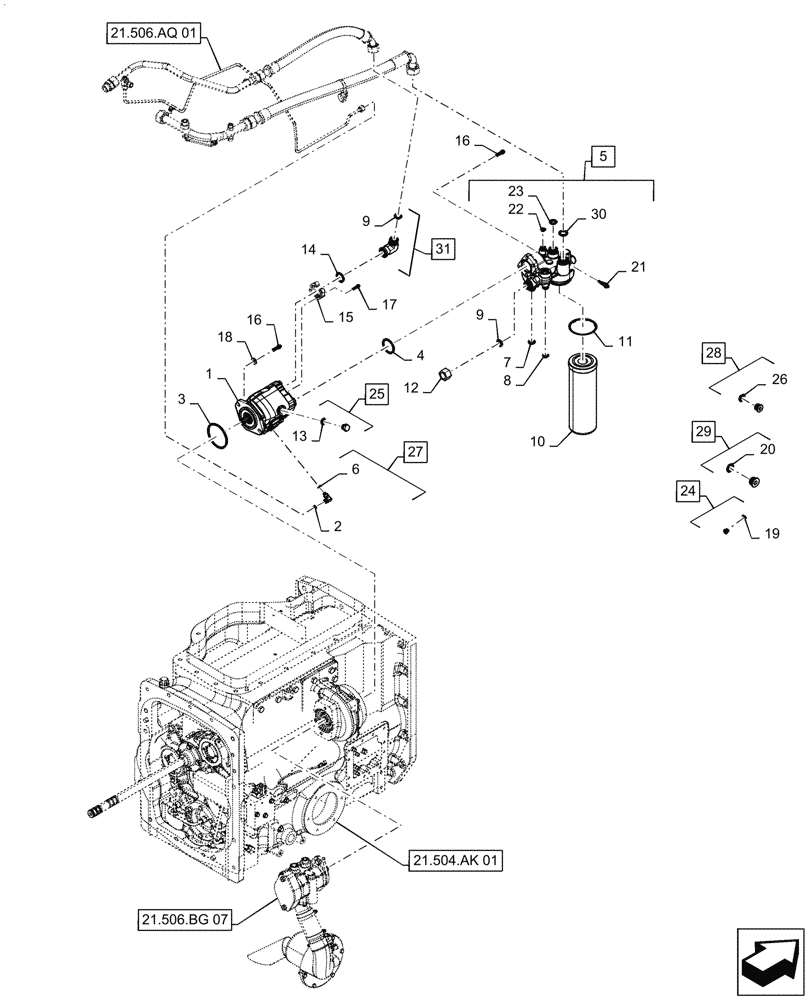

Запчасти Case IH MAGNUM 310 (35.104.AA[15]) - VAR - 420302 - CVT HYDRAULIC SYSTEM, HIGH CAPACITY HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

47473854

HYDRAULIC PUMP,211 LPM (55.6 GPM)

Main, High Capacity, 85cc

1шт.

2

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

3

70923600

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

1шт.

4

510185

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

5

47768614

FILTER HEAD

Hydraulic, High Capacity, Incl 7 - 11, 21 - 23, 30

1шт.

6

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

7

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

8

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

87473574

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

10

84240234

HYDRAULIC OIL FILTER,Spin on, 14.48"

Hydraulic-Lube/Charge

1шт.

11

84362145

RING

Friction, Hydraulic Filter

1шт.

12

701-901

CAP,1-7/16" - 12

1шт.

13

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

86529541

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

15

86980728

COLLAR CLAMP

Split Flange

2шт.

16

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

6шт.

17

868-10030

12 PT SCREW,M10 x 30mm, Cl 12.9

4шт.

18

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

19

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

20

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

21

1957801C1

PRESSURE SWITCH

Oil Filter, High Capacity

1шт.

22

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

87473574

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

24

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 19

1шт.

25

218-5157

PLUG,Hex Hd, 7/8"-14 ORB

Incl 13

1шт.

26

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

27

451226A1

90 ELBOW

7/16-20 ORB X 11/16-16 ORFS; Incl 2, 6

1шт.

28

221580A1

PLUG,M27 x 2 ORB

Plug, Hex Socket, Orb M27X2 Znd, Incl 26

1шт.

29

221527A1

PLUG,Hex Soc, M33 x 2, ORB

Incl 20

1шт.

30

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

31

87677649

90 ELBOW

Split Flange, Incl 9

1шт.
