Запчасти Case IH MAGNUM 310 (35.104.AA[14]) - HYDRAULIC SYSTEM, LINES (35) - HYDRAULIC SYSTEMS

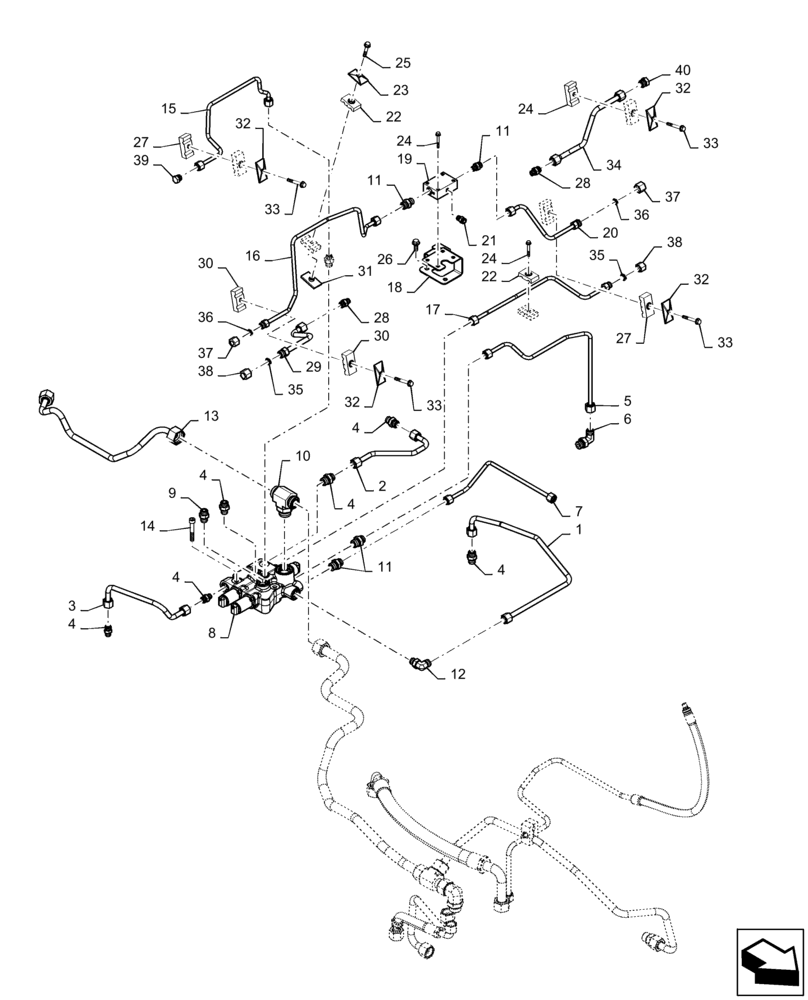

Схема запчастей Case IH MAGNUM 310 - (35.104.AA[14]) - HYDRAULIC SYSTEM, LINES (35) - HYDRAULIC SYSTEMS
17
16
35
18
39
28
19
32
30
9
32
21
11
38
37
29
2
4
33
24
38
36
15
33
14
4
4
33
30
26
36
23
4
40
20
24
3
37
11
27
24
28
35
34
10
1
32
25
13
6
22
4
7
27
8
4
11
22
31
32
5
12
33

Артикул

Название

Примечание

Количество

1

47628881

TUBE

Diff. Lube

1шт.

2

47426858

TUBE

LH Brake Lube

1шт.

3

47426859

TUBE

RH Brake Lube

1шт.

4

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

6шт.

5

47762855

HYD TUBE

Pinion Lube

1шт.

6

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

7

84531798

TUBE

CVT Hydro Rear Brg Lube

1шт.

8

47494157

VALVE

Assy Axle Lube

1шт.

9

700-106

HYD CONNECTOR,11/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

10

700-404

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

11

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

5шт.

12

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

1шт.

13

84499053

TUBE

PTO Lube

1шт.

14

864-10065

HEX SOC SCREW,M10 x 65mm, Cl 8.8

3шт.

15

47721365

HYD TUBE

Lube Supply RH

1шт.

16

47721363

TUBE

Air Supply RH

1шт.

17

47625968

TUBE

Lube Supply LH

1шт.

18

47600648

BRACKET

Air Supply Valve

1шт.

19

47641789

MANIFOLD

Boost Air Check Assy

1шт.

20

47625951

TUBE

Air Supply LH

1шт.

21

84140033

HYD CONNECTOR

Air Push

1шт.

22

87000148

CLAMP

Hydraulic Tube

2шт.

23

384870A1

PLATE

Hose Clamp Cover

1шт.

24

844-6045

BOLT,Hvy Hex, M6 x 45mm, Cl 8.8

5шт.

25

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

2шт.

26

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

27

86988833

CLAMP,9.52mm x 9.52mm, Dual Clamp Block

Hydraulic Tube

2шт.

28

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

29

47649214

TUBE

Lube Return RH

2шт.

30

87105732

CLAMP

Hydraulic Tube

2шт.

31

384871A1

PLATE

Hose Clamp Weld

4шт.

32

1347127C1

PLATE

Hose Clamp

4шт.

33

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

34

47610894

TUBE

Lube Return LH

1шт.

35

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

36

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

37

701-900

CAP,11/16" - 16

2шт.

38

701-905

CAP,13/16" - 16

2шт.

39

701-911

PLUG,Hex, 11/16" - 16 ORFS

1шт.

40

9840573

PLUG,13/16"-16 ORFS

1шт.

Выбрано товаров: 40
