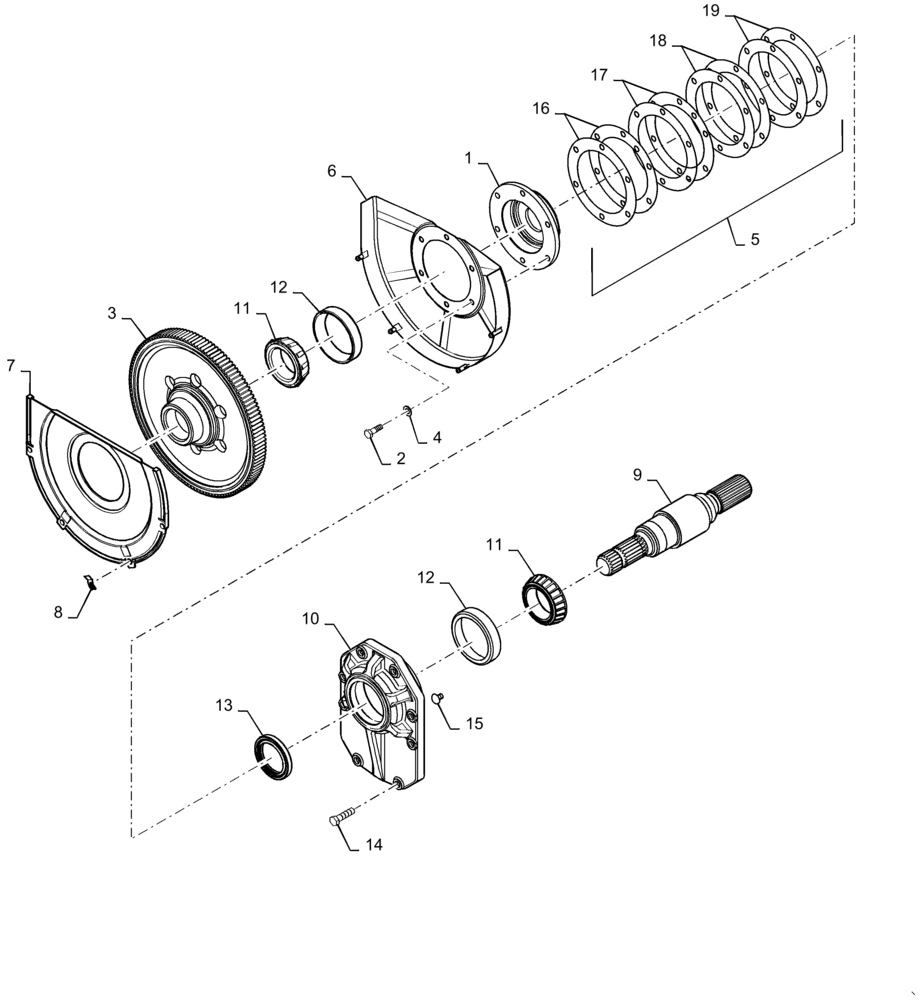

Запчасти Case IH MAGNUM 310 (31.110.AP[01]) - VAR - 420604 - PTO, OUTPUT SHAFT, SINGLE SPEED (31) - IMPLEMENT POWER TAKE OFF

1

444803A2

CAGE

1шт.

2

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

3

444800A2

DRIVEN GEAR

121T

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

5

445991A1

SHIM KIT

Incl 16 - 18

1шт.

6

446759A1

SHIELD

IPTO Driven Gear

1шт.

7

225810A1

COVER

Driven Gear

1шт.

8

139327C1

CLIP

Cover Retainer

4шт.

9

84466634

PTO SHAFT

Output

1шт.

10

47589788

HOUSING

IPTO Single Speed

1шт.

11

446268A1

BEARING ASSY,66.67mm ID x 30.05mm W

2шт.

12

446269A1

BEARING CUP,112.71mm OD x 23.81mm W

Race

2шт.

13

225820A1

OIL SEAL,66.55mm ID x 92.18mm OD x 11.68mm Thk

1шт.

14

87015540

BOLT,Hex, M12 x 50mm, Cl 10.9

8шт.

15

128209A1

PLUG

1шт.

16

444805A1

SHIM

0.152mm Thk

2шт.

17

444806A1

SHIM

0.178mm Thk

2шт.

18

444807A1

SHIM

0.203mm Thk

2шт.

19

444809A1

SHIM

0.635mm Thk

2шт.
