Запчасти Case IH MAGNUM 310 (27.106.AC[10]) - VAR - 429334, 429335 - CVT - TRANSMISSION DIFFERENTIAL HD (27) - REAR AXLE SYSTEM

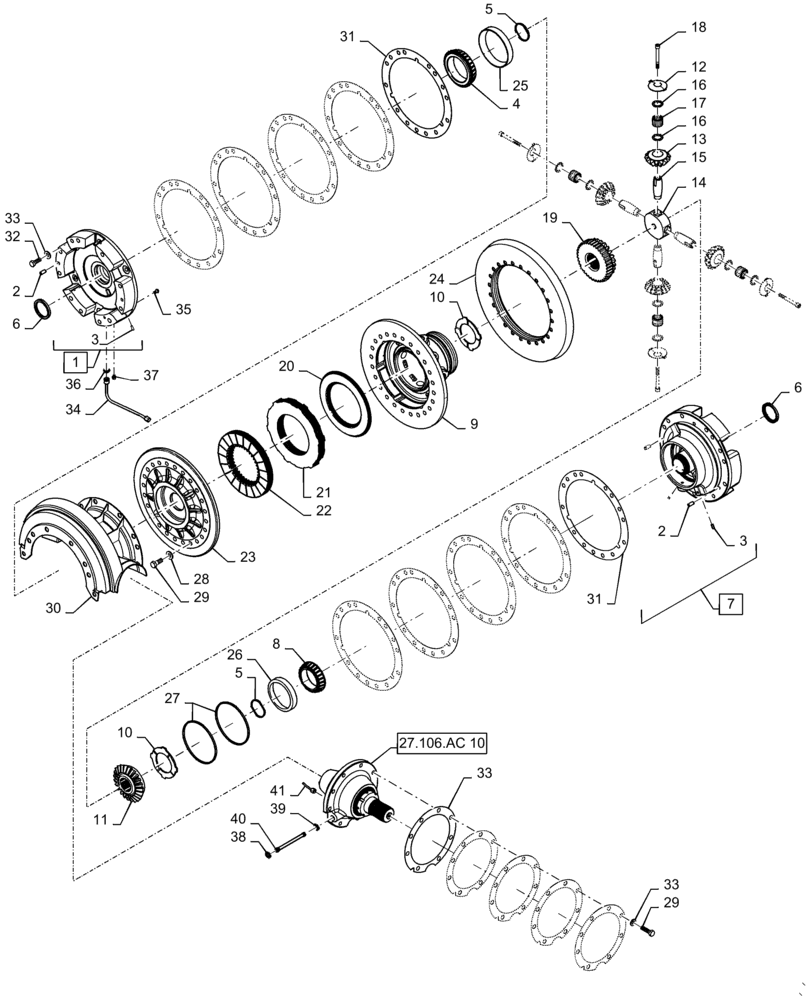

Схема запчастей Case IH MAGNUM 310 - (27.106.AC[10]) - VAR - 429334, 429335 - CVT - TRANSMISSION DIFFERENTIAL HD (27) - REAR AXLE SYSTEM
10
3
18
37
30
40
33
2
1
22
29
9
7
27
15
34
13
16
20
8
21
19
26
11
10
23
29
31
41
6
4
32
38
35
16
5
3
33
33
14
31
28
17
27.106.ac 10
36
24
39
6
2
5
25
12

Артикул

Название

Примечание

Количество

1

47390228

CARRIER

Bearing, LH Diff And Brake Incl 2, 3

1шт.

2

86978768

DOWEL,M12 x 30mm L

4шт.

3

87520608

EXPANSION PLUG,8mm

5шт.

4

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.

5

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

Differential

2шт.

6

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

Outer Carrier

2шт.

7

47511869

BEARING CARRIER

RH Diff Incl 2, 3

1шт.

8

123869R1

ROLLER BEARING,95.263 mm ID x 36.535 mm

1шт.

9

47547163

CARRIER

HD FD Differential

1шт.

10

84321280

SHIM,95mm ID x 158mm OD x 4.91mm Thk

Differential

2шт.

11

47467984

GEAR

Differential Side, 24T

1шт.

12

87333856

THRUST WASHER,32.7mm ID x 80mm OD x 1.6mm Thk

Diff Pinion, Spherical

4шт.

13

47467982

PINION

Diff Pinion 14T

4шт.

14

84569116

HUB

Diff Gear Pin

1шт.

15

84466941

PIN,31.73mm OD x 104mm L

HD Diff Spider Gear

4шт.

16

87346098

THRUST BEARING,32.45mm ID x 44.8mm OD x 3.05mm Thk

Bearing Thrust

8шт.

17

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

Spider Gear Roller

72шт.

18

2465667

HEX SOC SCREW,M12 x 110mm, Cl 12.9

4шт.

19

47467983

GEAR

Diff Side 24T, Locking

1шт.

20

1997422C1

PISTON

Brake And Diff Lock

1шт.

21

87745601

CLUTCH PLATE,193mm ID x 315.4mm OD x 2.74mm Thk

Diff Lock Separator; Self-Centering

5шт.

22

84225275

PLATE

Diff Lock Friction

4шт.

23

47547164

COVER

HD Differential

1шт.

24

84466934

RING GEAR

Bevel; HD

1шт.

25

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

1шт.

26

619697C1

BEARING CUP,149.98mm OD x 26.90mm W

1шт.

27

148939C1

SEALING RING,OD 200.60 mm

Diff Lock

2шт.

28

47600651

WASHER,Flat, 17.00mm ID x 30.00mm OD x 2.00mm

24шт.

29

48137515

LOCK BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

32шт.

30

47422828

SHIELD

Differential Oil

1шт.

31

84541581

SHIM,335mm ID x 422mm OD x 0.08mm Thk

Diff Bearing

1шт.

31

84541582

SHIM,335mm ID x 422mm OD x 0.1mm Thk

Diff Bearing

1шт.

31

84541583

SHIM,335mm ID x 422mm OD x 0.13mm Thk

Diff Bearing

1шт.

31

84541584

SHIM,335mm ID x 422mm OD x 0.3mm Thk

Diff Bearing

1шт.

31

84541585

SHIM,335mm ID x 422mm OD x 0.76mm Thk

Diff Bearing

1шт.

32

628-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

6шт.

33

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

14шт.

34

84563439

TUBE

Diff Lock Pressure

1шт.

35

84405128

HEX SOC SCREW,M10 x 1.5 x 20mm, Cl 10.9

4шт.

36

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

37

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

1шт.

38

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

39

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

40

47361617

TUBE

Pinion Lube Jumper W/ Orifice

1шт.

41

47406567

TUBE

Mesh Lube

1шт.

Выбрано товаров: 45
