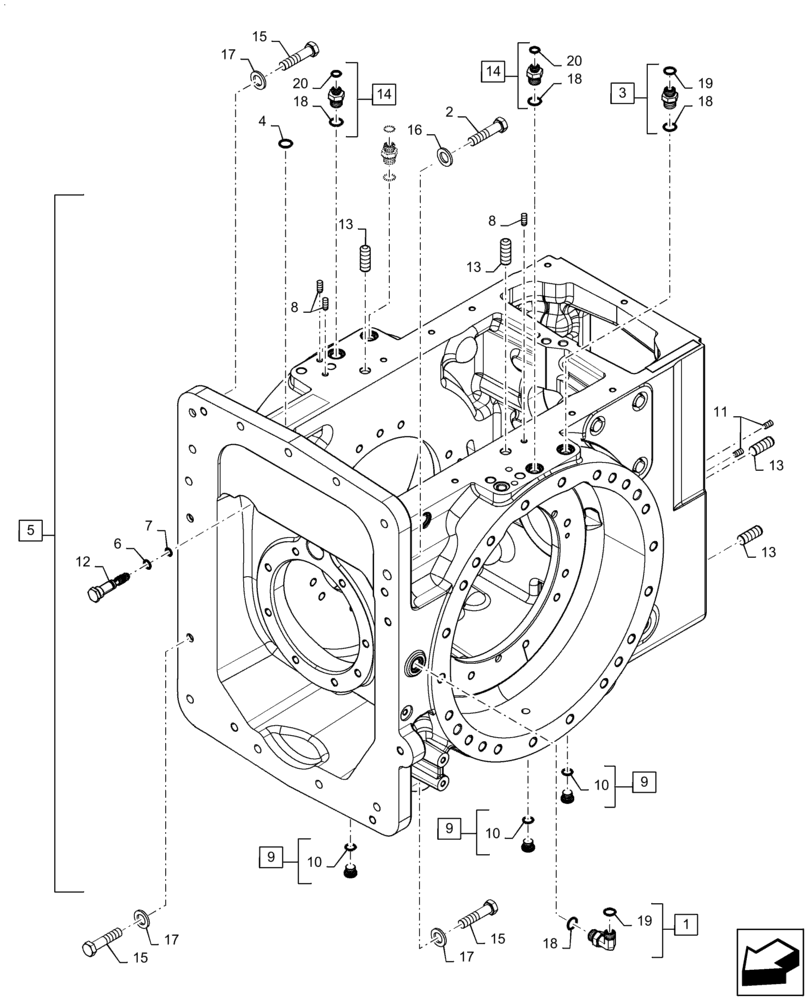

Запчасти Case IH MAGNUM 310 (27.100.AB[02]) - REAR AXLE HOUSING, CVT (27) - REAR AXLE SYSTEM

1

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 18, 19

1шт.

2

828-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

1шт.

3

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 18, 19

2шт.

4

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

5

47692476

HOUSING

HD Final Drive, CVT, Incl 6 - 13

1шт.

6

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

7

238-6111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 6, 90 Duro

1шт.

8

837-10024

DOWEL

4шт.

9

86598046

PLUG,M18 x 1.5 ORB

Incl 10

3шт.

10

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

11

837-10020

DOWEL,M10 x 20

2шт.

12

411075A1

FITTING

Differential Lock Pressure

1шт.

13

37-11232

DOWEL,3/4" x 2"

4шт.

14

87349824

HYD CONNECTOR,10mm Tube OD, Male, 11/16"-16 ORFS x M22 x 1.5 ORB

Incl 18, 20

2шт.

15

47682458

BOLT,M16 x 2 x 70mm, Cl 12.9

13шт.

16

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

1шт.

17

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

13шт.

18

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

5шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

20

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
