Запчасти Case IH MAGNUM 310 (25.108.AG[05]) - VAR - 420277, 429199 - KINGPIN, CLASS 5, EXCEPT WIDE AXLE (25) - FRONT AXLE SYSTEM

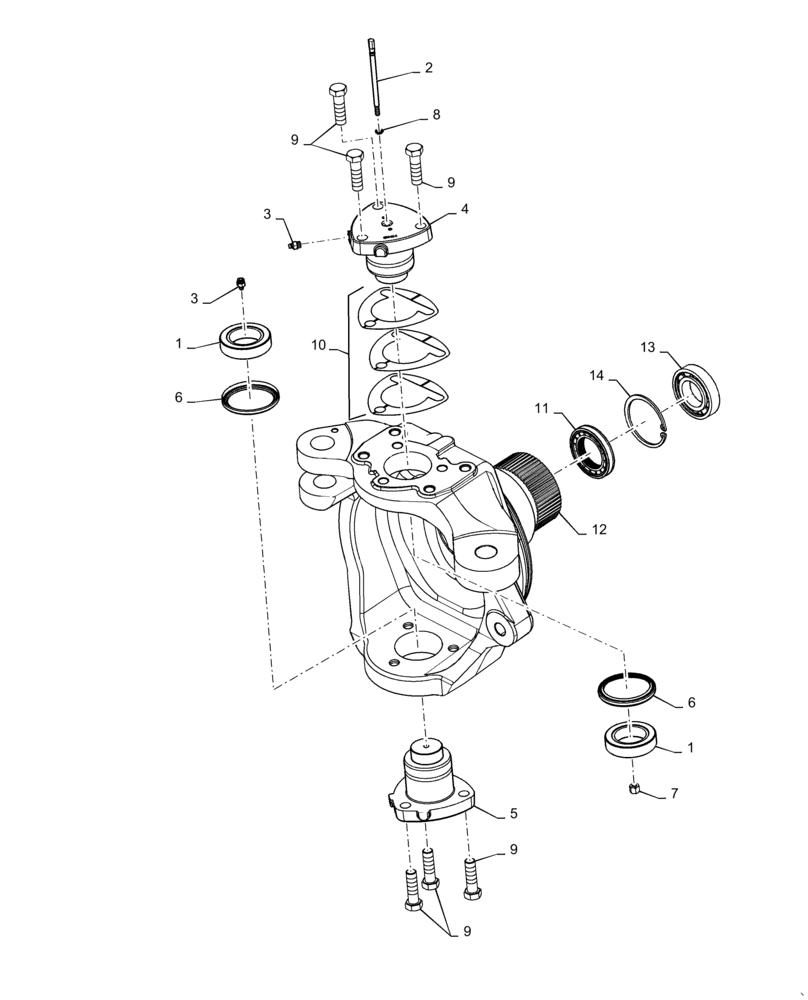

Схема запчастей Case IH MAGNUM 310 - (25.108.AG[05]) - VAR - 420277, 429199 - KINGPIN, CLASS 5, EXCEPT WIDE AXLE (25) - FRONT AXLE SYSTEM
9
6
9
9
7
1
2
3
11
13
10
14
4
9
5
1
6
3
12
8

Артикул

Название

Примечание

Количество

1

84322020

BUSHING,50mm ID x 80mm OD x 20mm W

King Pin Spherical

2шт.

2

84297770

SHAFT

Autoguidance

1шт.

3

13407211

LUBE NIPPLE,M10 x 1

2шт.

4

84475922

PIN

King Upper, LH

1шт.

4

84475926

PIN

King Upper, RH

1шт.

5

84475929

PIN

King Lower

1шт.

6

84480115

SEAL PROTECTION,73.98mm ID x 90.15mm OD x 8mm Thk

Grease King Pin

2шт.

7

832-10406

NUT,M6 x 1, Cl 8

1шт.

8

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

1шт.

9

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

6шт.

10

47492059

SHIM KIT

Kingpin

1шт.

11

84397071

SEAL,52mm ID x 85mm OD x 14mm Thk

Oil Cartridge

1шт.

12

84329008

HOUSING

Knuckle RH

1шт.

12

84329208

HOUSING

Knuckle LH

1шт.

13

87481950

BALL BEARING,45mm ID x 85mm OD x 19mm W

45 x 85 x 19

1шт.

14

800-2185

SNAP RING,M85 x 3, Int

1шт.

Выбрано товаров: 16
