(25.108.AA[05]) - VAR - 420277, 429199 AXLE SHAFTS, CLASS 5, NON-SUSPENDED - ZDR*05092 AND AFTER, SUSPENDED - ZDR*04620 AND AFTER

Запчасти Case IH MAGNUM 310 (25.108.AA[05]) - VAR - 420277, 429199 AXLE SHAFTS, CLASS 5, NON-SUSPENDED - ZDR*05092 AND AFTER, SUSPENDED - ZDR*04620 AND AFTER (25) - FRONT AXLE SYSTEM

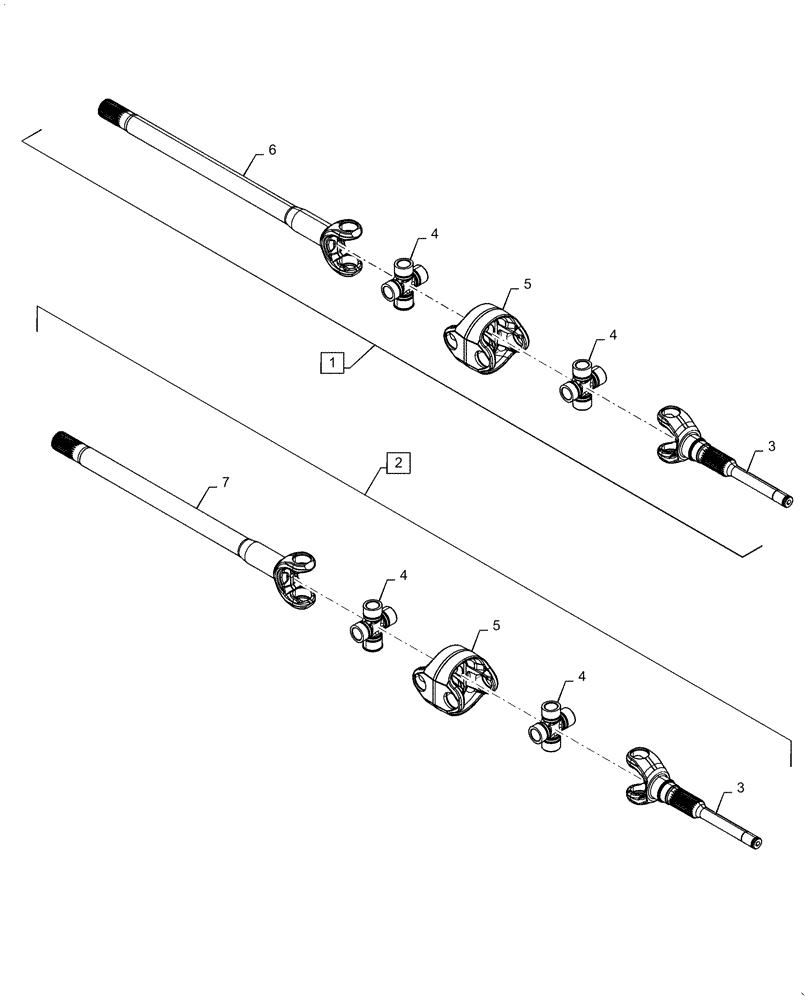

Схема запчастей Case IH MAGNUM 310 - (25.108.AA[05]) - VAR - 420277, 429199 AXLE SHAFTS, CLASS 5, NON-SUSPENDED - ZDR*05092 AND AFTER, SUSPENDED - ZDR*04620 AND AFTER (25) - FRONT AXLE SYSTEM
4
3
1
4
4
4
7
3
2
6
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84415816

SHAFT

Long CL5. Incl. 3-6

1шт.

2

84415817

SHAFT

Short CL5. Incl. 3-5, 7

1шт.

3

47492124

SHORT SHAFT

CL5

2шт.

4

47492125

UNIVERSAL JOINT

CL5

4шт.

5

47492126

YOKE

Double

2шт.

6

47492127

LONG SHAFT

CL5

1шт.

7

47492128

SHORT SHAFT

CL5

1шт.
