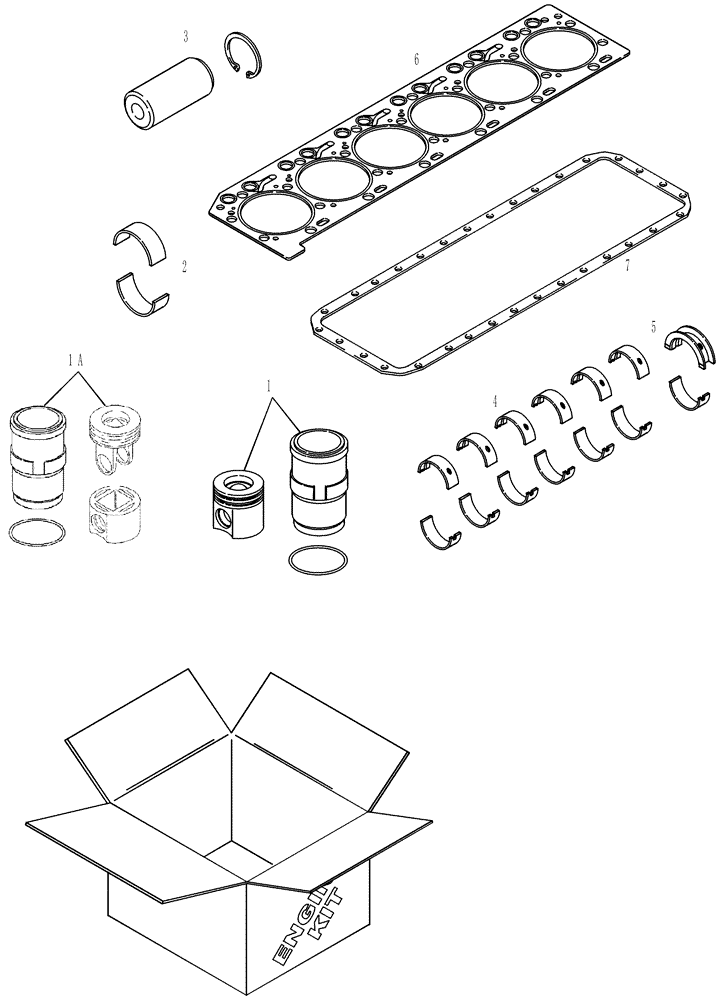

Запчасти Case IH MAGNUM 305 (02-27B) - KIT ENGINE OVERHAUL, MX305 AND MAGNUM 305 (02) - ENGINE

87356539

ENGINE OVERHAUL KIT

MX305, Magnum 305 (8.3 Liter Engine or 9.0 Liter Engine); Incl 1 - 7

1шт.

Engine BSN 46743464 Including 46743508, 46743544, 46743551, 46743560, 46743574, 46743587, 46743616, 46743712, 46744589, 46744619

1шт.

87487659

ENGINE OVERHAUL KIT

Magnum 305 (9.0 Liter Engine); Incl 1A - 7

1шт.

Engine ASN 46743464 Excluding 46743508, 46743544, 46743551, 46743560, 46743574, 46743587, 46743616, 46743712, 46744589, 46744619

1шт.

1

87356567

KIT

Piston and Sleeve

6шт.

Engine BSN 46743464 Including 46743508, 46743544, 46743551, 46743560, 46743574, 46743587, 46743616, 46743712, 46744589, 46744619

1шт.

See Figure 02-31

1шт.

1a

87685905

PISTON

KIT, Piston and Sleeve

6шт.

Engine ASN 46743464 Excluding 46743508, 46743544, 46743551, 46743560, 46743574, 46743587, 46743616, 46743712, 46744589, 46744619

1шт.

See Figure 02-31

1шт.

2

87356776

BEARING LINER

Connecting Rod, Standard

6шт.

See Figure 02-31

1шт.

3

87342670

PISTON PIN

6шт.

See Figure 02-31

1шт.

4

J945930

BEARING SET

Main, Standard

6шт.

See Figure 02-28

1шт.

5

J945929

THRUST BEARING

Thrust, Standard

1шт.

See Figure 02-28

1шт.

6

87737237

CYLINDER HEAD GASKET,1.81mm Thk

1шт.

See Figure 02-21

1шт.

7

87308050

GASKET,0.95mm Thk

Oil Pan

1шт.

See Figure 02-18

1шт.
