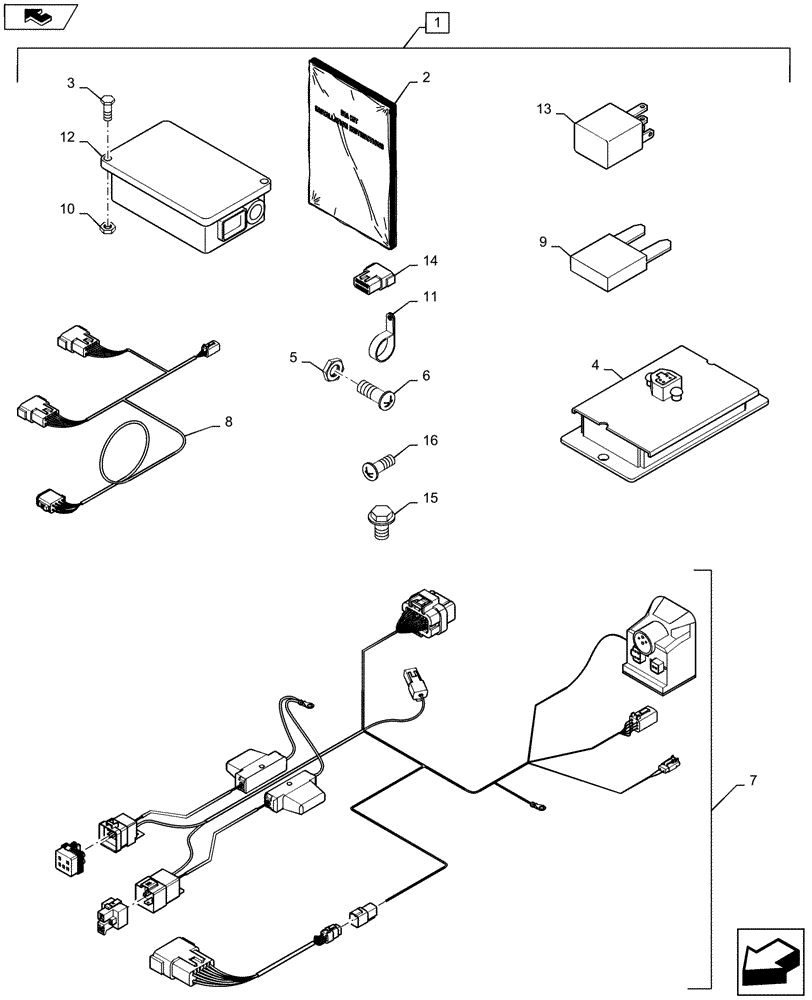

Запчасти Case IH MAGNUM 305 (88.088.01) - DIA KIT, PACKAGE, B6 ISO11783 (88) - ACCESSORIES

1

87694653

DIA KIT, TRACTOR

Package, Incl 2 - 16

1шт.

2

87697499

OPERATOR MANUAL

Installation

1шт.

3

811-6025

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 25mm, Cl 8.8

2шт.

4

284638A2

ELEC CONNECTOR,4 Pin

Active Terminator W/Circuit Board + Cover

1шт.

5

829-4408

NUT,Thin, M8 x 1.25, Cl 05

2шт.

6

760-14416

SELF-TAP SCREW,Pan Hd, M4.8 x 16

End

2шт.

7

87313259

HARNESS

Outside

1шт.

8

87418143

HARNESS

Inside Cab

1шт.

9

121412A1

FUSE,10A, Mini, Red

2шт.

10

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

11

87313355

CLAMP,38.1mm, Coat, 8.7mm Bolt Hole, J Type

J 38.1mm Insul M8 Bolt

1шт.

12

84473221

MODULE

Tractor ECU

1шт.

12

84473221R

REMAN-MODULE

Tractor ECU

1шт.

12

84473221C

CORE-MODULE

Return Number

1шт.

13

87414866

RELAY,12V, 20A

Bosch M30

1шт.

14

87544769

HARNESS

Display Jumper

1шт.

15

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

1шт.

16

780-14625

SELF-TAP SCREW,Hex Hd, M6.3 x 25

End

4шт.
