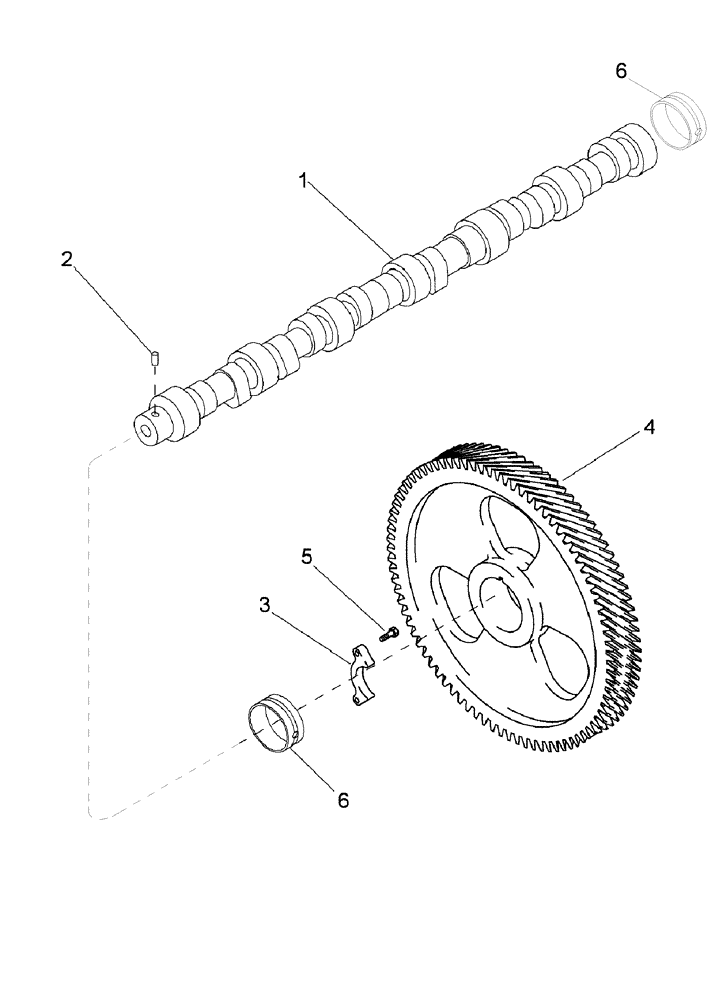

Запчасти Case IH MAGNUM 305 (02-24) - CAMSHAFT (02) - ENGINE

1

87342996

CAMSHAFT

Inc. 2

1шт.

87342996R

REMAN-CAMSHAFT

MAGNUM 335 , MAGNUM 275 ( 9/06 - ) , MAGNUM 305 ( 9/06 - ) , MAGNUM 245 ( 9/06 - ) , MAGNUM 215 ( 9/06 - ) , MX215 , MX275 , MX305 , MX245 both ( 1/06 - 9/06 )

1шт.

87342996C

CORE-CAMSHAFT

Return Number

1шт.

2

87453128

PIN,4mm OD x 7mm L

4 x 6,5 mm

1шт.

3

J944001

SUPPORT

1шт.

4

87342988

GEAR

Pinion

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

7шт.
