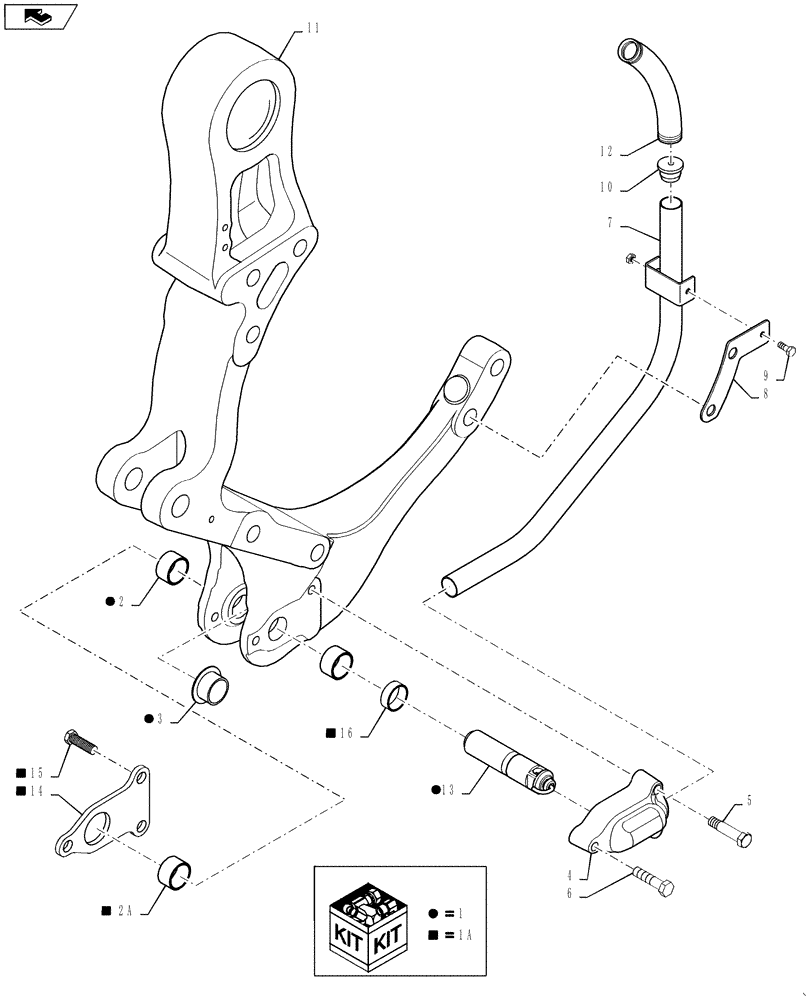

Запчасти Case IH MAGNUM 305 (09-64) - HITCH - DRAFT CONTROL PINS (09) - CHASSIS/ATTACHMENTS

1

322022A1

KIT

Repair, If Equipped, Inc. 2 - 3, 13

2шт.

1a

84175642

KIT

Repair, If Equipped, Inc. 2A, 14 - 16

2шт.

2

1960223C1

BUSHING,37.15mm ID x 43.09mm OD x 24mm L

2шт.

2a

1960223C1

BUSHING,37.15mm ID x 43.09mm OD x 24mm L

4шт.

3

303550A1

BUSHING,37.15mm ID x 57.15mm OD x 26mm L

2шт.

4

87365144

COVER

2шт.

5

225643A1

BOLT,Shldr, Hex, M12 x 1.75 x 56mm

2шт.

6

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

7

236897A2

TUBE

2шт.

8

229904A2

SUPPORT

2шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

10

1960765C2

GROMMET

2шт.

11

84365931

BRACKET

Assy, Hitch Support

2шт.

12

326827A1

SLEEVE

2шт.

13

87351611

SENSOR

Pin, Draft Control

1шт.

14

84155706

COVER

2шт.

15

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

6шт.

16

84157530

SPACER,37.4mm ID x 42.25mm OD x 15.5mm L

2шт.
