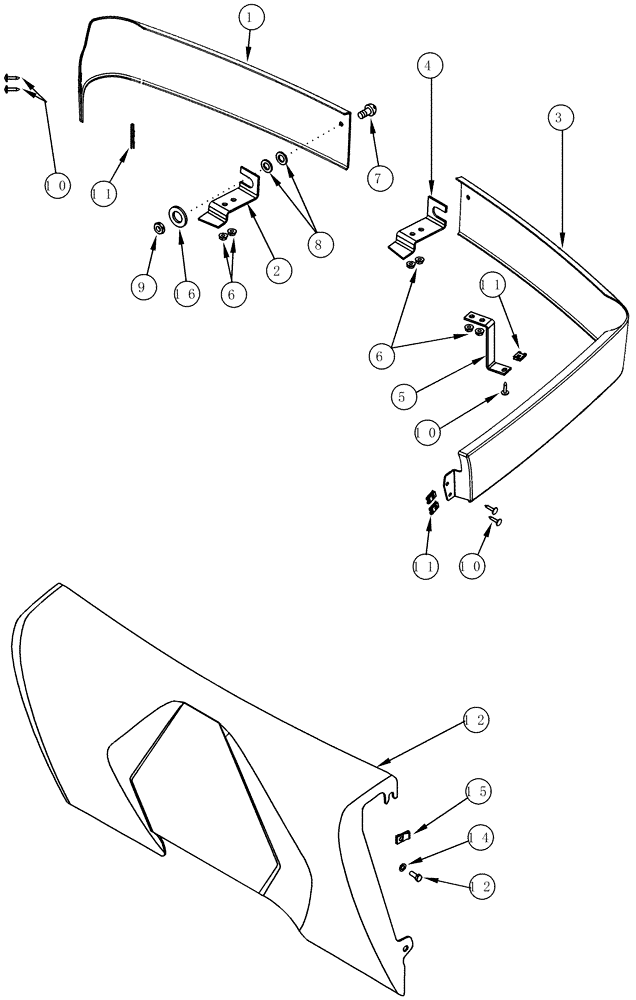

Запчасти Case IH MAGNUM 305 (09-14) - CAB - EXTERIOR TRIM (09) - CHASSIS/ATTACHMENTS

1

258865A4

PANEL

Front Left Hand Side

1шт.

2

87432398

BRACKET

Left Hand

1шт.

3

84291013

PANEL

Front Right Hand Side

1шт.

4

87432399

BRACKET

Right Hand

1шт.

5

298464A1

BRACKET

1шт.

6

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

6шт.

7

840-1820

SCREW,Pan, M8 x 20mm, Cl 4.8

2шт.

8

96814C3

WASHER,10mm ID x 22.25mm OD x 2.25mm Thk

4шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

10

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

5шт.

11

131-642

SPRING NUT,Tinn, U, #10

5шт.

12

387123A6

PANEL

Rear

1шт.

13

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

15

825-5148

SERRATED NUT,M8, Flg Ser

M8

2шт.

16

495-81140

WASHER,13/32" x 1 1/4" x .060"

2шт.
