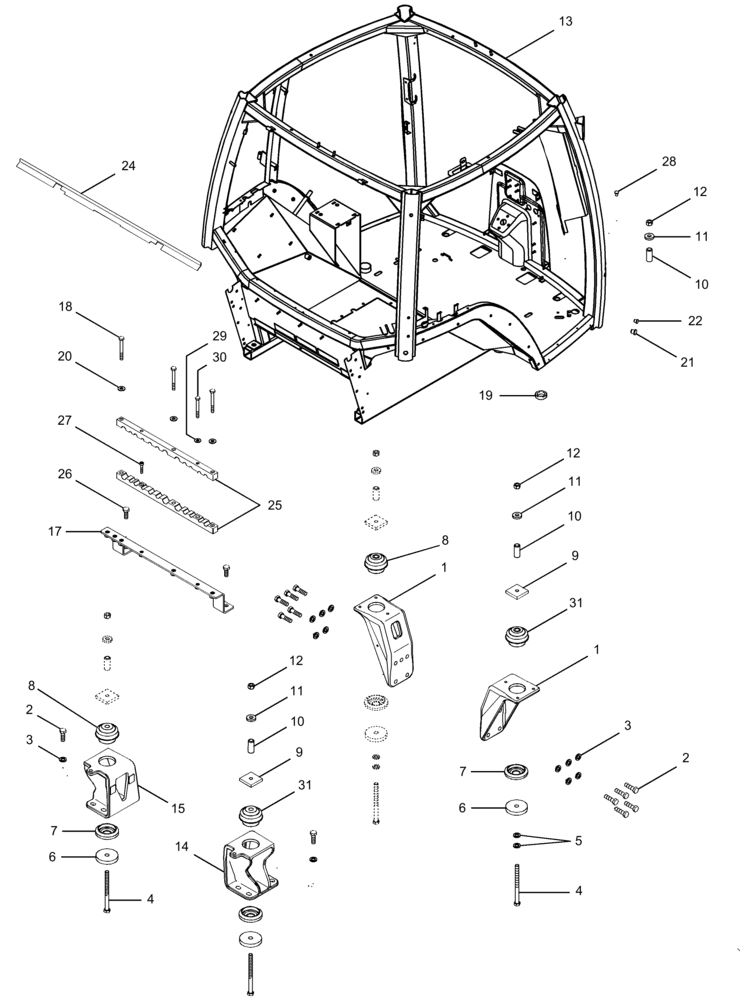

Запчасти Case IH MAGNUM 305 (09-12) - CAB - MOUNTING AND FRAME (09) - CHASSIS/ATTACHMENTS

87447112

CAB

Service, Complete (Not Shown), Serial Range: Made-Order

1шт.

1

87522763

BRACKET

Cab Mount, Front

2шт.

2

628-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

18шт.

3

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

18шт.

4

86987599

BOLT

M16 x 200

4шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Front Mount

4шт.

6

87562943

SPACER,17.5mm ID x 95.2mm OD x 16.12mm L

16 mm

4шт.

7

1286903C1

INSULATOR BLOCK

Bottom

4шт.

8

192337A1

ISOLATOR,101.6mm OD x 73.7mm L

Top, Rear

2шт.

9

86985936

PLATE

4шт.

10

184262A1

SPACER

4шт.

11

897278H1

WASHER,16.5mm ID x 40mm OD x 8mm Thk

4шт.

12

829-1416

NUT,M16, Cl 10

4шт.

13

84164942

CAB

Frame

1шт.

14

87522765

BRACKET

Cab, Right Hand Rear

1шт.

15

87522769

BRACKET

Cab, Left Hand Rear

1шт.

17

87435455

BRACKET

1шт.

18

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

3шт.

19

182220A1

GROMMET

1шт.

20

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

21

128209A1

PLUG

4шт.

22

353-432

PLUG,7/8" Hole, Nylon

2шт.

24

359321A1

GUARD

1шт.

25

87430951

BAR

Clamp, 2 Piece

1шт.

26

615-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

27

864-6030

HEX SOC SCREW,M6 x 30mm, Cl 8.8

1шт.

28

441460A1

PLUG

9.5 mm

1шт.

29

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

1шт.

30

495-81107

WASHER,.281" x 7/8" x .060"

1шт.

31

87677703

INSULATOR

Top, Front

2шт.

32

1533637C1

PLUG

(Not Shown)

5шт.
