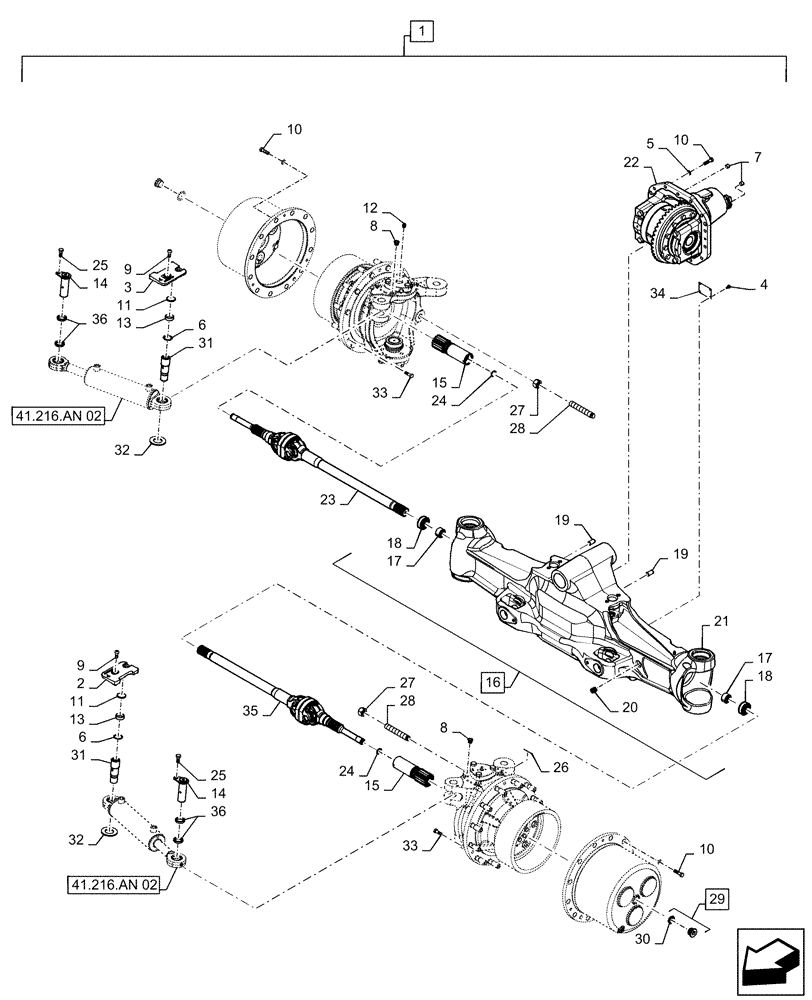

Запчасти Case IH MAGNUM 290 (25.100.AD[10]) - VAR - 420277, 429199 CNH FRONT AXLE, CLASS 5 (25) - FRONT AXLE SYSTEM

1

84327626

AXLE

Assy, Front CL 5, Incl 2 - 36

1шт.

2

47451490

STOP

Oscillation, LH

1шт.

Use with Non-Suspended Axles

1шт.

2

47615228

STOP

Oscillation, LH

1шт.

Use with Suspended Axles

1шт.

3

47451489

STOP

Oscillation, RH

1шт.

Use with Non-Suspended Axles

1шт.

3

47615227

STOP

Oscillation, RH

1шт.

Use with Suspended Axles

1шт.

4

301-1434

DRIVE SCREW,Drive, #6 x 1/4"

4шт.

5

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

14шт.

6

800-2140

SNAP RING,M40, Int

2шт.

7

353-401

PLUG,Dome, .312" hole, Nylon

2шт.

8

353-77

PLUG,Cap, .576" OD

8шт.

9

47443987

HEX SOC SCREW,BTN HD, M12 x 30mm, Cl 10.9

M12 x 30 10.9 ZND

4шт.

10

47632825

BOLT,Hex, M12 x 45mm, Cl 10.9

Lock, M12 x 45 Full 10.9 PHC

14шт.

11

84315411

COVER

2шт.

12

13407211

LUBE NIPPLE,M10 x 1

4шт.

13

87554181

SPACER,35.5mm ID x 39.5mm OD x 12.5mm L

Pin Steering Cyl Inboard

2шт.

14

87554183

PIN,34.99mm OD x 115mm L

Steering Cyl Rod Side

2шт.

15

84338967

SHAFT, PLANETARY CAR

Sun 12T

2шт.

16

48054822

Assy, Suspended, Incl 17 - 21

BEAM

1шт.

17

84411553

BUSHING,50mm ID x 55mm OD x 30mm L

50 x 55 x 30

2шт.

18

84416409

SEAL,50mm ID x 80mm OD x 27.5mm Thk

50 x 80 x 27

2шт.

19

837-16030

DOWEL,16mm OD x 30mm L

2шт.

20

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.

21

47385052

HOUSING

Beam, Suspended Axle

1шт.

22

84415795

PINION

Assy, With Differential

1шт.

23

84415816

SHAFT

Cardan Long, CL 5

1шт.

24

197297

SNAP RING,#98, Ext

2шт.

25

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

26

432-828

COTTER PIN,1/8" x 1 3/4"

2шт.

27

829-1424

NUT,M24, Cl 10

2шт.

28

84530771

ADJUSTMENT SCREW,M24 x 3 x 154mm L

Steering Stop Short, M24 x 146mm

2шт.

28

84530772

ADJUSTMENT SCREW

Steering Stop Long, M24 x 195mm

2шт.

29

221527A1

PLUG,Hex Soc, M33 x 2, ORB

Incl 30

2шт.

30

14438285

O-RING,29.5mm ID x 3.0mm

2шт.

31

47384884

PIN,39.73mm OD x 123.2mm L

Steering Cyl Piston Side

2шт.

32

47359976

WASHER,41mm ID x 76mm OD x 4.76mm Thk

Steering Cyl Spacer

2шт.

33

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

6шт.

34

NSS

NOT SOLD SEPARAT

ID Plate, Incl in 1

1шт.

35

84415817

SHAFT

Cardan Short, CL 5

1шт.

36

48040011

SPACER

Steering Cyl Rod Side

4шт.
