Запчасти Case IH MAGNUM 290 (21.200.AA[02]) - POWERSHIFT - TRANSMISSION, DROP BOX (21) - TRANSMISSION

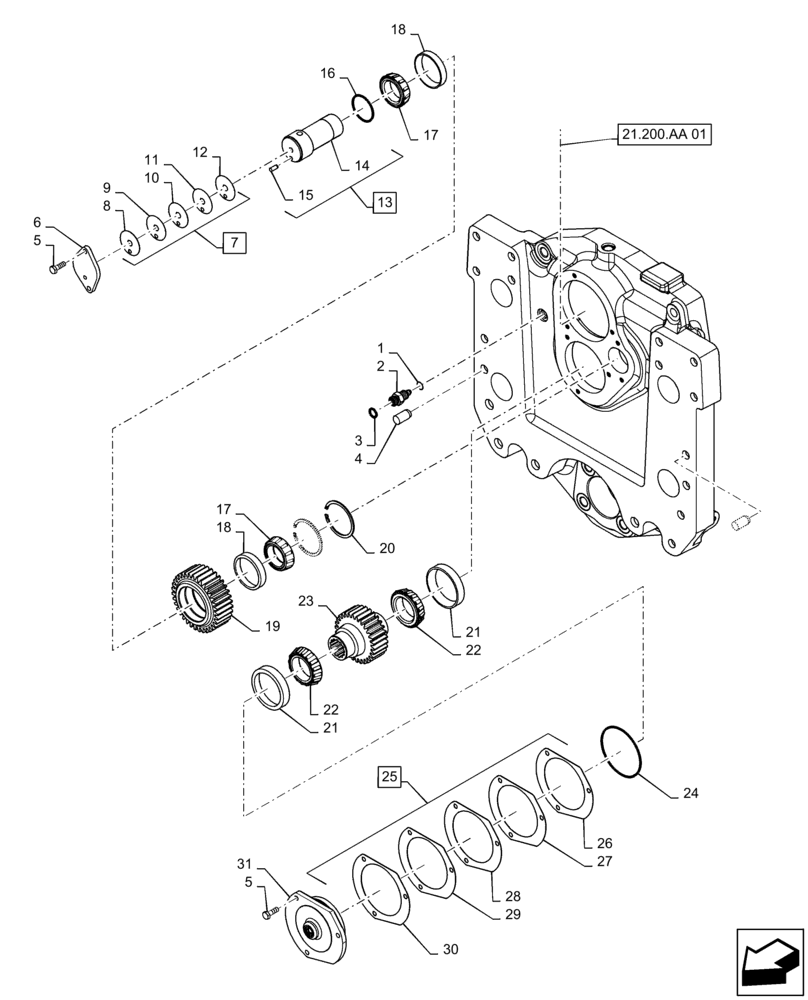

Схема запчастей Case IH MAGNUM 290 - (21.200.AA[02]) - POWERSHIFT - TRANSMISSION, DROP BOX (21) - TRANSMISSION
28
17
21
5
8
15
13
23
17
18
29
18
27
22
3
21
22
7
4
11
16
6
9
30
24
5
25
20
21.200.aa 01
1
14
31
19
2
12
10
26

Артикул

Название

Примечание

Количество

1

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

2

93105C1

UNION

JIC to FFS Bulkhead

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

837-20040

DOWEL,M20 x 40

2шт.

5

339770A1

BOLT,Hex, M10 x 30mm, Cl 10.9, W/ Sealant

8шт.

6

258469A1

COVER PLATE

Idler Shaft

1шт.

7

275217A2

SHIM KIT

Idler Gear; Incl 8 - 12

1шт.

8

228300A1

SHIM,13.5mm ID x 59mm OD x 0.36mm Thk

1шт.

9

228303A1

SHIM,13.50mm ID x 59mm OD x 0.635mm Thk

1шт.

10

275215A1

SHIM,13.5mm ID x 59mm OD x 0.2mm Thk

1шт.

11

341207A1

SHIM,13.5mm ID x 59mm OD x 0.18mm Thk

1шт.

12

341208A1

SHIM,13.50mm ID x 59mm OD x 0.152mm Thk

1шт.

13

228304A2

SHAFT ASSY.

Idler Gear; Incl 14 - 15

1шт.

14

226189A2

SHAFT

1шт.

15

837-8020

DOWEL,8mm OD x 20mm L

1шт.

16

238-5140

O-RING,0.103" Thk x 2.237" ID, -140, Cl 5, 75 Duro

1шт.

17

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

2шт.

18

364462C1

BEARING CUP,82.55mm OD x 16.51mm W

2шт.

19

302554A1

IDLER GEAR

34T

1шт.

20

101-21325

SNAP RING,#325, 3.488", Int

2шт.

21

105496H

BEARING CUP,97.63mm OD x 19.45mm W

2шт.

22

105503H

ROLLER BEARING,57.15mm ID x 24.61mm W

2шт.

23

87740760

GEAR SHAFT

Input/Output 30T

1шт.

24

238-5157

O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro

1шт.

25

275219A2

SHIM KIT

Output Gear; Incl 26 - 30

1шт.

26

341210A1

SHIM,0.152mm Thk

1шт.

27

341209A1

SHIM,123.4mm ID x 175mm OD x 0.18mm Thk

1шт.

28

275213A1

SHIM,123.4mm ID x 175mm OD x 0.2mm Thk

1шт.

29

228265A1

SHIM,123.4mm ID x 175mm OD x 0.64mm Thk

1шт.

30

228261A1

SHIM,123.4mm ID x 175mm OD x 0.36mm Thk

1шт.

31

226188A3

CAGE

Drop Box Output Shaft

1шт.

Выбрано товаров: 31
