Запчасти Case IH MAGNUM 280 (21.113.AP[03]) - VAR - 429330, 429331, 429332, 429333 - POWERSHIFT - SPEED TRANSMISSION HOUSING - ASN ZFRF03732 (21) - TRANSMISSION

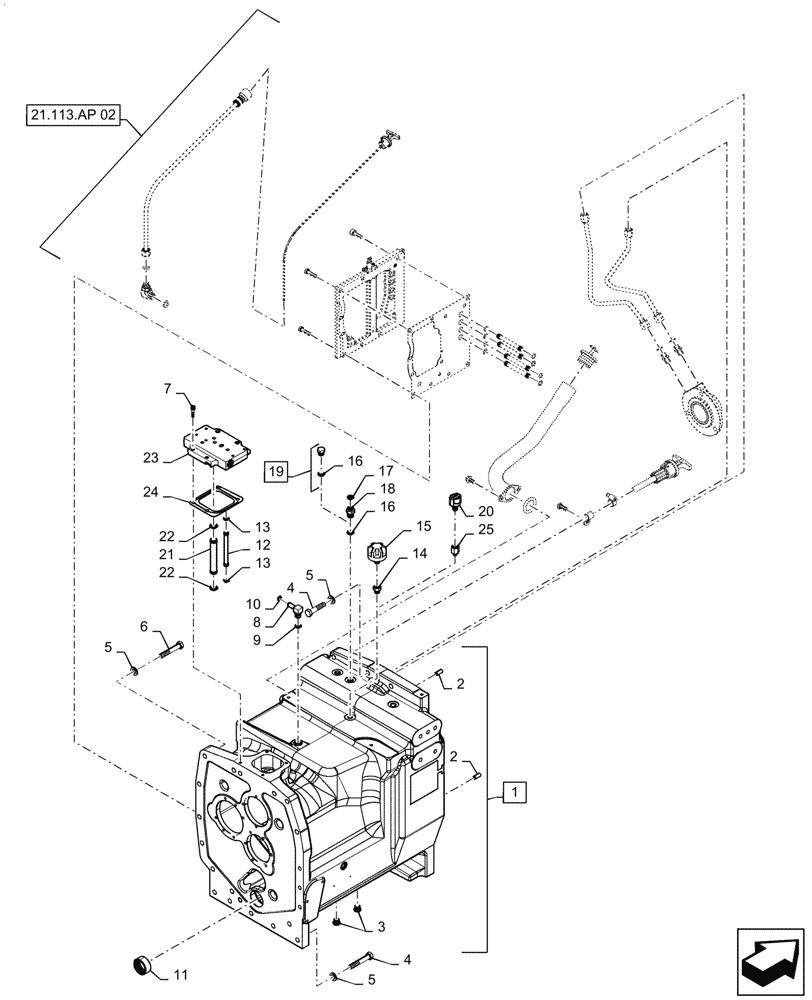

Схема запчастей Case IH MAGNUM 280 - (21.113.AP[03]) - VAR - 429330, 429331, 429332, 429333 - POWERSHIFT - SPEED TRANSMISSION HOUSING - ASN ZFRF03732 (21) - TRANSMISSION
17
18
23
25
19
16
3
21.113.ap 02
1
4
22
11
14
2
5
9
16
8
5
10
24
13
2
13
15
7
6
12
21
4
5
22
20

Артикул

Название

Примечание

Количество

1

47672703

TRANSMISSION HOUSING

Speed; Incl 2, 3

1шт.

2

837-12030

DOWEL,M12 x 30mm OAL

2шт.

3

86598046

PLUG,M18 x 1.5 ORB

2шт.

4

47682458

BOLT,M16 x 2 x 70mm, Cl 12.9

16шт.

5

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

21шт.

6

47682595

BOLT,M16 x 2 x 90mm, Cl 12.9

5шт.

7

861-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

8

87454069

ELBOW,90 Degree Hose Barb, 1/2" ID x M18 x 1.5 Male ORB

1шт.

9

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

10

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.

11

112822R91

NEEDLE BEARING,Needle, 50.78mm ID x 60.31mm OD x 25.4mm W

1шт.

12

235977A2

TUBE,13 mm OD

2шт.

13

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

4шт.

14

87306797

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

OEM

1шт.

15

1971726C1

BREATHER,1/4" - 18

OEM

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

18

87341626

FITTING

2шт.

With Creep or 19 Speed/With 50 KPH

1шт.

19

218-5156

PLUG,Hex Hd, 3/4"-16 ORB

Incl 16

2шт.

Without Creep or 19 Speed/Without 50 KPH

1шт.

20

47746481

BREATHER

High Capacity Hydrac Breather W/Oil Anti-Splash Shield

1шт.

21

300827A1

TUBE,22.85 mm OD, 141.8 mm Length

1шт.

22

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

2шт.

23

87444975

MANIFOLD

1шт.

24

87424932

GASKET,0.92mm Thk

1шт.

25

47746487

REDUCER

1шт.

Выбрано товаров: 27
