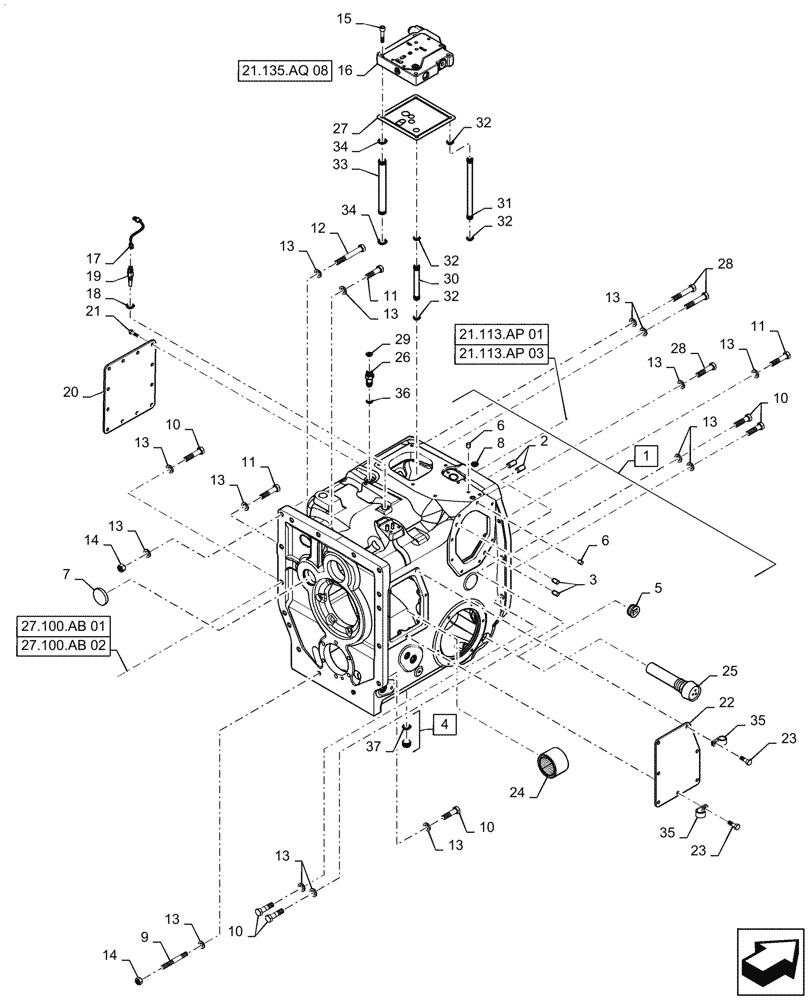

Запчасти Case IH MAGNUM 280 (21.113.AB[01]) - VAR - 429330, 429331, 429332, 429333 - POWERSHIFT - RANGE TRANSMISSION HOUSING - BSN ZFRF03732 (21) - TRANSMISSION

1

47545618

TRANSMISSION HOUSING

Range Transmission, Incl 2 - 8

1шт.

2

837-16035

DOWEL,M16 x 35

4шт.

3

837-12025

DOWEL,M12 x 25

2шт.

4

86598046

PLUG,M18 x 1.5 ORB

Incl 37

1шт.

5

327080A1

PLUG,Hdls Sq Skt Pipe,1 1/4" NPTF, W/ Sealant

w/o Transmission Heater

1шт.

6

87520605

EXPANSION PLUG,12mm

2шт.

7

41-1038

PLUG,Cup, 2 3/8"

1шт.

8

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

9

47631215

STUD,M16 x 2 x 115mm, Cl 10.9

2шт.

10

47631211

12 PT SCREW,M16 x 2 x 60mm, Cl 12.9

13шт.

11

47631212

12 PT SCREW,M16 x 2 x 70mm, Cl 12.9

5шт.

12

47631214

12 PT SCREW,M16 x 2 x 120mm, Cl 12.9

1шт.

13

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

16шт.

14

829-1316

NUT,M16, Cl 10

3шт.

15

861-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.

16

445537A2

VALVE

Inching, Shuttle

1шт.

17

87631267

WIRE HARNESS

Speed Sensor

1шт.

18

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

19

87548198

SENSOR

Transmission Speed

1шт.

20

84384819

COVER

Range Housing

1шт.

21

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

12шт.

22

225209A1

COVER

Park Brake

1шт.

23

87015732

BOLT,M10 x 1.5 x 26.58mm, Cl 10.9

7шт.

24

301533R1

NEEDLE BEARING,Needle, 44.44mm ID x 53.96mm OD x 38.1mm W

1шт.

25

536850R1

HEATER

120 Volt, If Installed

1шт.

26

87318672

UNION

1шт.

27

253385A2

GASKET,0.92mm Thk

Inching Valve, Range Mounting Plate

1шт.

28

47631213

12 PT SCREW,M16 x 2 x 90mm, Cl 12.9

5шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

30

235976A2

TUBE,8 mm ID, 13 mm OD

Jumper, 109.2mm Length

1шт.

31

256544A1

TUBE,8 mm ID, 15.35 mm OD, 199 mm Length

Jumper

3шт.

32

272217

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

8шт.

33

300828A1

TUBE,22.85 mm OD, 199 mm Length

Range Input Cage Jumper

1шт.

34

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

2шт.

35

516-2395

CLAMP,J, 7/16" Insul, 3/8" Bolt

2шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

37

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.
