Запчасти Case IH MAGNUM 280 (21.105.BL[01]) - TRANSMISSION LUBRICATION LINES, POWERSHIFT (21) - TRANSMISSION

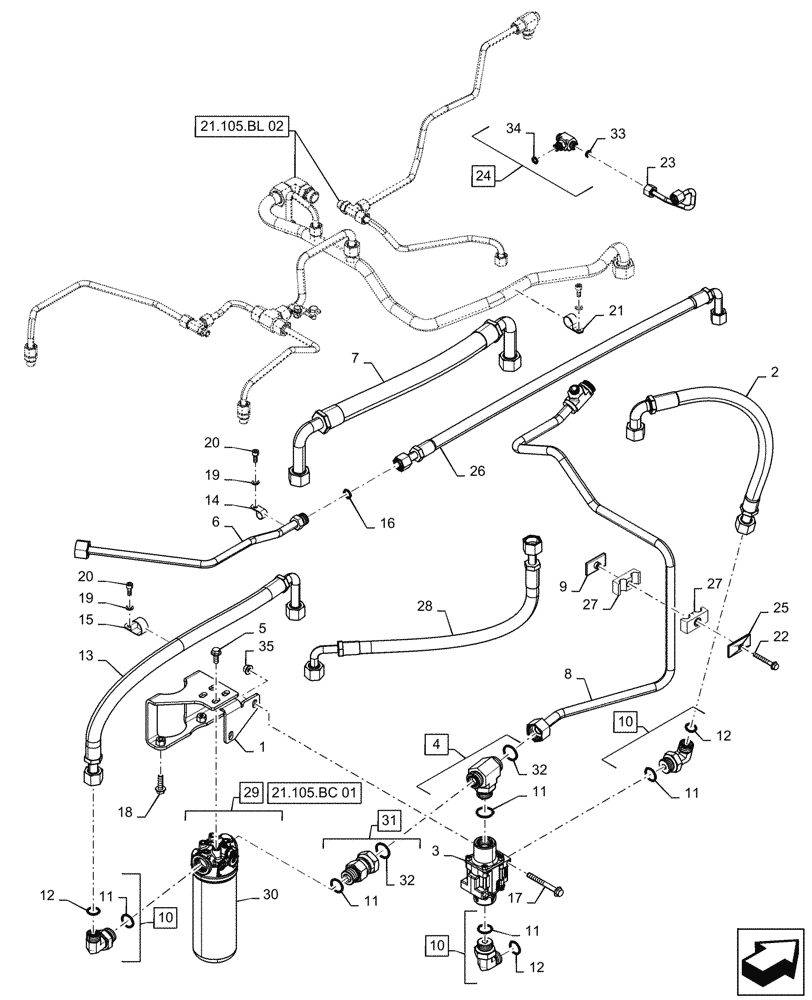

Схема запчастей Case IH MAGNUM 280 - (21.105.BL[01]) - TRANSMISSION LUBRICATION LINES, POWERSHIFT (21) - TRANSMISSION
5
13
11
24
11
32
20
12
11
15
8
29
35
31
25
12
11
21.105.bc 01
2
6
27
12
7
33
3
10
26
16
1
20
32
30
34
19
28
4
17
14
10
23
27
22
21
11
10
19
9
21.105.bl 02
18

Артикул

Название

Примечание

Количество

1

84547851

BRACKET

Filter and Valve Mounting

1шт.

2

84592181

HOSE

Charge Pump to Bypass Valve

1шт.

3

84577551

VALVE

Thermostatic Cooler Bypass, Serial Range: -ZGR_03001

1шт.

3

47972636

VALVE

Thermostatic Cooler Bypass, Start Serial: ZGR_03002

1шт.

3

47976594

SERVICE KIT

Thermostatic Cooler Bypass Valve

1шт.

4

700-404

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 11, 32

1шт.

5

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

4шт.

6

84333101

TUBE

PTO Lube, Powershift

1шт.

7

84354805

HOSE,25.4mm ID x 680mm L, SAE 100R16

Pump to Filter Inlet

1шт.

8

84340738

TUBE

Oil Cooler Return

1шт.

9

384871A1

PLATE

Hose Clamp

1шт.

10

86579698

90 ELBOW,1 3/16"-12 ORFS x M33 x 2 ORB

Incl 11, 12

3шт.

11

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

5шт.

12

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

13

84331762

HOSE,19.05mm ID x 800mm L, SAE 100R16

Filter to Filter

1шт.

14

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

15

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

16

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

17

844-10090

BOLT,Hvy Hex, M10 x 90mm, Cl 8.8

2шт.

18

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

20

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

3шт.

21

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

22

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

23

282278A1

HYD TUBE,0.375" OD, 120, 50 mm Length

Drop Box Rear Bearing Lube

1шт.

24

700-401

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 33, 34

1шт.

25

1347127C1

PLATE

1шт.

26

84356773

HOSE,15.88mm ID x 970mm L, SAE 100R1

PTO Lube

1шт.

27

87000140

CLAMP,Tube, 19.05mm

1шт.

28

84355281

HOSE,15.88mm ID x 700mm L, SAE 100R1

Lube Relief

1шт.

29

47768619

FILTER ASSY

Hydraulic Oil, Transmission Oil, Incl 30

1шт.

30

84202794

HYDRAULIC OIL FILTER,Spin On, 9.41"

1шт.

31

84340192

HYD CONNECTOR

Incl 11, 32

1шт.

32

87473574

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

33

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

34

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

35

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

2шт.

Выбрано товаров: 37
