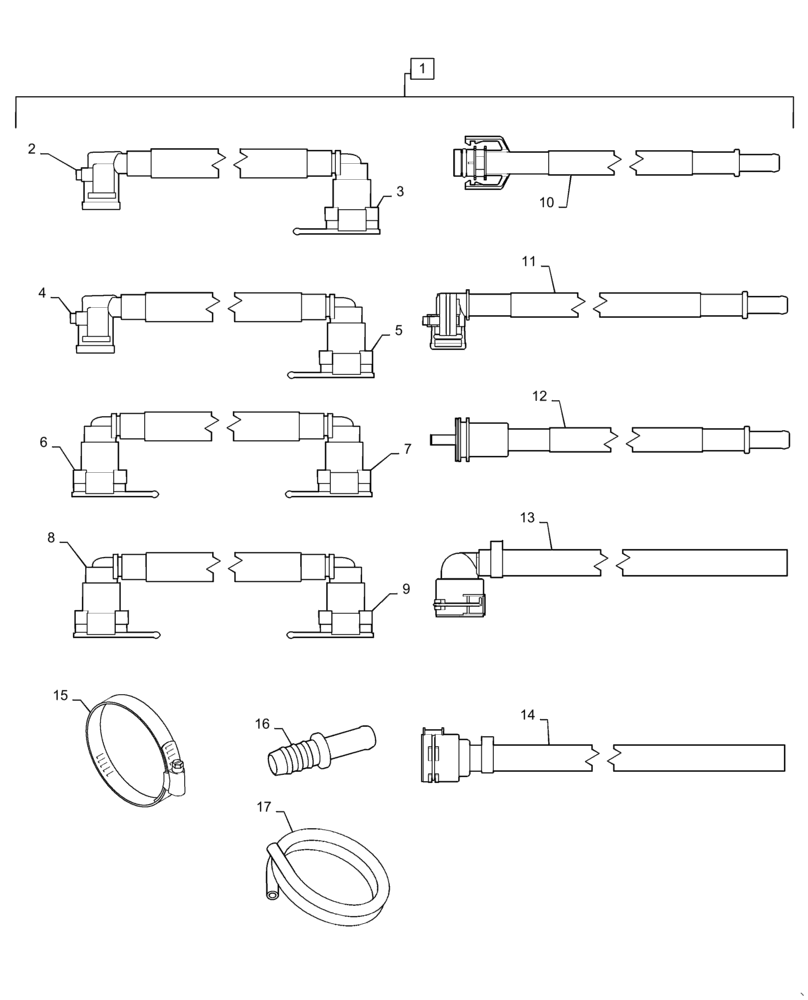

Запчасти Case IH MAGNUM 280 (10.500.AD[01]) - DEF/ADBLUE - LIMP HOME KIT (10) - ENGINE

1

84480359

SVC MAINTENANCE KIT

DEF/ADBLUE Lines - Limp Home Service Kit - Incl 2 - 17

1шт.

2

84480269

HOSE

DEF/ADBLUE Line - Tank to Pumping Module - 1500mm Length; Incl in 1

1шт.

3

84480337

HOSE

DEF/ADBLUE Line - Tank to Pumping Module - 5500mm Length; Incl in 1

1шт.

4

84480332

HOSE

DEF/ADBLUE Line - Pumping Module to Tank - 1500mm Length; Incl in 1

1шт.

5

84480339

HOSE

DEF/ADBLUE Line - Pumping Module to Tank - 5500mm Length; Incl in 1

1шт.

6

84480341

HOSE

DEF/ADBLUE Line - Dosing Module to Pumping Module - 1500mm Length; Incl in 1

1шт.

7

84480342

HOSE

DEF/ADBLUE Line - Dosing Module to Pumping Module - 5500mm Length; Incl in 1

1шт.

8

84480343

HOSE

DEF/ADBLUE Line - Pumping Module to Dosing Module - 1500mm Length; Incl in 1

1шт.

9

84480345

HOSE

DEF/ADBLUE Line - Pumping Module to Dosing Module - 5500mm Length; Incl in 1

1шт.

10

47800925

HOSE

Coolant Line - SV246 NG12 Female Connector - 302mm Length; Incl in 1

1шт.

11

47800931

HOSE

Coolant Line - SV246 NG12 90 Degree Female Connector - 302mm Length; Incl in 1

1шт.

12

47818946

HOSE

Coolant Line - SV246 NG12 Male Connector - 302mm Length; Incl in 1

1шт.

13

47818948

HOSE

Coolant Line - NORMA PS3 NW12-10-90 degree - 500mm Length; Incl in 1

1шт.

14

47818947

HOSE

Coolant Line - NORMA PS3 NW12-10-0 degree - 500mm Length; Incl in 1

1шт.

15

84480356

CLAMP

Hose Clamp 12-22 - Coolant Only; Incl in 1

2шт.

16

84480601

UNION

Connector Tube - NW10 and Hose 9 x 3.25; Incl in 1

1шт.

17

84480613

TUBE

EPDM Hose for Coolant - 9 x 3.25 - 10m Length; Incl in1

1шт.
