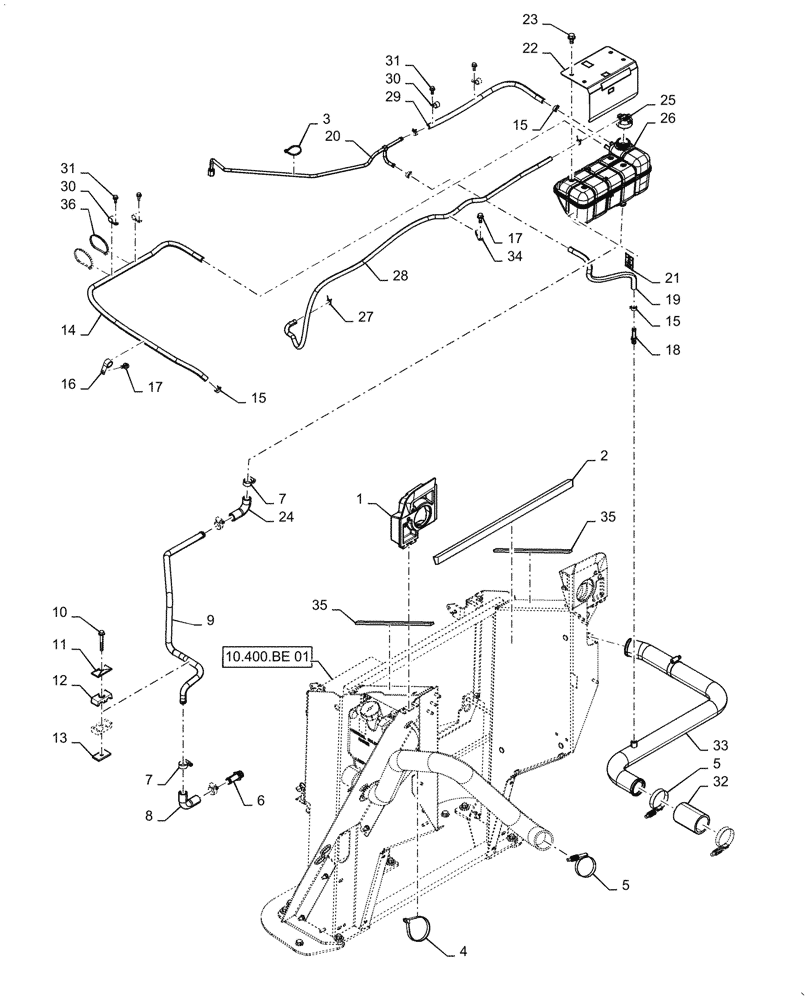

Запчасти Case IH MAGNUM 280 (10.400.BE[02]) - RADIATOR & RELATED PARTS (10) - ENGINE

1

84302508

SEAL

CAC, Hot Side

1шт.

2

84256577

SEALING STRIP,25.4mm W x 630mm L x 25.4mm Thk

Radiator

1шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

4

86991007

CABLE TIE,509mm L

20 x .28:, Nylon Black

1шт.

5

L115548

CLAMP,57.15mm - 79.38mm

Hose, 2.250/3.125 Constant Torque

3шт.

6

217-398

FITTING,3/4" Hose Barb x 7/8" - 14 Male ORB

1шт.

7

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

4шт.

8

84293591

RADIATOR HOSE

Lower Deaeration Tank

1шт.

9

47579447

TUBE

Lower Deaeration To Engine

1шт.

10

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

11

1347127C1

PLATE

Tube Clamp

1шт.

12

87000140

CLAMP,Tube, 19.05mm

2 Hole 19.05-19.05mm Dia Ribbed

1шт.

13

384871A1

PLATE

Hose Clamp

1шт.

14

47670269

HOSE

Deaeration

1шт.

15

1348264C1

HOSE CLAMP

Spring Steel

6шт.

16

516-22190

CLAMP,J, 13/16" Insul, 3/8" Bolt

1шт.

17

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

18

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

19

84178005

HOSE,9.52mm OD x 15.88mm OD x 430mm L

Deaeration

1шт.

20

84600439

HYD TUBE

Deaeration Tank To Radiator

1шт.

21

47488993

DECAL

Coolant - Actifull OT

2шт.

22

84595284

HEAT SHIELD

Coolant Expansion Reservoir

1шт.

23

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

24

84178842

RADIATOR HOSE

Lower Deaeration Tank

1шт.

25

84172565

CAP

Degas Bottle 1.2 Bar

1шт.

26

47427055

RESERVOIR, COOLANT E

1шт.

27

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

28

87442539

HOSE,6.35 mm ID x 1490.00 mm, SAE 30R7

Deaeration Tank To Tube

1шт.

29

84131323

HOSE,9.52mm ID x 15.88mm OD x 528mm L

Deaeration

1шт.

30

87532034

CLAMP,15.9mm, Coat, 7.1mm Bolt Hole, P Type

15.9mm

4шт.

31

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

4шт.

32

433405A1

RADIATOR HOSE,56.40 mm ID x 100.00, SAE J20 or SAE 20R4 CLASS D1

Engine Outlet

1шт.

33

47547467

TUBE

Upper Radiator

1шт.

34

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

1шт.

35

84169543

SEAL

Charge Air Cooler

2шт.

36

A169433

CABLE TIE,304.8mm L

11.8 x .18", Nylon

2шт.
