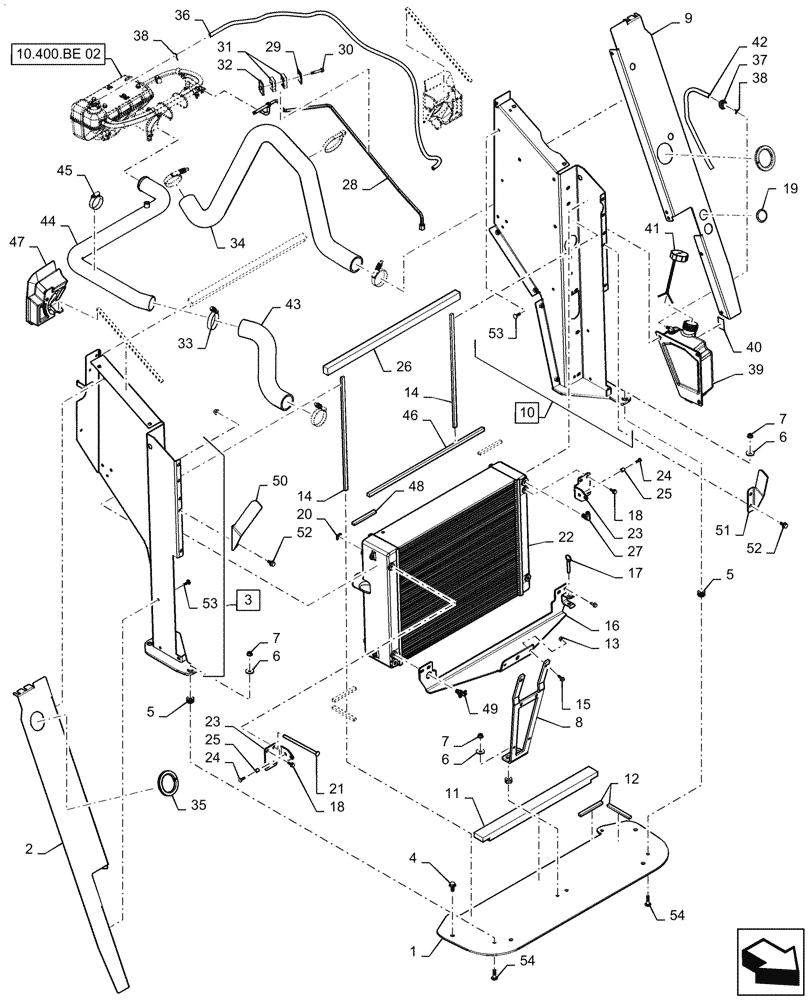

Запчасти Case IH MAGNUM 280 (10.400.BE[01]) - RADIATOR & RELATED PARTS (10) - ENGINE

1

84245381

SUPPORT

Radiator, Incl 54

1шт.

2

84534544

BRACKET

RH, Hood Seal

1шт.

3

84535236

SUPPORT

RH, Radiator; Incl 53, Serial Range: -ZGRF05300

1шт.

3

47971161

SUPPORT

RH, Radiator, Use With Hood Guide Rollers; Incl 53, Start Serial: ZGRF05301

1шт.

4

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

4шт.

5

84244058

RUBBER MOUNTING

ISO, Radiator

6шт.

6

495-81148

WASHER,7/16" x 1 1/4" x .134"

6шт.

7

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

6шт.

8

84326466

BRACKET

Hood Latch

1шт.

9

84535237

BRACKET

LH, Hood Seal

1шт.

10

84535235

SUPPORT

LH, Radiator; Incl 53, Serial Range: -ZGRF05300

1шт.

10

47971164

SUPPORT

LH, Radiator, Use With Hood Guide Rollers, Incl 53, Start Serial: ZGRF05301

1шт.

11

84169525

SEALING STRIP,50mm W x 632mm L x 33mm Thk

Radiator

1шт.

12

87724950

SEALING STRIP,12.7mm W x 120mm L x 9mm Thk

Radiator

4шт.

13

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

10шт.

14

47674007

SEAL

Radiator

2шт.

15

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

16

84288717

BRACKET

Hood Latch

1шт.

17

86017630

HITCH PIN,9.53mm OD x 50.55mm L

Radiator

1шт.

18

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

9шт.

19

14508087

PLUG,40mm ID

Retaining Lip Type B

2шт.

20

47655553

CLIP

Pin, Radiator

4шт.

21

84256805

PIN,9.65mm OD x 172.81mm L

Radiator

4шт.

22

84262310

RADIATOR

5 Row

1шт.

23

84282099

BRACKET

FCC Hinge

2шт.

24

607-8020

BOLT,Hex, M8 x 20mm, Cl 10.9

2шт.

25

84175442

SPACER

FCC

2шт.

26

47447711

SEALING STRIP,31.75mm W x 728mm L x 25.4mm Thk

CAC To Radiator

1шт.

27

578384

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, NPTF

1шт.

28

84600439

HYD TUBE

Deaeration Tank To Radiator

1шт.

29

384870A1

PLATE

Hose Clamp

1шт.

30

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

31

87000148

CLAMP

2 Hole 9.52-9.52mm Dia Ribbed

1шт.

32

384871A1

PLATE

Hose Clamp

1шт.

33

L115548

CLAMP,57.15mm - 79.38mm

Hose, 2.250/3.125 Constant Torque

3шт.

34

84362319

RADIATOR HOSE

Outlet

1шт.

35

84287010

TRIM

Radiator Edge, Black

2шт.

36

87442539

HOSE,6.35 mm ID x 1490.00 mm, SAE 30R7

Deaeration Tank To Tube

1шт.

37

87307909

GROMMET

No 48

2шт.

38

214-1308

HOSE CLAMP,#8, 1/2", Spring

1шт.

39

84276099

BOTTLE

Coolant Recovery

1шт.

40

47757331

DECAL

Coolant - Actifull OT

1шт.

41

47814440

FILLER CAP

Coolant Recovery Bottle

1шт.

42

242070A1

HOSE,7.9mm ID x 450mm L, SAE 30R7

CRB To Atmosphere

1шт.

43

47551519

HOSE

Radiator Outlet

1шт.

44

47547467

TUBE

Upper Radiator

1шт.

45

214-3248

HOSE CLAMP,57mm - 79mm

1шт.

46

47547466

SEAL

Radiator

1шт.

47

84302509

SEAL

CAC, Cold Side

1шт.

48

84535943

SEALING STRIP

Hood Sealing Plate

2шт.

49

217-92

COCK

Radiator, 1/4 NPTF Drain

1шт.

50

47947319

GUIDE

Hood, RH, Start Serial: ZGRF05301

1шт.

51

47947320

GUIDE

Hood, LH, Start Serial: ZGRF05301

1шт.

52

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

, Start Serial: ZGRF05301

4шт.

53

86639113

STUD,Weld, M8 x 25mm

21шт.

54

87016119

STUD,Weld, M10 x 40

6шт.
