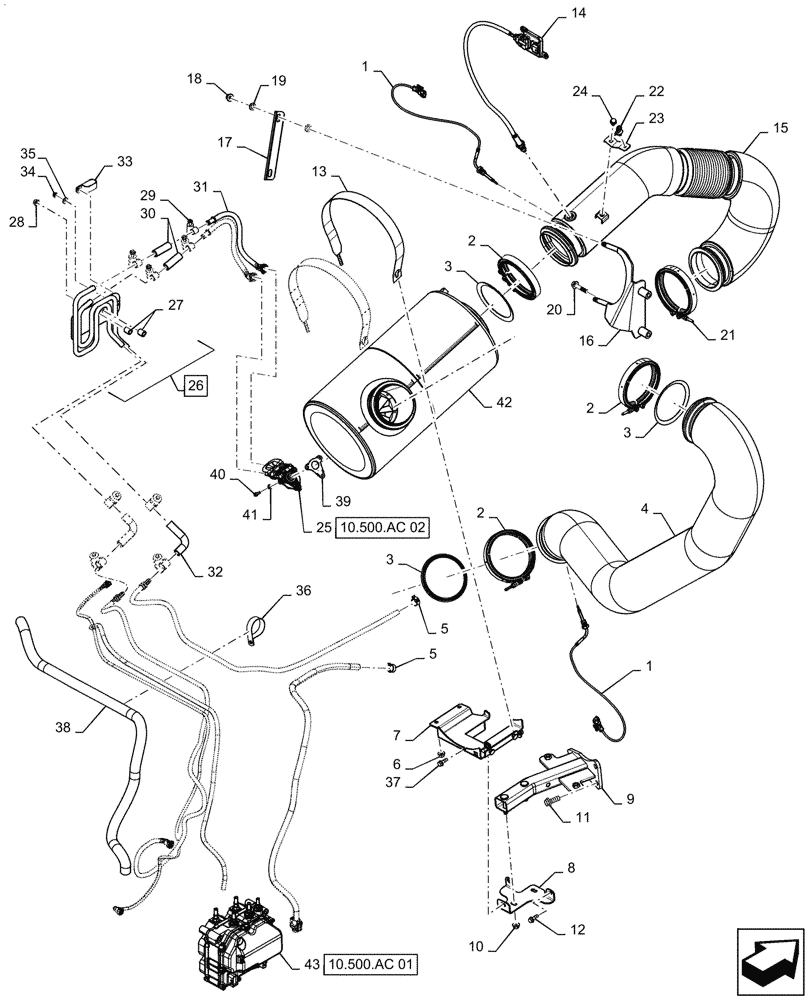

Запчасти Case IH MAGNUM 280 (10.254.AI[02]) - EXHAUST SYSTEM - TIER 4B (10) - ENGINE

1

47478880

TEMPERATURE SENDER,50mm, Closed

Temperature

2шт.

2

47368239

CLAMP

4.5, Marmon, Tier 4B

3шт.

3

47368248

GASKET,1.3mm Thk

4.5 Exhaust

3шт.

4

47424748

TUBE

SCR To Doc

1шт.

5

1348264C1

HOSE CLAMP

2шт.

6

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

7

47476682

SUPPORT

Saddle Plate

1шт.

8

47541294

SUPPORT

Saddle Mount

1шт.

9

47536773

SUPPORT

Doc Mounting

1шт.

10

87016577

NUT,M10

Hex Flange M10 10 PHC

2шт.

11

857-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 10.9

3шт.

12

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.

13

84561774

STRAP

Doc Mount

2шт.

14

84422747

SENSOR,NOx, 12V, 5 Pin, 615mm L

NOX, 12v Gen 2.5, BC4 Cap, 615mm

1шт.

15

47557446

TUBE

SCR, With Flex

1шт.

16

47416008

SUPPORT

Exhaust Tube

1шт.

17

47416078

CLAMP

Exhaust Tube

1шт.

18

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

20

87675532

BOLT,Hex, M10 x 45mm, Cl 10.9

2шт.

21

47423212

CLAMP

Turbo, Band, C9, C11, C13SST

1шт.

22

82033028

CABLE TIE,170mm L

With Fir Tree, 170mm

2шт.

23

47564160

BRACKET

Flex Tube, Sensor Support

1шт.

24

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

25

47506932

INJECTOR, EMISSIONS

DM 2.5, 7.25KG/HR, Incl 44 - 46

1шт.

Used on Magnum 250, 280

1шт.

25

47506932R

REMAN-INJEC EMISSION

Used on Magnum 250, 280

1шт.

25

47506932C

CORE-INJEC EMISSION

Return Number

1шт.

25

47506948

INJECTOR, EMISSIONS

DM 2.5, 12KG/HR, Incl 44 - 46

1шт.

Used on Magnum 310, 340, 380

1шт.

25

47506948R

REMAN-INJEC EMISSION

Used on Magnum 310, 340, 380

1шт.

25

47506948C

CORE-INJEC EMISSION

Return Number

1шт.

26

47586252

TUBE

SCR Hose Bundle; Incl 27

1шт.

27

567987R1

SPACER,10.3mm ID x 15.88mm OD x 17.5mm L

1шт.

28

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

29

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

8шт.

30

47595199

FUEL HOSE

2шт.

31

47587353

HOSE

Doser

2шт.

32

47595201

ELBOW

Hose

2шт.

33

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

1шт.

34

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

35

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

36

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

Closed 50.8mm Insul 3/8 Bolt

1шт.

37

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

38

47594783

HOSE

Assy, DEF/ADBLUE, SM To DM

1шт.

39

47605145

GASKET,2.4mm Thk

Injector

1шт.

40

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

3шт.

41

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

42

47595946

CATALYST

5.23L, Muffler Reference Code R-9.50-94.8-130-19-19

1шт.

Used on Magnum 250, 280

1шт.

42

47595947

CATALYST

6.4L, Muffler Reference Code R-9.50-93.6-130-19-19

1шт.

Used on Magnum 310, 340, 380

1шт.

43

47565934

ECU

DENOX 2.2 Supply Module

1шт.

Used on Magnum 250, 280

1шт.

43

47565934R

REMAN ELECT CONTROL

Used on Magnum 250, 280

1шт.

43

47565934C

CORE-ELECTRONIC CONT

Return Number

1шт.

43

47565939

ECU

DENOX 2.2 Supply Module 12v High Flow

1шт.

Used on Magnum 310, 340, 380

1шт.

43

47565939R

REMAN ELECT CONTROL

Used on Magnum 310, 340, 380

1шт.

43

47565939C

CORE-ELECTRONIC CONT

Return Number

1шт.

44

47364264

REPAIR KIT

Coolant Connector, Emissions Injector, Not Illustrated

1шт.

45

47364085

REPAIR KIT

Protective Cap, Emissions Injector, Not Illustrated

1шт.

46

47364140

GASKET,30mm OD, Rubber, Black

Gasket, Emissions Injector, Not Illustrated

1шт.
