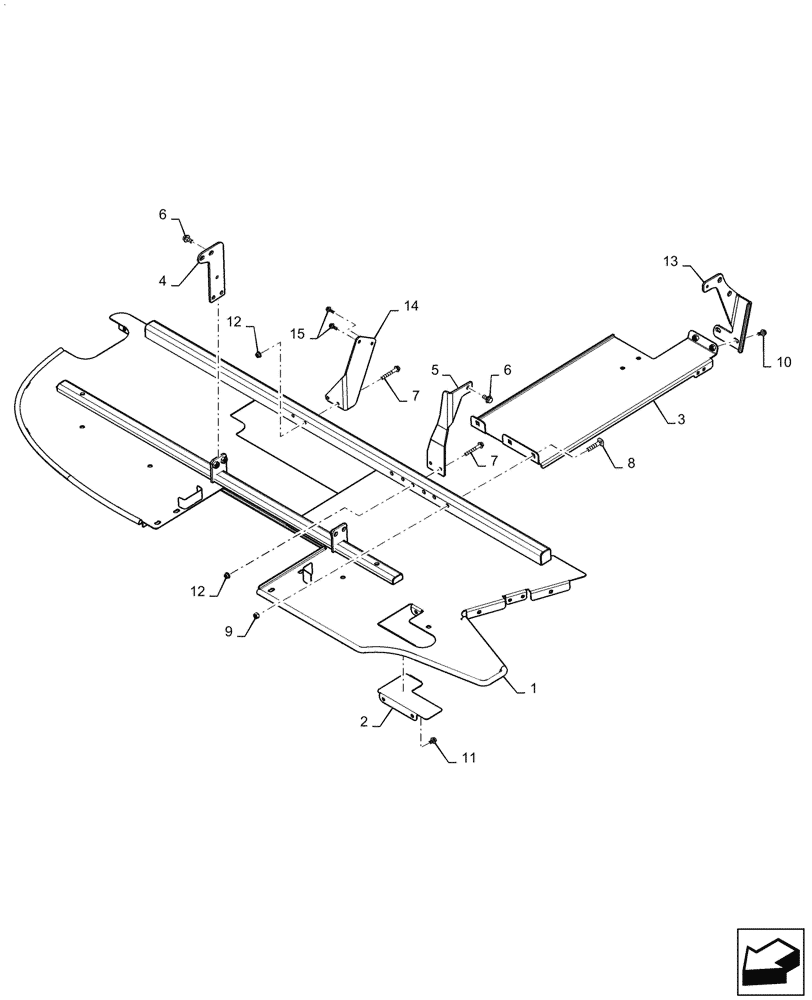

Запчасти Case IH MAGNUM 280 (10.216.AI[03]) - FUEL TANK SUPPORTS - PST, TIER 4B (10) - ENGINE

1

47684902

SUPPORT

Fuel Tanks

1шт.

2

47373098

COVER

Urea Sensor

1шт.

3

47373073

SUPPORT

Fuel Tanks

1шт.

4

84531940

SUPPORT

Front To Dropbox

2шт.

5

84181556

STRAP

LH Rear, Fuel Tank

1шт.

6

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

9шт.

7

857-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

4шт.

8

84227693

CARRIAGE BOLT,Reg Sq Nk, M12 x 1.75 x 65mm, Cl 8.8

M12 x 65 8.8 ZND

3шт.

9

829-1412

NUT,M12, Cl 10.9

3шт.

10

857-10025

BOLT,Hvy Hex, M10 x 25mm, Cl 10.9

2шт.

11

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

12

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

13

84425572

BRACKET

Rear Axle Carrier, Std Axle (4" or 4.5")

1шт.

13

47419392

BRACKET

Rear Axle Carrier, HD Axle (5")

1шт.

14

84181555

BRACKET, SUPPORTING

RH Rear, Fuel Tank

1шт.

15

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.
