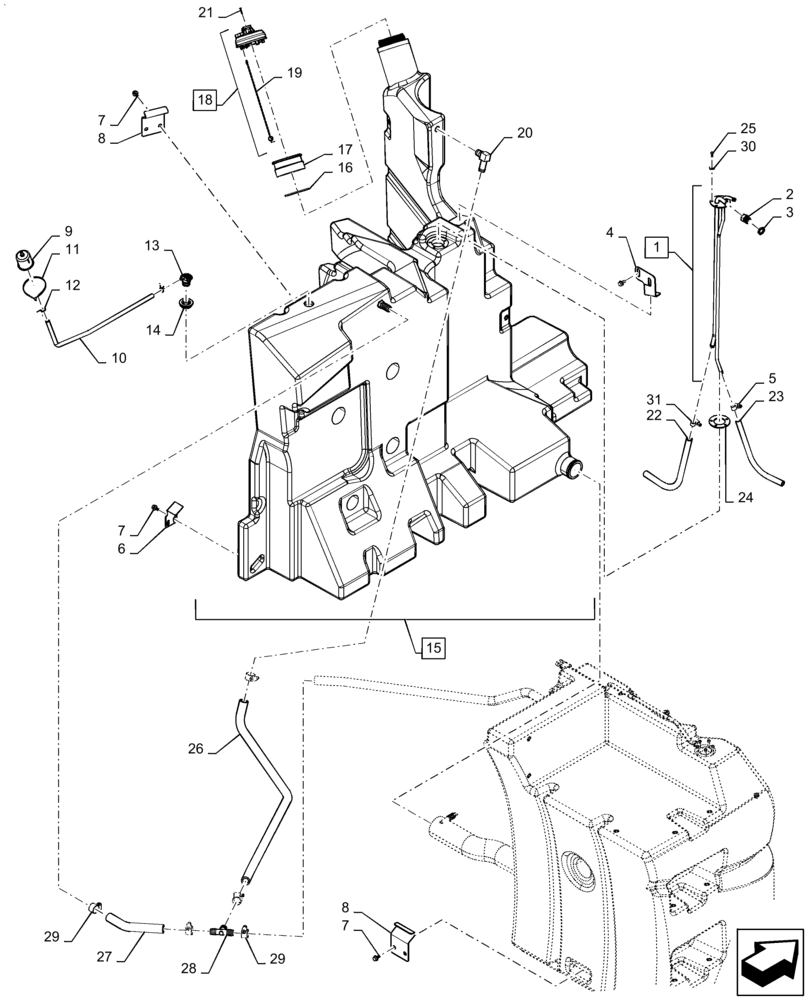

Запчасти Case IH MAGNUM 280 (10.216.AI[02]) - FUEL TANK & ASSOCIATED PARTS, LH - PST, TIER 4B (10) - ENGINE

1

47384776

PIPE

Assy, Fuel Supply/Return; Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

FITTING Incl in 1

1шт.

3

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

47508404

BRACKET

Fuel Tank Hold Down

1шт.

5

1348264C1

HOSE CLAMP

1шт.

6

47379257

BRACKET

LH, Rear, Fuel Tank Hold Down

1шт.

7

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

8

47508940

BRACKET

RH, Rear, Fuel Tank Hold Down

1шт.

9

87433010

BREATHER

Fuel Tank

1шт.

10

275801A1

FUEL HOSE

Rollover Valve Vent

1шт.

11

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.

12

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

13

275800A1

VALVE STEM

Rollover, Fuel Tank

1шт.

14

255094A1

GROMMET

Rollover, Fuel Tank

1шт.

15

47496502

FUEL TANK

LH, TIER 4B; Incl 16 - 21, Serial Range: -ZGR_02229

1шт.

15

47939602

FUEL TANK

LH, TIER 4B; Incl 16 - 21, Start Serial: ZGR_02230

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET, Fuel Cap Adapter, Incl in 15

1шт.

17

NSS

NOT SOLD SEPARAT

ADAPTER, Fuel Cap, Incl in 15

1шт.

18

47421724

LOCKABLE FUEL CAP

Fuel Tank; Incl 19

1шт.

19

47421650

CHAIN

Fuel Cap Tether

1шт.

20

217-129

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

1шт.

21

47429101

SELF-TAP SCREW

6-20 x 3/4 AB Pan

1шт.

22

84197988

FUEL HOSE

Supply, 400mm

1шт.

23

84197990

FUEL HOSE

Return, 300mm

1шт.

24

87537695

GASKET

Fuel Sender

1шт.

25

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

5шт.

26

47601628

HOSE

Fuel, Tank Air Cross Over

1шт.

27

47601652

HOSE

Fuel, Tank Air Cross Over

1шт.

28

388057A1

FITTING

Tee 3/4 Barb Nylon

1шт.

29

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

4шт.

30

86509828

LOCK WASHER,M5

5шт.

31

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

1шт.
