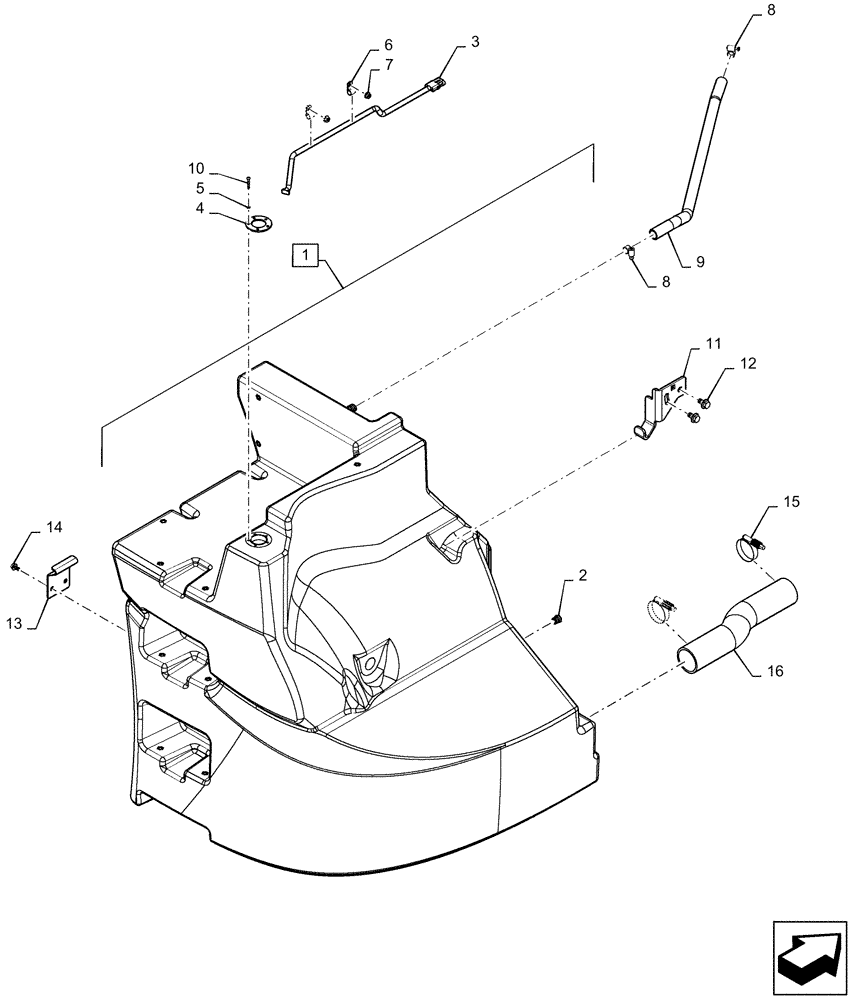

Запчасти Case IH MAGNUM 280 (10.216.AI[01]) - FUEL TANK & ASSOCIATED PARTS, RH - PST, TIER 4B (10) - ENGINE

1

47546338

FUEL TANK

RH, TIER 4B; Incl 2

1шт.

2

84466043

DRAIN PLUG

Fuel Tank

1шт.

3

47457712

SENDER UNIT

Fuel Tank Level 35.5"

1шт.

4

87537695

GASKET

Fuel Sender

1шт.

5

86509828

LOCK WASHER,M5

5шт.

6

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

7

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

8

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

9

47607780

HOSE

Fuel Tank, Cross Over

1шт.

10

440-11020

SCREW,Cross Pan Hd, #10-24 x 1 1/4"

5шт.

11

47371495

BRACKET

RH, Fuel Tank Hold Down

1шт.

12

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

2шт.

13

47508940

BRACKET

RH, Rear, Fuel Tank Hold Down

1шт.

14

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

15

L115548

CLAMP,57.15mm - 79.38mm

Hose, 2.250/3.125 Constant Torque

2шт.

16

84361000

FUEL HOSE

Cross Over

1шт.
