Запчасти Case IH MAGNUM 280 (55.785.AF[03]) - VAR - 424263, 429377 - COLOR DISPLAY - LARGE, MOUNTING (55) - ELECTRICAL SYSTEMS

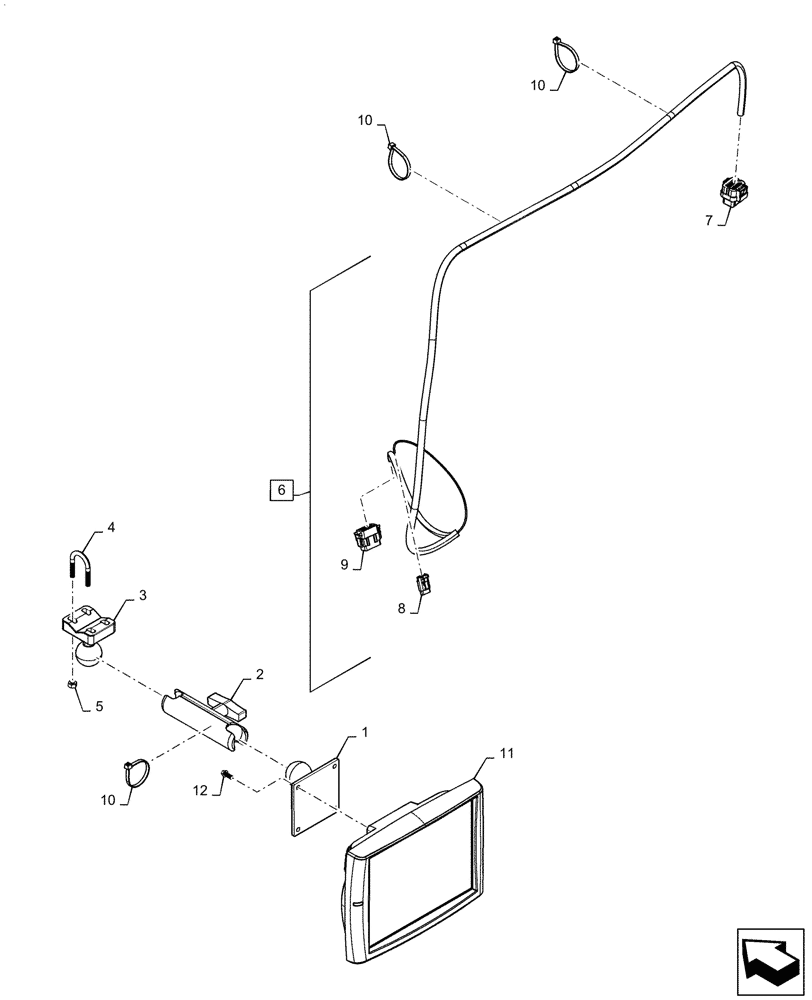

Схема запчастей Case IH MAGNUM 280 - (55.785.AF[03]) - VAR - 424263, 429377 - COLOR DISPLAY - LARGE, MOUNTING (55) - ELECTRICAL SYSTEMS
10
2
10
12
7
6
10
4
3
1
8
9
5
11

Артикул

Название

Примечание

Количество

1

87386398

SUPPORTING ARM

Square Mount 75x75

1шт.

2

87284257

ARM

1шт.

3

87284259

PLATE

Base

1шт.

4

86632541

U-BOLT,1/4” - 20, 1.75” L x 1” W

2шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

6

87671834

HARNESS

Terminal

1шт.

7

87410948

CONTACT HOUSING,Female, 26 Pole

1шт.

8

276424A1

ELEC CONNECTOR,Female, 3 Pin

To Cab Harness

1шт.

9

223688A1

CONNECTOR, ELEC

Jumper Harness

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

11

84518934

DISPLAY

Touchscreen Fred II (Intelleview IV)

1шт.

11

47932897R

REMAN-ELECT MONITOR

Reman Touchscreen Fred II (Intelleview IV), Phase 3

1шт.

11

47932897C

CORE-MONITOR

Return Number

1шт.

12

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

4шт.

Выбрано товаров: 14
