Запчасти Case IH MAGNUM 280 (55.680.AA[07]) - CONVERSION KIT, AUTOGUIDANCE, POWERSHIFT (55) - ELECTRICAL SYSTEMS

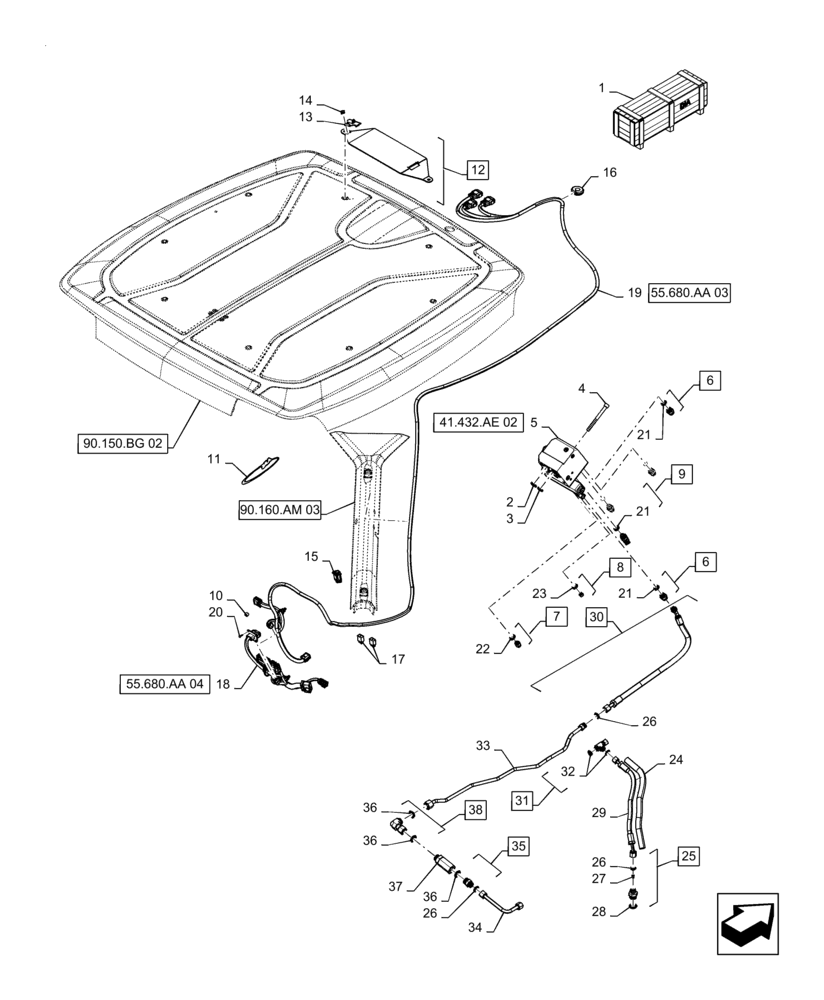

Схема запчастей Case IH MAGNUM 280 - (55.680.AA[07]) - CONVERSION KIT, AUTOGUIDANCE, POWERSHIFT (55) - ELECTRICAL SYSTEMS
21
36
41.432.ae 02
10
38
55.680.aa 03
26
27
25
21
90.160.am 03
17
16
1
26
7
37
5
21
2
35
31
28
36
18
23
14
3
32
15
34
90.150.bg 02
30
6
20
36
55.680.aa 04
8
29
26
33
13
4
6
12
19
11
9
22
24

Артикул

Название

Примечание

Количество

1

47836147

KIT

Non-Autoguidance to Autoguidance Conversion, Powershift, Incl 2 - 38

1шт.

2

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

4шт.

3

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

4

86625211

HEX SOC SCREW,M12 x 1.75 x 130mm, Cl 8.8

Autoguidance Control Valve Mounting

2шт.

5

47746341

CONTROL VALVE

Autoguidance HF

1шт.

6

87331075

HYD CONNECTOR,M18 x 1.5 Male ORB x -08 Fem STC

Ports T, R, L, P; Incl 21

4шт.

7

87331073

HYD CONNECTOR,M14 x 1.5 Male ORB x -06 Fem STC

Port LS; Incl 22

1шт.

8

9672438

PLUG,7/16" - 20 ORB

Port PX; Incl 23

1шт.

9

87345924

FITTING,45 Degree, M18 x 1.5 ORB x -08 Fem STC

Port P; Incl 21

1шт.

10

832-10405

NUT,M5 x .8, Cl 8

NAV II Controller Mounting

4шт.

11

84144149

DECAL

AFS Logo

2шт.

12

87552885

BRACKET

Autoguidance Antenna, Incl 13 - 14

1шт.

13

87308870

LATCH

Under-Center, With Padlock Hasp

1шт.

14

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

Latch to Bracket

2шт.

15

87711789

AUTO GUIDANCE DISENG

Rocker Switch, Autoguidance Disengage

1шт.

16

87330628

GROMMET

GPS Antenna Harness

1шт.

17

84543528

RELAY,12V, 20A, Micro

Micro, SPDT

2шт.

18

47562404

WIRE HARNESS

Autoguidance Chassis

1шт.

19

47562537

WIRE HARNESS

GPS Antenna

1шт.

20

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

RDL Connector Mounting

14шт.

21

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

22

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

23

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

24

408412A1

CONDUIT

1шт.

25

87361919

ORIFICE

Incl 26 - 28

1шт.

26

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

27

133519C1

SCREEN

1шт.

28

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

29

87366166

HOSE,9.5mm ID x 793mm L

Autoguidance LS Bleed

1шт.

30

84127341

HOSE,12.7mm ID x 700mm L

Steering Supply, Powershift, With Autoguidance, Incl 26

1шт.

31

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 32

1шт.

32

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

33

87620401

HYD TUBE,12.70 mm OD x 807 mm L

Steering Supply, After Filter

1шт.

34

87620399

HYD TUBE,12.70 mm OD x 142.4 mm L

Steering Supply, Before Filter

1шт.

35

201-135

HYD CONNECTOR,13/16" - 16 ORFS x 9/16" - 18 ORFS

Incl 26, 36

1шт.

36

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

37

87319429

FILTER,1" - 14 ORFS x 1" - 14 THREADED

Steering Supply, Hydraulic Oil, In-line

1шт.

38

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 36

1шт.

Выбрано товаров: 38
