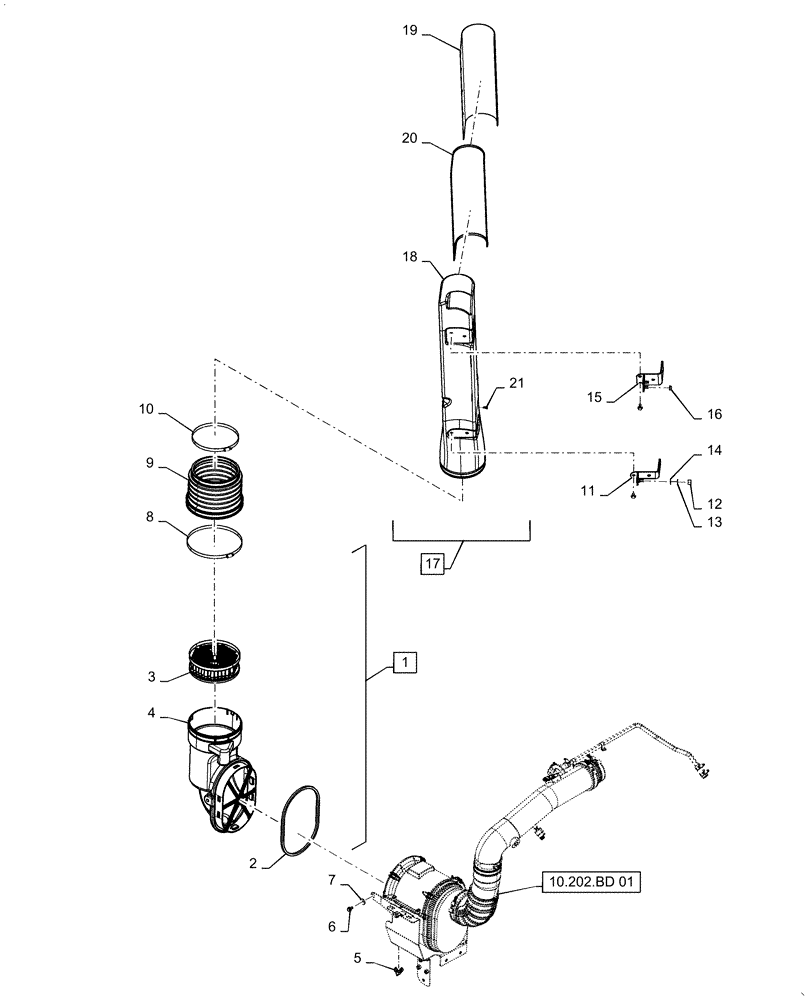

Запчасти Case IH MAGNUM 280 (10.202.BD[02]) - AIR INTAKE (10) - ENGINE

1

47727040

DUCT

Precleaner Assy, 78 Tube; Incl 2 - 4

1шт.

2

47384808

RUBBER SEAL

Duct Precleaner

1шт.

3

47727038

CLEANER

Precleaner 78 Tube

1шт.

4

47482926

DUCT

Air Front

1шт.

5

47428828

DUST VALVE

Vacuator

1шт.

6

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

7

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

1шт.

8

47575637

HOSE CLAMP,10.25" - 11.12", Worm Gear

Wormgear 11.125 x 10.25 SST

1шт.

9

47464261

BELLOWS

Air Intake

1шт.

10

87562289

CLAMP,8.75" - 9.62", Worm Gear

Wormgear 9.625 x 8.75 SST

1шт.

11

47673394

BRACKET

Lower Intake

1шт.

12

412250

NUT,M8 x 1.25, Cl 8

1шт.

13

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

1шт.

14

12601674

WAVE WASHER,Wave, M15

1шт.

15

47568086

SUPPORT

Upper Intake

1шт.

16

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

17

47597923

DUCT

A-Post Assy; Incl 18 - 21

1шт.

18

47449519

AIR DUCT

A-Post

1шт.

19

47449520

SCREEN

A-Post Air Duct

1шт.

20

NSS

NOT SOLD SEPARAT

FOAM, A-Post Air Duct, Incl in 17

1шт.

21

84291520

FASTENER

Push In, A Post Air Duct

11шт.
