Запчасти Case IH MAGNUM 280 (55.512.CS[06]) - VAR - 420010, 420012, 429373, 429374, 449058, 449059 - ELECTRIC ARMREST, CONTROL (55) - ELECTRICAL SYSTEMS

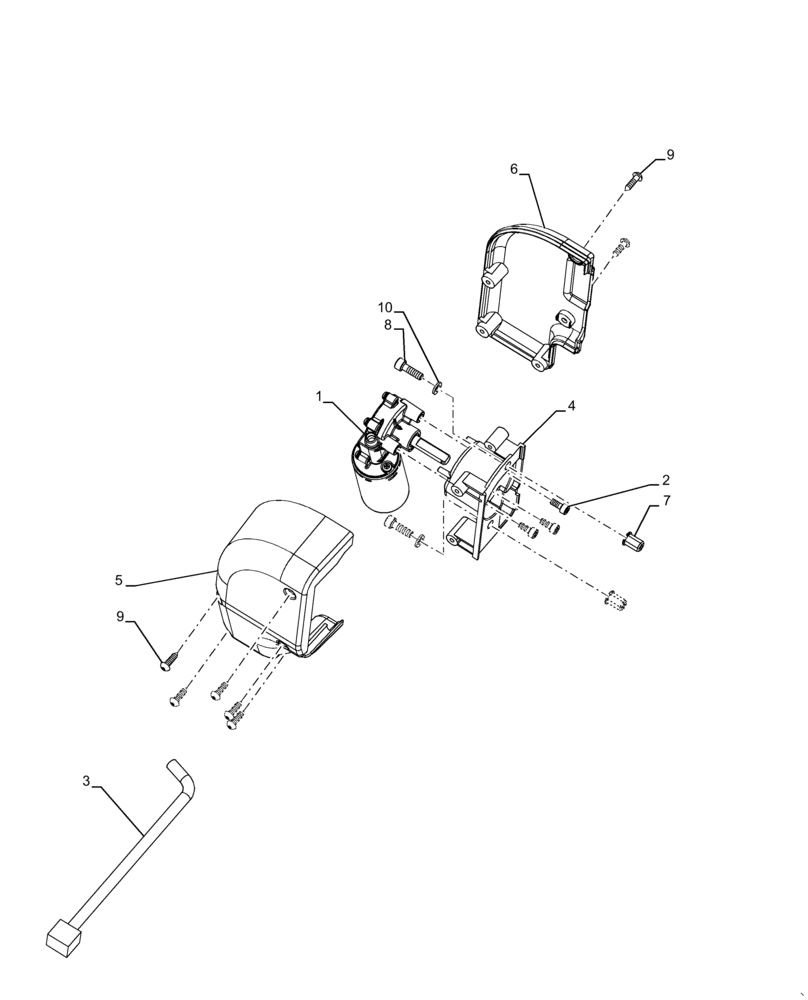

Схема запчастей Case IH MAGNUM 280 - (55.512.CS[06]) - VAR - 420010, 420012, 429373, 429374, 449058, 449059 - ELECTRIC ARMREST, CONTROL (55) - ELECTRICAL SYSTEMS
9
5
7
8
3
10
1
9
6
2
4

Артикул

Название

Примечание

Количество

1

84235755

ELECTRIC MOTOR,12V

GARU Electric Adjust

1шт.

2

86625213

HEX SOC SCREW,M5 x 12mm, Cl 8.8

3шт.

3

84195895

WIRE HARNESS

Armrest Electric Adjust

1шт.

4

84201758

HOLDER

Motor

1шт.

5

84201762

SHELL

Motor Adjust, Inside

1шт.

6

84201783

SHELL

Motor Adjust, Outside

1шт.

7

15624411

RIVET,Flat, M6 OD x 16mm L

6 x 16 Flat HD Threaded Tubular Hex

2шт.

8

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

2шт.

9

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

ST4.8 x 19 P/HD CR-Z CST

7шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

Выбрано товаров: 10
