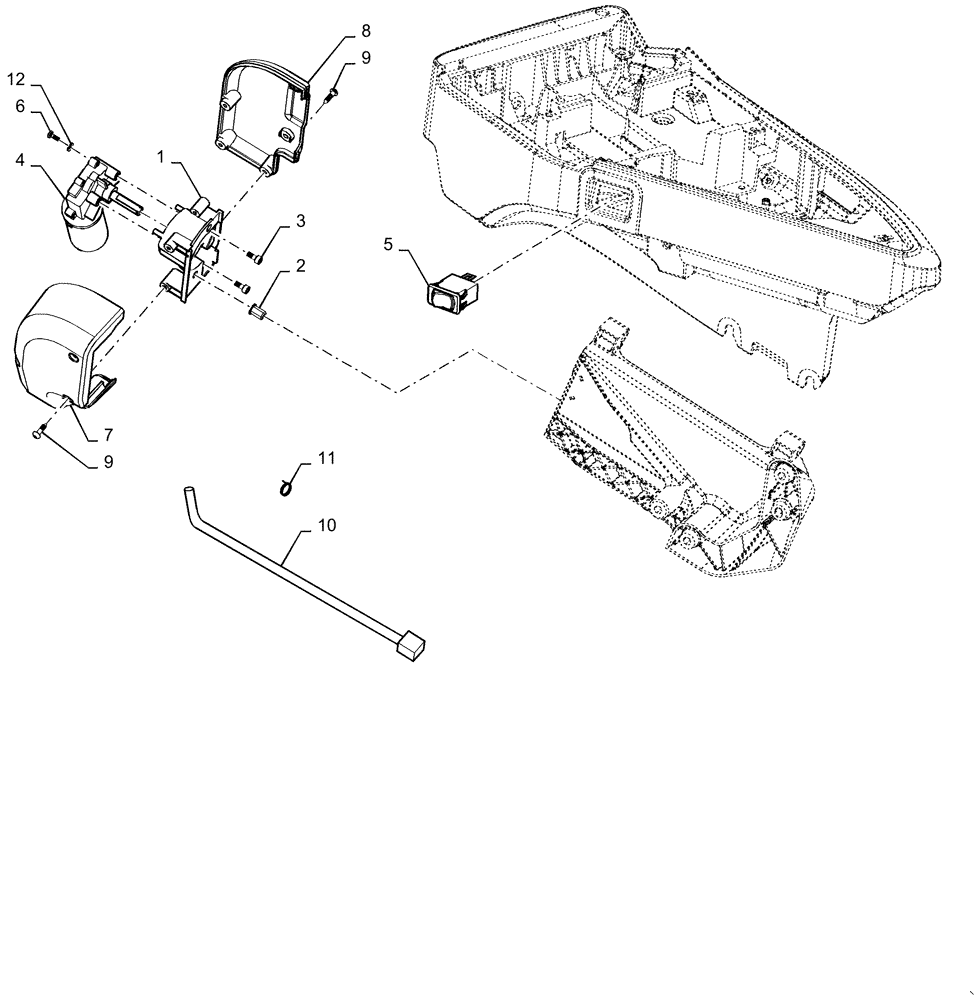

Запчасти Case IH MAGNUM 280 (55.512.CS[05]) - VAR - 420010, 420012, 429373, 429374, 449058, 449059 - ARMREST CONTROLS - ELECTRIC ADJUST (55) - ELECTRICAL SYSTEMS

1

84201758

HOLDER

Motor Adapter

1шт.

2

15624411

RIVET,Flat, M6 OD x 16mm L

6X16 Flat HD Threaded Tubular Hex

2шт.

3

86625213

HEX SOC SCREW,M5 x 12mm, Cl 8.8

3шт.

4

84235755

ELECTRIC MOTOR,12V

1шт.

5

87494094

SWITCH ASSY

Rocker, Armrest Adjust

1шт.

6

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

2шт.

7

84201762

SHELL

Motor Adjust, Inside

1шт.

8

84201783

SHELL

Motor Adjust, Outside

1шт.

9

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4.8X19 P/HD CR-Z CST BLO

7шт.

10

84195895

WIRE HARNESS

Armrest, Electric Adjust

1шт.

11

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

9шт.

12

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.
