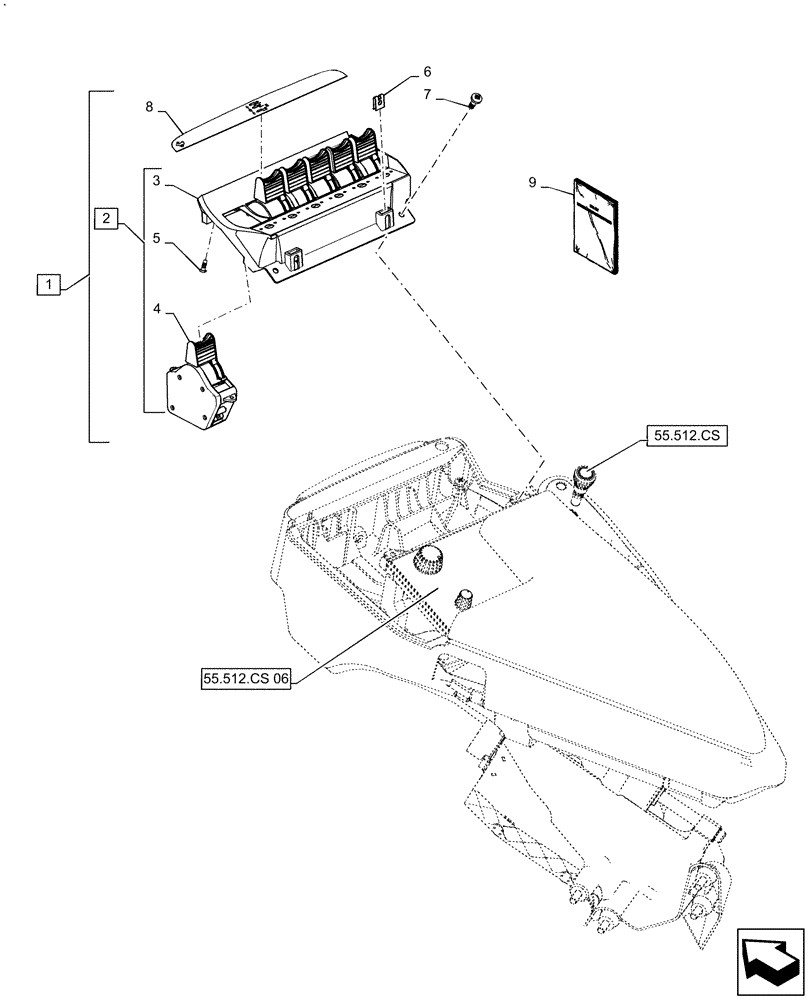

Запчасти Case IH MAGNUM 280 (55.512.CS[03]) - ARMREST CONTROLS - ELECTROHYDRAULIC REMOTE LEVERS, 6 REMOTES, CONTROL (55) - ELECTRICAL SYSTEMS

1

84398850

DIA KIT, TRACTOR

EHR, 6 Remotes; Incl 2 - 9

1шт.

2

84235842

SET OF LEVERS

EHR, 6 Remotes; Incl Wire Harnesses, NSS

1шт.

3

84235841

PANEL

EHR, 6 Remotes

1шт.

4

87486098

ROCKER SWITCH

EHR; Black

6шт.

5

50631

SCREW,Self Tapping, M6 x 0.5" OAL

Tapping #6-20x3/8

12шт.

6

84148337

SPRING NUT

Spring 4.8

5шт.

7

13276421

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 8.8, Full Thd

2шт.

8

84126455

DECAL

EHR, 6 Levers

1шт.

9

84398852

INSTRUCTION

Installation EHR, 6 Remote Paddles

1шт.
