Запчасти Case IH MAGNUM 280 (55.512.BG) - CONTROLS, RIGHT FENDER CONSOLE (55) - ELECTRICAL SYSTEMS

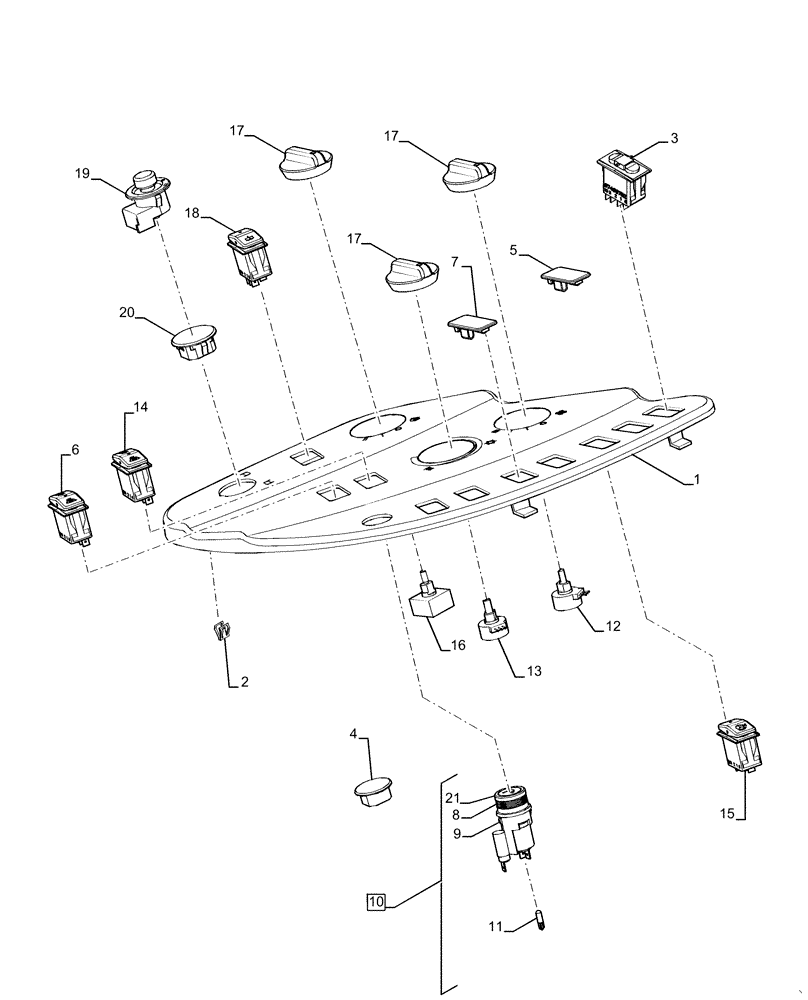

Схема запчастей Case IH MAGNUM 280 - (55.512.BG) - CONTROLS, RIGHT FENDER CONSOLE (55) - ELECTRICAL SYSTEMS
4
6
18
15
17
9
19
20
12
21
16
17
1
7
3
14
11
8
10
17
13
2
5

Артикул

Название

Примечание

Количество

1

87451319

PANEL

1шт.

2

278316A2

CLIP

Spring Steel

2шт.

3

87489752

SWITCH

EHR/Hitch Enable

1шт.

4

82022823

PLUG

Rubber Plug without Lighter

1шт.

5

406324A2

PLUG

Blanking

1шт.

6

87444610

SWITCH

Defog Momentary With LED

1шт.

7

126844A1

PLUG,1.427” x .62” , Plastic

for Beacon/Strobe Light

1шт.

8

87450396

MOUNTING PARTS

Ring

1шт.

9

87450395

BASE

Power Outlet

1шт.

10

432239A1

CIGARETTE LIGHTER

Incl 8, 9, 11, 21

1шт.

11

437324A1

BULB

14 Volt 1.12 Watts

1шт.

12

326281A1

POTENTIOMETER,10,000 Ohm

Blower Motor

1шт.

13

326282A1

POTENTIOMETER,10,000 Ohm

Cab Temperature

1шт.

14

87454558

SWITCH

Climate Control

1шт.

15

87711789

AUTO GUIDANCE DISENG

1шт.

16

357662A1

WINDSHIELD WIPER SWI

Front

1шт.

17

1331046C2

KNOB

Switch Panel

3шт.

18

86989939

WINDSHIELD WIPER SWI

Rear and Right Hand Side

1шт.

19

280627A1

SWITCH, MIRROR ADJUS

Mirror

1шт.

20

280628A1

PLUG

for Mirrors Switch

1шт.

21

87450397

CIGARETTE LIGHTER

Element, Pop-Out

1шт.

Выбрано товаров: 21
