Запчасти Case IH MAGNUM 280 (55.510.BP[16]) - CAB OUTSIDE WIRE HARNESS - ASN - ZERF08100 (55) - ELECTRICAL SYSTEMS

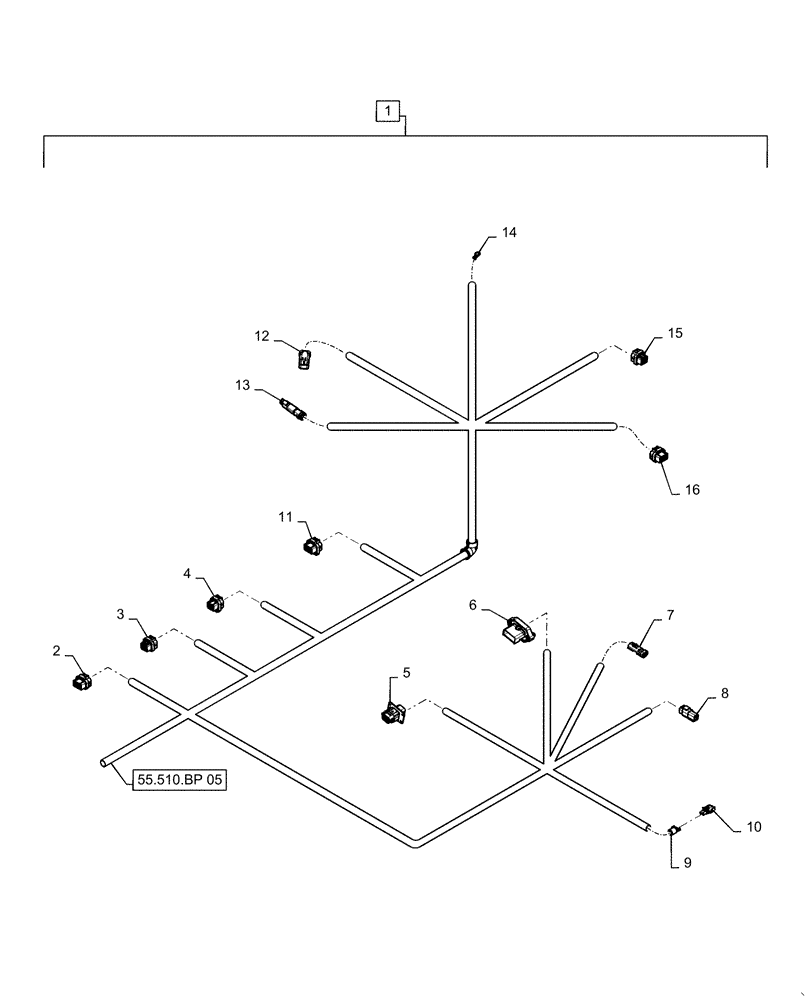

Схема запчастей Case IH MAGNUM 280 - (55.510.BP[16]) - CAB OUTSIDE WIRE HARNESS - ASN - ZERF08100 (55) - ELECTRICAL SYSTEMS
15
8
13
6
12
9
14
7
4
55.510.bp 05
2
11
1
3
5
16
10

Артикул

Название

Примечание

Количество

1

47627444

WIRE HARNESS

Cab Outer, Incl 2 - 16

1шт.

Also Includes Parts on Figure 55.510.BP 05

1шт.

2

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

X-353 to CN2A

1шт.

3

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

X-058 to CN2B

1шт.

4

84130757

ELEC CONNECTOR,Female, 26 Cavities

X-490 to CN3A

1шт.

5

87695891

ELEC CONNECTOR

X-531 Scraper Implement Position

1шт.

6

84574704

ELEC CONNECTOR

X-290 to Auto Guidance Harness

1шт.

7

87382909

WIRE CONNECTOR,Male

X-292 Auto Guidance Harness

1шт.

8

87700107

ELEC CONNECTOR

X-150 Implement Pot

1шт.

9

84279531

WIRE CONNECTOR

X-221 to Trailed Up/Down Implement Switch Connector

1шт.

10

87692855

CONTACT HOUSING,Male, 2 Cavities

X-221 Trailed Up Down Implement Switch

1шт.

11

84130760

ELEC CONNECTOR,Female, 34 Cavities

X-355, CN3B

1шт.

12

87382919

WIRE CONNECTOR,Male, 6 Cavities

X-448 EDC Link

1шт.

13

84256995

WIRE CONNECTOR

X-338 Backup Alarm Harness

1шт.

14

84122130

TERMINAL

X-2399, #3 RH Rear Cab Outside

1шт.

15

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

X-442, CN4A

1шт.

16

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

X-053, CN4B

1шт.

Выбрано товаров: 17
