Запчасти Case IH MAGNUM 280 (55.510.BP[05]) - VAR - 420010, 420012, 449112, 449058, 449059, 429373, 429374 - WIRE HARNESS, CAB, OUTER - BSN - ZERF08099 (55) - ELECTRICAL SYSTEMS

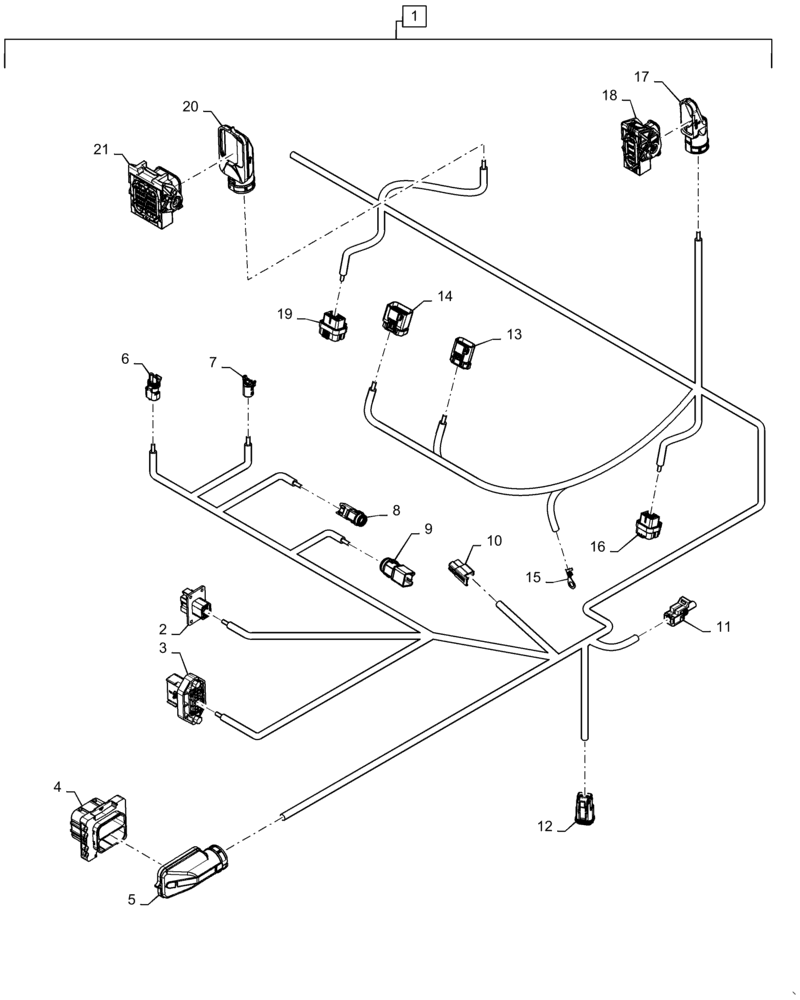

Схема запчастей Case IH MAGNUM 280 - (55.510.BP[05]) - VAR - 420010, 420012, 449112, 449058, 449059, 429373, 429374 - WIRE HARNESS, CAB, OUTER - BSN - ZERF08099 (55) - ELECTRICAL SYSTEMS
8
3
21
1
17
9
16
11
12
19
4
18
13
15
7
14
5
20
2
10
6

Артикул

Название

Примечание

Количество

1

47562538

WIRE HARNESS

Cab, Outside, Incl 2 - 21

1шт.

2

87695891

ELEC CONNECTOR

X-028 to FSUS Harness

1шт.

3

84574704

ELEC CONNECTOR

X-061 to Engine Harness

1шт.

4

84539347

SHELL

X-026 to Transmission Harness Connector

1шт.

5

84254824

ELEC CONNECTOR

X-026 to Transmission Harness

1шт.

6

87697537

ELEC CONNECTOR

X-047 Right Brake Park Sw

1шт.

7

84279531

WIRE CONNECTOR

X-048 Left Brake Park Sw

1шт.

8

84256993

JUNCTION

X-074 to AutoGuidance Lockout Sol

1шт.

9

84256997

WIRE CONNECTOR

X-390 to Steering Solenoid

1шт.

10

87697530

ELEC CONNECTOR

X-090 Pressure Blower

1шт.

11

245480C1

ELEC CONNECTOR,1 Pin

X-149 Italian Trailer Brake

1шт.

12

87695582

ELEC CONNECTOR,Female, 2 Pole

X-067 Pnuematic Air Sw

1шт.

13

87382924

ELEC CONNECTOR,Female, 10 Cavities

X-020 to Fender Harness

1шт.

14

87382916

ELEC CONNECTOR

X-021 to Fender Harness

1шт.

15

84122130

TERMINAL

X-675 #9 RH Rear Cab Wall

1шт.

16

82016219

MULTIPOLE CONNECTOR,Female, 26 Pole

X-350 CNIA

1шт.

17

84544327

SHELL

to X-008 Cab Harness Connector

1шт.

18

84254836

ELEC CONNECTOR

X-008 to Cab Harness

1шт.

19

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

X-351 CN1B

1шт.

20

84539347

SHELL

to X-010 Cab Harness Connector

1шт.

21

84254835

ELEC CONNECTOR

X-010 to Cab Harness

1шт.

Выбрано товаров: 21
