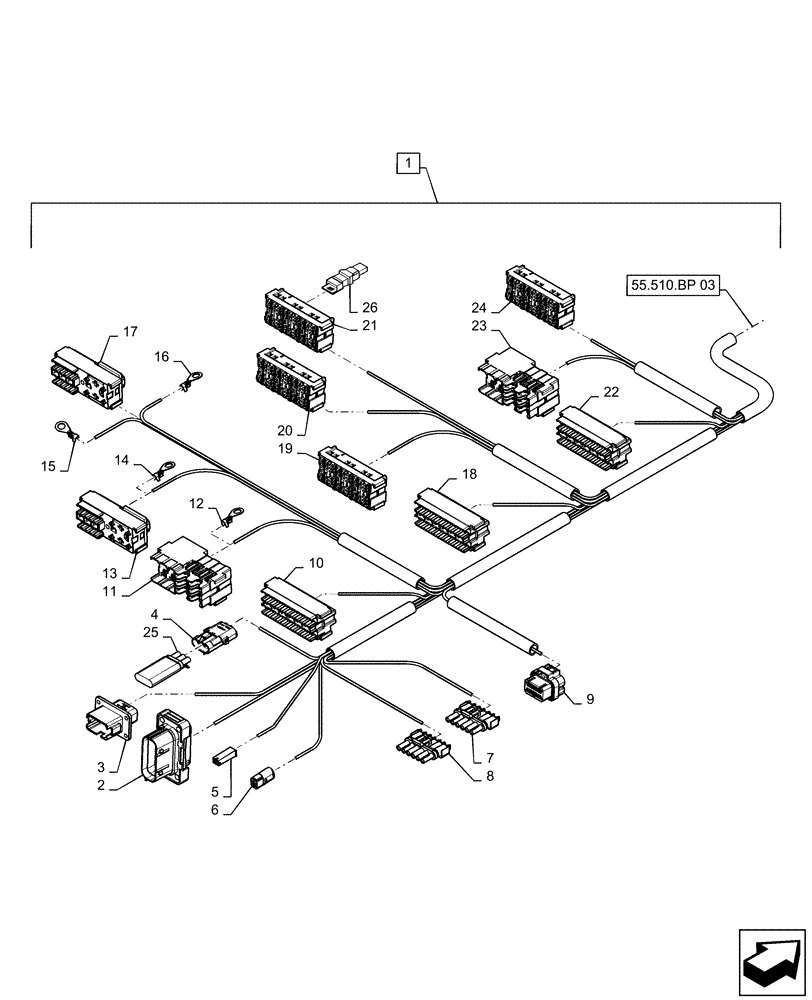

Запчасти Case IH MAGNUM 280 (55.510.BP[02]) - VAR - 420010, 420012, 449112, 449058, 449059, 429373, 429374 - WIRE HARNESS, CAB MAIN - BSN - ZERF08099 (55) - ELECTRICAL SYSTEMS

1

47650192

WIRE HARNESS

Cab Main, Incl 2 - 26

1шт.

2

84254825

ELEC CONNECTOR

32-way, X-025 To Rear Frame Harness

1шт.

2

87696141

TERMINAL

Size 20

26шт.

3

84146300

WIRE CONNECTOR

DT Series 12-way, X-434 To Aux Harness

1шт.

3

87695623

ELEC. TERMINAL PIN

Size 16

8шт.

3

225366C1

ELEC. TERMINAL PIN,Male, Gold, 0.75 - 2.00mm

Size 16

1шт.

3

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge Lock 12-way

1шт.

4

87692858

ELEC CONNECTOR,Male

Weather-Pack 3-way, X-857 Diode Holder

1шт.

4

87692880

CABLE TERMINAL

Weather-Pack Male I

1шт.

4

87692882

ELEC. TERMINAL PIN

Weather-Pack Male

1шт.

5

87679485

ELEC CONNECTOR

Posi-Lock .250 1-way, X-601 Handbrake Switch

1шт.

5

87691548

TERMINAL

Posi-Lock

1шт.

6

82867472

WIRE CONNECTOR,Female

5-way, X-600 Handbrake

1шт.

6

87717508

TERMINAL

Female

4шт.

7

87039236

ELEC CONNECTOR

Weather-Pack 6-way, X-207 Egress Diode Pack I

1шт.

7

87692880

CABLE TERMINAL

Weather-Pack Male I

3шт.

7

87692856

CABLE TERMINAL

Weather-Pack Female

1шт.

8

87039236

ELEC CONNECTOR

Weather-Pack 6-way, X-379 Egress Diode Pack II

1шт.

8

87692880

CABLE TERMINAL

Weather-Pack Male I

4шт.

8

87692856

CABLE TERMINAL

Weather-Pack Female

1шт.

8

87692882

ELEC. TERMINAL PIN

Weather-Pack Male

1шт.

9

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

Superseal 1.0 34-way, X-282 TECU

1шт.

9

82017048

CABLE TERMINAL

Superseal 1.0

15шт.

9

87410950

ELEC. TERMINAL PIN,Female

Superseal 1.0

3шт.

10

87733581

FUSE BOX

Minival Module 40-way, X-263 Fuse Block

1шт.

10

47125752

CABLE TERMINAL

Mini F280

19шт.

10

84127679

TERMINAL

Mini F280

7шт.

10

84127682

ELEC CONNECTOR

Mini F280 Female

4шт.

11

87733597

FUSE BOX

Maxival/Unival Module 18-way, X-260 Fuse Block

1шт.

11

84164991

TERMINAL CONNECTOR,Female, 2 - 3 mm2

Uni F630

10шт.

11

19205994

ELEC. TERMINAL PIN

F800

4шт.

11

5173274

CABLE TERMINAL

F800

2шт.

11

84207857

LOCK

Secondary Lock F800

1шт.

12

84138836

TERMINAL

M6 Ring, X-006C Power Stud Red Terminal

1шт.

13

47127676

FUSE HOLDER

Minival/Maxirelay Module, X-239 Fuse Block

1шт.

13

84127679

TERMINAL

Mini F280

6шт.

13

47125752

CABLE TERMINAL

Mini F280

6шт.

13

84547084

TERMINAL

F950 Female

2шт.

13

47125753

CABLE TERMINAL

Mini F280

2шт.

13

47125757

CABLE TERMINAL

F630

2шт.

14

NSS

NOT SOLD SEPARAT

TERMINAL M10 Ring, X-001 Cab Power Stud, Incl in 1

1шт.

15

84138836

TERMINAL

M6 Ring, X-006B ECU Power Yellow Terminal

1шт.

16

84138836

TERMINAL

M6 Ring, X-006A High Power Green Terminal

1шт.

17

87733587

ELEC CONNECTOR

Mini/Maxi Relay Module 9-way, X-293 ISO Low/High Relay Holder

1шт.

17

84247613

TERMINAL CONNECTOR,Tin, 0.50 - 1.00mm

JPT Receptacle

4шт.

17

84164962

TERMINAL

F950 Female

2шт.

17

10324990

TERMINAL

JPT Receptacle

2шт.

18

87733581

FUSE BOX

Minival Module 40-way, X-045 Fuse Block

1шт.

18

47125752

CABLE TERMINAL

Mini F280

17шт.

18

84127679

TERMINAL

Mini F280

10шт.

18

84127682

ELEC CONNECTOR

Mini F280 Female

3шт.

19

84526304

MODULE

Microrelay Module 30-way, X-042 Relay Block

1шт.

19

84491251

TERMINAL

F630E Female 6.3 x 0.8mm

8шт.

19

84529032

TERMINAL

F480E Female 4.8 x 0.8mm

7шт.

19

84491250

TERMINAL

F630E Female 6.3 x 0.8mm

4шт.

20

84526304

MODULE

Microrelay Module 30-way, X-265 Relay Block

1шт.

20

84529032

TERMINAL

F480E Female 4.8 x 0.8mm

8шт.

20

84491251

TERMINAL

F630E Female 6.3 x 0.8mm

5шт.

20

84491250

TERMINAL

F630E Female 6.3 x 0.8mm

5шт.

21

84526304

MODULE

Microrelay Module 30-way, X-256 Relay Block

1шт.

21

84491250

TERMINAL

F630E Female 6.3 x 0.8mm

9шт.

21

84529032

TERMINAL

F480E Female 4.8 x 0.8mm

8шт.

21

84491251

TERMINAL

F630E Female 6.3 x 0.8mm

3шт.

21

84546216

TERMINAL

F480E Female 4.8 x 0.8mm

1шт.

22

87733581

FUSE BOX

Minival Module 40-way, X-262 Fuse Block

1шт.

22

47125752

CABLE TERMINAL

Mini F280

19шт.

22

84127679

TERMINAL

Mini F280

9шт.

22

84127682

ELEC CONNECTOR

Mini F280 Female

5шт.

23

87733597

FUSE BOX

Maxival/Unival Module 18-way, X-240 Fuse Block

1шт.

23

84164991

TERMINAL CONNECTOR,Female, 2 - 3 mm2

Uni F630

8шт.

23

84207857

LOCK

Secondary Lock F800

1шт.

24

84526304

MODULE

Microrelay Module 30-way,X-264 Relay Block

1шт.

24

84491251

TERMINAL

F630E Female 6.3 x 0.8mm

8шт.

24

84529032

TERMINAL

F480E Female 4.8 x 0.8mm

6шт.

24

84491250

TERMINAL

F630E Female 6.3 x 0.8mm

8шт.

25

A187874

MODULE

Diode

1шт.

26

113699A1

RECTIFIER

Inline Rectifier, 12V 1A

1шт.
