Запчасти Case IH MAGNUM 280 (55.404.BS[11]) - 360° LED LIGHTING - ASN ZERF08100 (55) - ELECTRICAL SYSTEMS

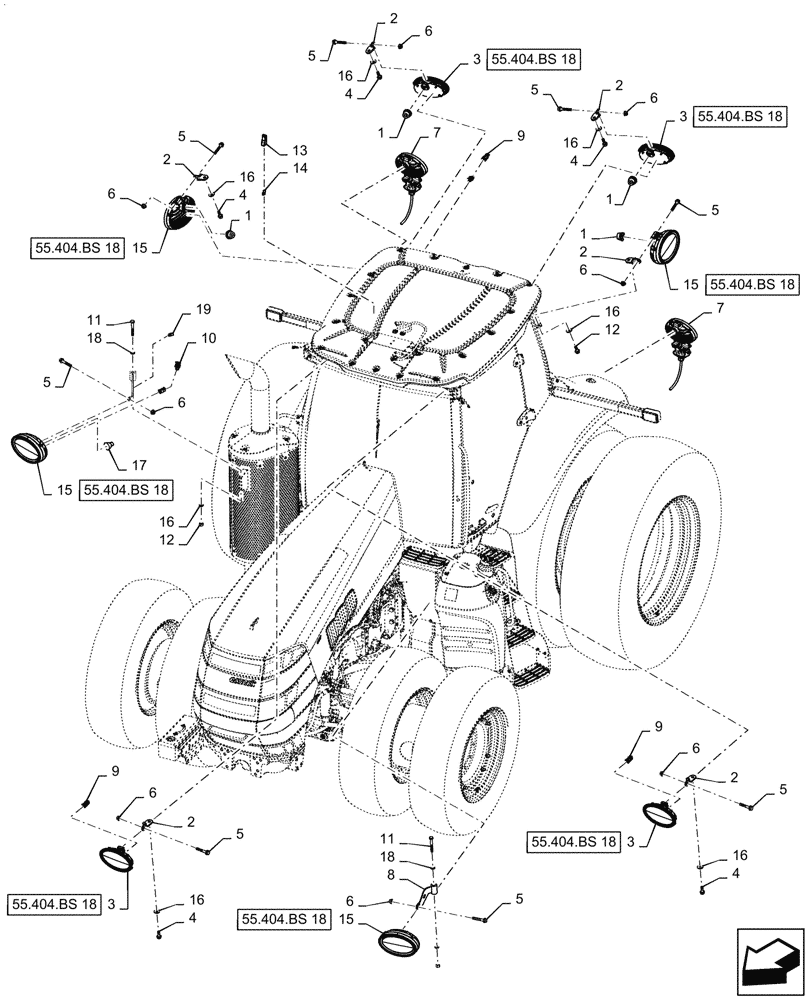

Схема запчастей Case IH MAGNUM 280 - (55.404.BS[11]) - 360° LED LIGHTING - ASN ZERF08100 (55) - ELECTRICAL SYSTEMS
6
8
5
55.404.bs 18
2
5
6
2
4
6
18
1
6
12
1
16
5
16
55.404.bs 18
11
6
4
10
55.404.bs 18
6
55.404.bs 18
2
4
55.404.bs 18
16
6
18
5
3
5
13
1
3
55.404.bs 18
15
2
11
9
4
55.404.bs 18
14
15
15
4
7
2
16
7
19
9
16
16
12
9
16
1
5
2
17
5
3
15
6
55.404.bs 18
3
5

Артикул

Название

Примечание

Количество

1

182045A1

GROMMET

.57mm OD x .394mm ID

6шт.

2

47638870

BRACKET

Roof LED Light

6шт.

3

47669665

WORK LAMP

Oval, 20W, Flood

4шт.

4

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

6шт.

5

844-8050

BOLT,M8 x 1.25 x 50mm, Cl 8.8

8шт.

6

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

7

47634610

WORK LAMP

Oval, 72W, Wide Flood

2шт.

8

47674145

BRACKET

RH LED Lamp Mount

1шт.

9

47708460

WIRE HARNESS

LED Light Jumper

4шт.

10

47715953

WIRE HARNESS

LED Light Jumper

1шт.

11

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

13

225315C1

ELEC CONNECTOR,Male, 2 Pin

2шт.

14

225318C1

ELEC CONNECTOR,2 Pin

2шт.

15

47683634

WORK LAMP

Oval, 30w, Flood

4шт.

16

11198179

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

6шт.

17

47674144

BRACKET

LH LED Light Mount

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

19

14560087

CABLE TIE,103mm, Black

103mm X 2.55mm

1шт.

Выбрано товаров: 19
