Запчасти Case IH MAGNUM 280 (55.404.BS[09]) - HALOGEN SIGNAL LIGHTS - ASN ZERF08100 (55) - ELECTRICAL SYSTEMS

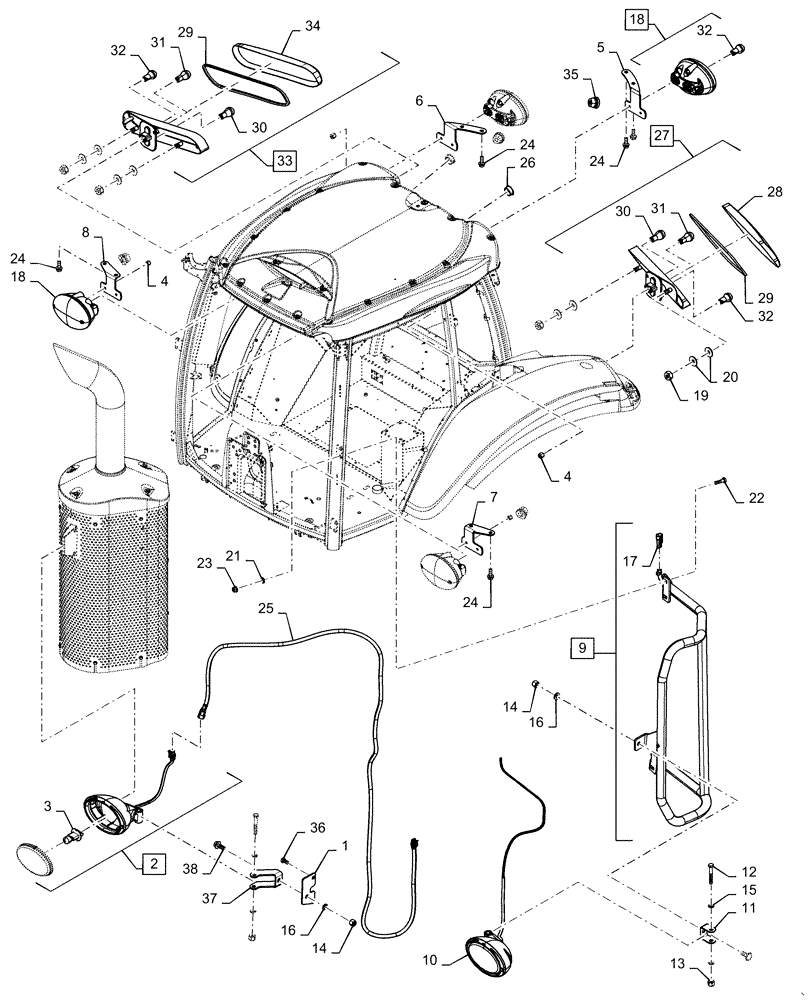

Схема запчастей Case IH MAGNUM 280 - (55.404.BS[09]) - HALOGEN SIGNAL LIGHTS - ASN ZERF08100 (55) - ELECTRICAL SYSTEMS
37
28
22
24
1
23
24
14
36
24
33
31
8
32
29
20
18
38
18
15
2
26
32
17
27
35
24
30
7
14
30
11
5
16
10
13
6
3
31
16
12
25
32
29
19
9
21
34
4
4

Артикул

Название

Примечание

Количество

1

47501534

BRACKET

RH Worklight Mounting

1шт.

2

84269973

WORK LAMP,Halogen, 12V, 55W, Clear

RH Oval Flood Incl 3

1шт.

3

1312210C2

BULB,Halogen H3, 12V, 55W

Halogen H3 12V 55W

1шт.

4

832-10405

NUT,M5 x .8, Cl 8

8шт.

5

47638860

BRACKET

Signal Lamp LH Rear

1шт.

6

47638861

BRACKET

Signal Lamp RH Rear

1шт.

7

47638862

BRACKET

Signal Lamp LH Front

1шт.

8

47638863

BRACKET

Signal Lamp RH Front

1шт.

9

47674151

HANDRAIL

LH Grab 1 Lamp Option Incl 17

1шт.

10

47435702

WORK LAMP

LH Oval Flood No Connector

1шт.

11

84295608

BRACKET

Light Mount

1шт.

12

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

16

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

17

87687244

ELEC CONNECTOR

2W Tab Housing

1шт.

18

84269970

LAMP

Turn, Roof Oval Incl 32

4шт.

19

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

20

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

8шт.

21

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

22

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

23

87681210

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

24

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

8шт.

25

47674765

WIRE HARNESS

Harness, Wire, RH Front Worklight

1шт.

26

353-411

PLUG,Dome, 1.000" hole, Nylon

2шт.

27

82026300

TAIL LAMP,12V, 21W, Amber/Red

Rear Combination Lamp Rh Incl 28 - 32

1шт.

28

87357815

LENS

Rear Combination Lamp LH

1шт.

29

87357827

SEAL

Rear Combination Lamps

2шт.

30

529068

BULB,#1156, 12V, 21W

2шт.

31

14144690

BULB,P21/5W, 12V, 21/5W

2шт.

32

14148090

BULB,PY21W, 12V, 21W

2шт.

33

82026301

TAIL LAMP,12V, 21W, Amber/Red

Incl 29 - 32, 34

1шт.

34

87357816

LENS

Rear Combination Lamp RH

1шт.

35

182045A1

GROMMET

.57" OD X .394" ID

4шт.

36

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

37

47730833

BRACKET

RH Halogen Light Mount

1шт.

38

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

Bolt, Flange

1шт.

Выбрано товаров: 38
