Запчасти Case IH MAGNUM 280 (55.404.BS[02]) - WORK LIGHT, HOOD, CENTER - HID (55) - ELECTRICAL SYSTEMS

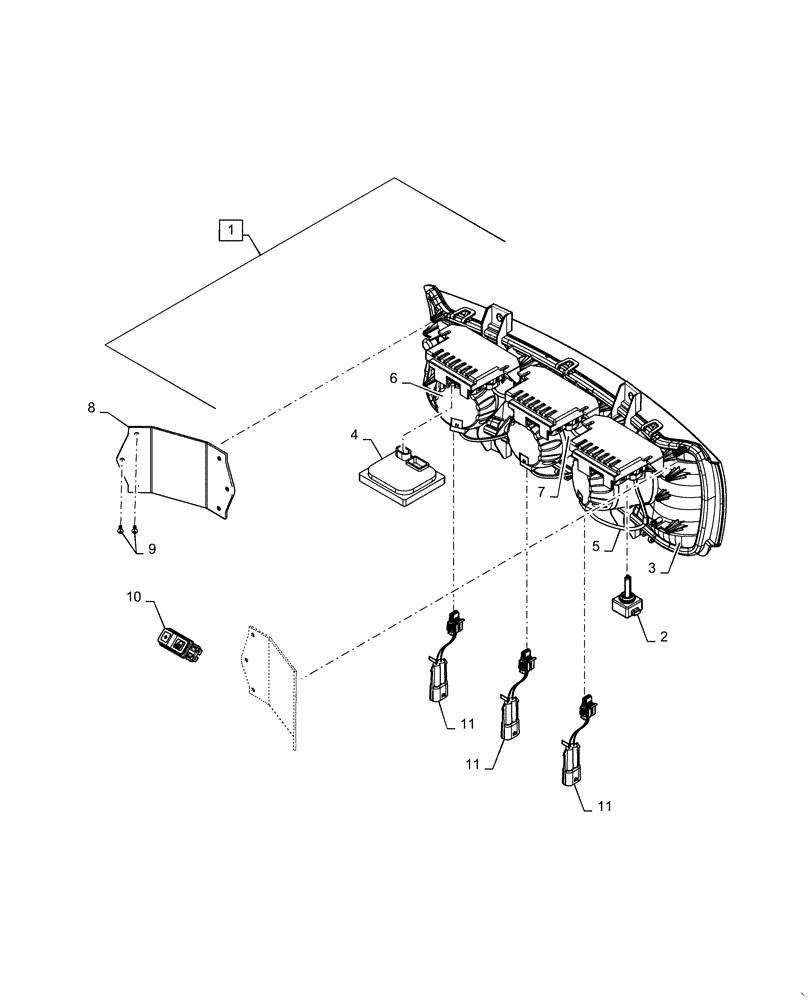

Схема запчастей Case IH MAGNUM 280 - (55.404.BS[02]) - WORK LIGHT, HOOD, CENTER - HID (55) - ELECTRICAL SYSTEMS
3
1
4
8
11
6
7
9
5
11
11
2
10

Артикул

Название

Примечание

Количество

1

87455677

WORK LAMP

Incl 2 - 7

1шт.

2

84607408

BULB,HID, 12V, 35W

HID D1

3шт.

3

47411219

HEADLAMP,HID, 12V, 35W, Clear

Housing

1шт.

4

87388468

BALLAST

HID Ballast

3шт.

5

87573744

WIRE HARNESS,H.I.D.

MX HID Ballast to HID Bulb

3шт.

6

87316350

COVER

Bulb Cover

3шт.

7

87328621

LAMP

Center Spot

1шт.

8

84346306

BRACKET

Front Headlight Mounting

2шт.

9

760-17113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

12шт.

10

87565185

SWITCH

Rocker, Center HID Spot On/Off

1шт.

11

87535841

WIRE HARNESS,Halogen

Ballast to Halogen Lamp

3шт.

Выбрано товаров: 11
