Запчасти Case IH MAGNUM 280 (55.404.AQ[06]) - HEADLIGHT, HIGH MOUNT, LH DIP (55) - ELECTRICAL SYSTEMS

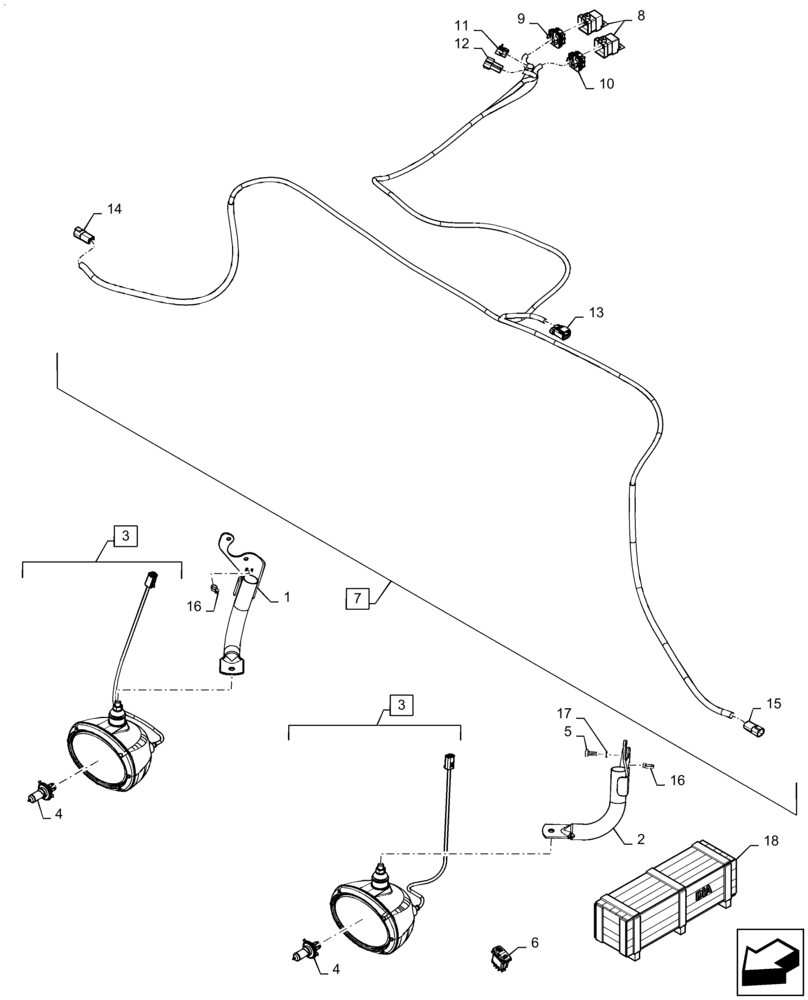

Схема запчастей Case IH MAGNUM 280 - (55.404.AQ[06]) - HEADLIGHT, HIGH MOUNT, LH DIP (55) - ELECTRICAL SYSTEMS
4
2
16
7
3
4
18
12
10
15
5
8
13
11
3
1
17
14
6
9
16

Артикул

Название

Примечание

Количество

1

47925237

BRACKET

RH Front Hitch Headlight Mount

1шт.

2

47925235

BRACKET

LH Front Hitch Headlight Mount

1шт.

3

47786912

HEADLAMP

LH Dip, Incl 4

2шт.

4

87283179

BULB,H4, 12V, 60/55W

2шт.

5

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

6

84257764

SWITCH

Auxiliary Headlight

1шт.

7

84546342

WIRE HARNESS

Front Hitch Headlight, Incl 8 - 15

1шт.

8

84179509

RELAY

12V Miniature

2шт.

9

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

X-208 Low Beam Relay

1шт.

9

87680656

CONTACT

2шт.

9

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

2шт.

9

87705088

WEDGE

Secondary Lock, Green

1шт.

9

87686742

PLUG

1шт.

10

87697770

MULTIPOLE CONNECTOR,Female, 5 Pole

X-209 High Beam Relay

1шт.

10

87680656

CONTACT

2шт.

10

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

2шт.

10

87705088

WEDGE

Secondary Lock, Green

1шт.

10

87686742

PLUG

1шт.

11

87697646

ELEC CONNECTOR

X-091A To Shelf Harness

1шт.

11

87693308

CONNECTION,ELECTRIC

2шт.

11

225267C1

TERMINAL CONNECTOR

1шт.

11

87705093

RETAINER

Secondary Lock, Gray

1шт.

12

227729A1

CONNECTOR, ELEC

X-091 To Roof Harness

1шт.

12

87693337

TERMINAL CONNECTOR

2шт.

12

87693336

TERMINAL

1шт.

12

227731A1

CONNECTOR, ELEC

Secondary Lock, Gray

1шт.

13

87382910

WIRE CONNECTOR,Female, 3 Cavities

X-2094 To Roof Harness

1шт.

13

84395356

TERMINAL,Female, 2.8mm, 18-20

3шт.

14

87694154

CONTACT HOUSING,Male, 4 Pole

X-2095 Hitch RH High Beam

1шт.

14

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

3шт.

14

84068583

PLUG,12 - 16 Ga, White

1шт.

15

87694154

CONTACT HOUSING,Male, 4 Pole

X-2096 Hitch LH High Beam

1шт.

15

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

3шт.

15

84068583

PLUG,12 - 16 Ga, White

1шт.

16

86566989

CABLE TIE,208mm L

2шт.

17

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

18

47746553

DIA KIT, TRACTOR

High Mount Road Lights, LH Dip, Incl 1 - 17

1шт.

Выбрано товаров: 37
